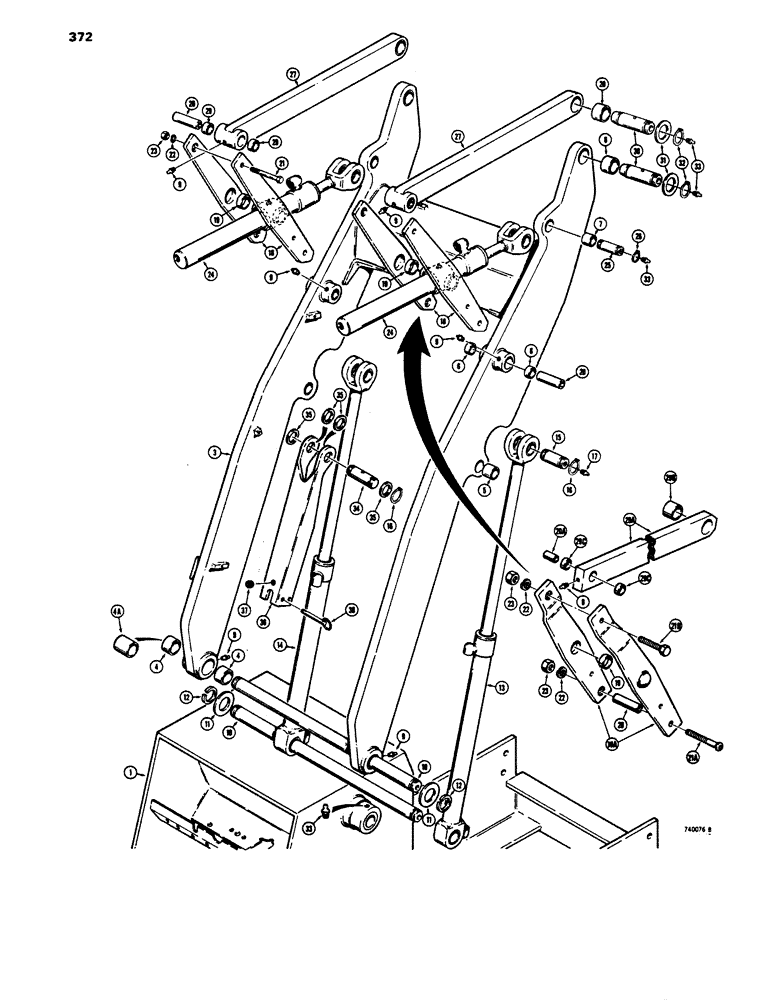

Запчасти Case 680E (372) - LOADER LIFT FRAME AND RELATED PARTS (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - see page 423 for proper parts and bushings, Includes Ref. 4 - 8

1шт.

3

L57111

ARM/LIFTING DEVICE

FRAME ASSEMBLY - loader lift, used before tractor sn. 9114538, for service order L59852 frame and L59854 return-to-dig rod, see figure 384, Includes Ref. 4 - 8

1шт.

3

L59852

ARM

FRAME ASSEMBLY - loader lift, tractor sn. 9114538 thru 9118631, Includes Ref. 4 - 8

1шт.

3

L71121

FRAME ASSEMBLY - loader lift, tractor sn. 9118631 thru 9124788 with dual bushings at chassis pivot pin, Includes Ref. 4 - 8

1шт.

3

L73721

ARM ASSY.

FRAME ASSEMBLY - loader lift, tractor sn. 9118631 thru 9124788 with single bushings at chassis pivot pin, Includes Ref. 4 - 8

1шт.

3

L79371

ARM ASSY.

FRAME ASSEMBLY - loader lift, used on tractor sn. 9124788 and after, Includes Ref. 4 - 8

1шт.

4

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- lift frame at chassis, models with dual bushings

4шт.

4a

L79365

BUSHING

- lift frame at chassis, models with single bushings

2шт.

5

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- lift frame at lift cylinders

2шт.

6

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- lift frame at bucket linkage

4шт.

7

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- lift frame at bucket cylinders

2шт.

8

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift frame at bucket

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4-6шт.

10

L57362

SHAFT

PIN - pivot, lift arm and lift, Serial Range: cylinders-chassis

2шт.

11

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

4шт.

12

D34664

RING

- pin retaining

4шт.

13

REF

INSTRUCTION

CYLINDER - R.H. lift, see figure 336

1шт.

14

REF

INSTRUCTION

CYLINDER - L.H. lift, see figure 336

1шт.

15

D34658

PIN,44.45mm OD x 101.6mm L

- mounting, lift cylinder to lift frame, see Ref. 34

1-2шт.

16

D25280

SNAP RING,#175, Ext

RING snap, , pin #175, Ext

4шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

18

L55958

CRANK LEVER

BELLCRANK ASSEMBLY - straight type, includes bushings, Includes Ref. 19

4шт.

18a

L74595

BELLCRANK ASSEMBLY - offset type, includes bushings, Includes Ref. 19

4шт.

19

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- bellcrank at cylinder

1шт.

20

L57197

AXLE PIN

SPACER - bellcrank

2-4шт.

L57197 - Description should read "pin"

1шт.

20a

L74594

SPACER

- used with offset bellcranks only

2шт.

L74594 - Description should read "pin".

1шт.

21

26-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 8

HHCS - 3/4" - 10 NC x 6-3/4", grade 8, if used

2-4шт.

21a

164-675

BOLT,Btn Hd, 3/4" - 10 x 6 3/4", Gr 8

- button head, 3/4" - 10 NC x 6-3/4", grade 8, if used

2-4шт.

21b

26-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8

HHCS - 3/4" - 10 NC x 4-1/4", grade 8, used with offset bellcranks at bucket link

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

23

129-138

NUT,3/4"-10, G8

4шт.

24

REF

INSTRUCTION

CYLINDER - bucket tilt, see figure 340 or 342

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder to lift frame

2шт.

26

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

27

L55962

DRAG LINK

LINK ASSEMBLY - bucket, used with straight bellcranks, Includes Ref. 28 and 29

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- link, at bucket

1шт.

29

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, at bellcrank

2шт.

29a

L78551

LINK ASSY.

LINK ASSEMBLY - bucket, used with offset bellcranks, Includes Ref. 29B and 29C

2шт.

29b

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- link, at bucket

1шт.

29c

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- link, at bellcrank

2шт.

30

L55737

AXLE PIN

PIN - bucket link and lift, Serial Range: arm-bucket

4шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- flat

8шт.

32

D26919

SNAP RING,#200, Ext

RING snap, , pin #200, Ext

8шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

8шт.

34

L78791

AXLE PIN

PIN - L.H. lift cylinder mounting, special parts used with safety strut

1шт.

35

195-2151

WASHER,1 13/16" x 2 1/2" x .065"

- flat, special parts used with safety strut

4шт.

36

L78530

STRUT

- safety, special parts used with safety strut

1шт.

37

D42106

GROMMET

- rubber, special parts used with safety strut

1шт.

38

L78801

AXLE PIN

PIN - hitch, special parts used with safety strut

1шт.
