Запчасти Case 680E (114) - BACKUP ALARM, LATE PRODUCTION (55) - ELECTRICAL SYSTEMS

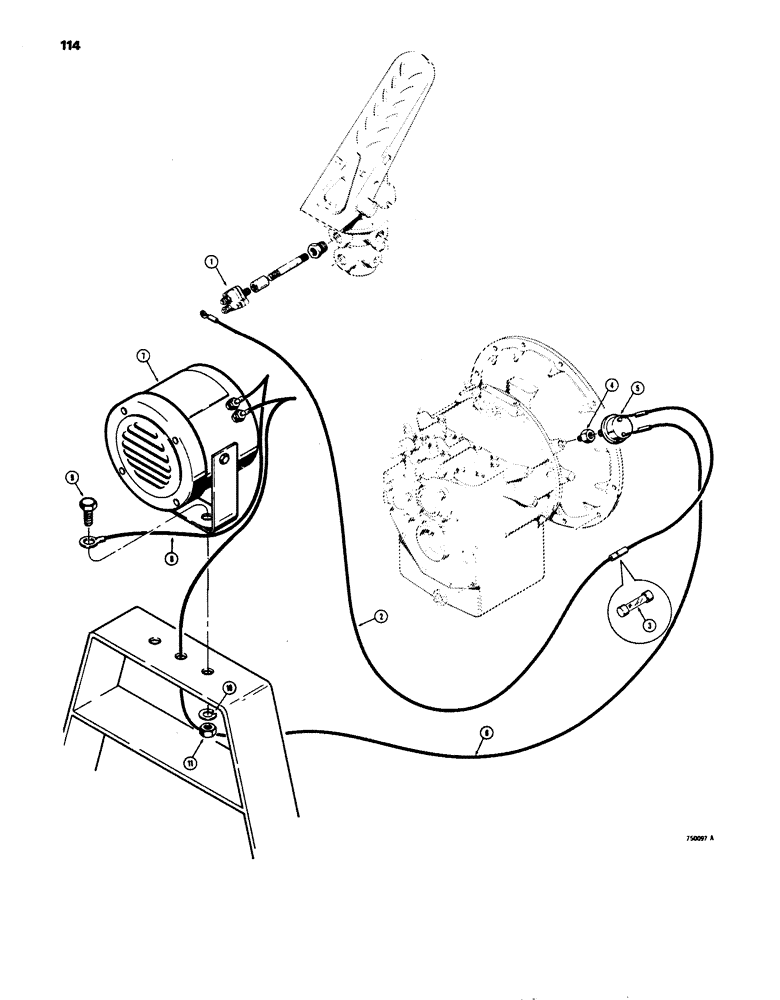

Схема запчастей Case 680E - (114) - BACKUP ALARM, LATE PRODUCTION (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L47989

SWITCH

- stop light

1шт.

2

L79089

ELECTRICAL WIRE

WIRE - jumper, stop light switch to pressure switch, pink- white color

1шт.

3

223-10

FUSE,10 Amp, Type 3AG

- protective, 10 amp. (3AG10)

1шт.

4

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4" NPT to 1/8" NPT

1шт.

5

L57459

SWITCH

- pressure, alarm

1шт.

6

L79067

WIRE - pressure, Serial Range: switch-alarm

1шт.

7

L70498

ALARM

ASSEMBLY - backup

1шт.

8

L59563

ELECTRICAL WIRE

WIRE - alarm ground

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

Выбрано товаров: 11
