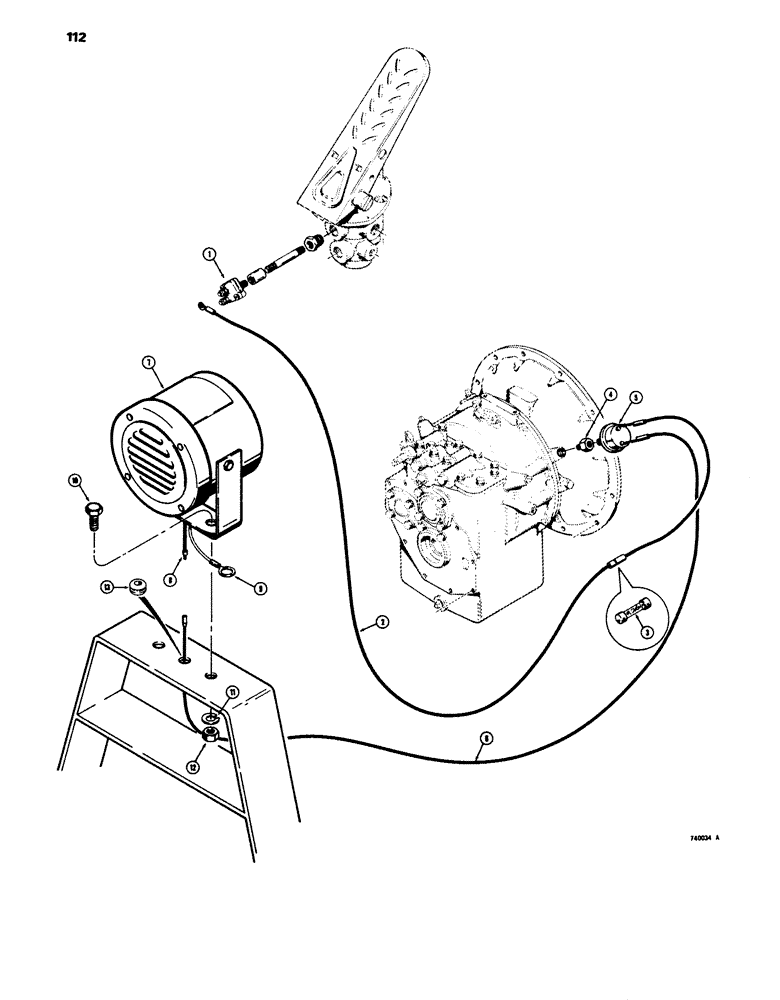

Запчасти Case 680E (112) - BACKUP ALARM, EARLY PRODUCTION (55) - ELECTRICAL SYSTEMS

1

L47989

SWITCH

- stop light

1шт.

2

L57475

ELECTRICAL WIRE

WIRE - jumper, stop light switch to pressure switch, orange-black color

1шт.

2

L79089

ELECTRICAL WIRE

WIRE - jumper, stop light switch to pressure switch, pink-white color

1шт.

3

223-10

FUSE,10 Amp, Type 3AG

- protective, 10 amp. (3AG10)

1шт.

4

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4" NPT TO 1/8" NPT

1шт.

5

L57459

SWITCH

- pressure, alarm

1шт.

6

L57474

ELECTRICAL WIRE

WIRE - pressure, Serial Range: switch-alarm

1шт.

L57528

ALARM

ASSEMBLY - backup, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ALARM - backup

1шт.

8

R18653

TERMINAL STRIP

CONNECTOR - male bullet

1шт.

9

223-56

TERMINAL CONNECTOR,10 - 12

EYELET - backup alarm

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

13

L13766

GROMMET

- wire

1шт.
