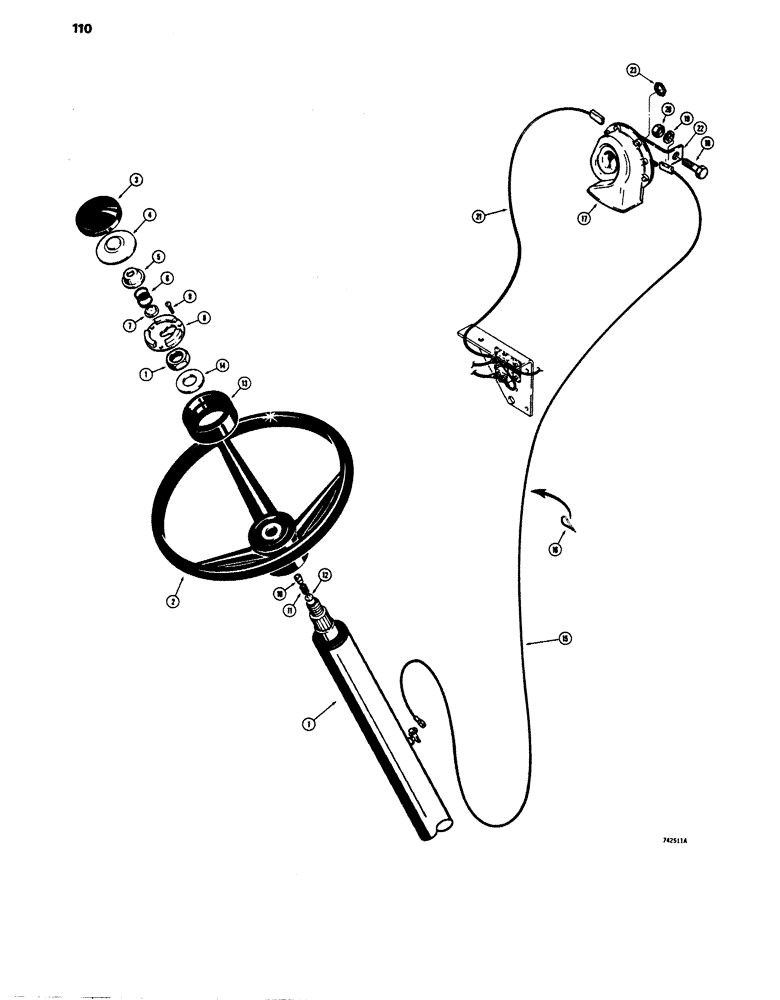

Запчасти Case 680E (110) - ELECTRIC HORN (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

GEAR AND VALVE - steering, parts list figure 124 and 126

1шт.

2

A65544

STEERING WHEEL

1шт.

A16843

BUTTON

ASSEMBLY - horn, Includes: Ref. 3 - 12

1шт.

3

A13088

CAP

COVER - horn button

1шт.

4

A13089

BUTTON

- horn

1шт.

5

A13092

CAP

CUP - contact

1шт.

6

A13091

SPRING

- button

1шт.

7

A13090

CAP

- contact

1шт.

8

A13093

PLATE ASSY.

PLATE - base

1шт.

9

187-321

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW - self-tapping, #8 - 32 NC x 1/2"

3шт.

10

A13058

FERRULE

- insulating

1шт.

11

A13059

SPRING

- contact (Not used on 680E)

1шт.

12

A13057

CUP ASSY.

CONTACT - lower (Not used on 680E)

1шт.

13

L60175

ADAPTER

ADAPTOR - horn button

1шт.

14

195-2099

WASHER,1 1/64" x 2" x .049"

- flat, 7/8", plated

1шт.

15

L70486

WIRE - steering, Serial Range: column-horn

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

TIE - wire mounting

2шт.

17

L10353

HORN

- electric, 24 volt

1шт.

Part of Horn Assembly Kit P/N D77650

1шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 3/8" - 16 NC x 1-1/4"

1шт.

19

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex., 3/8" - 16 NC

1шт.

21

L70487

WIRE - horn to circuit breaker

1шт.

22

L73799

BRACKET

- horn mounting

1шт.

Part of Horn Assembly Kit P/N D77650

1шт.

23

L30866

LOCK NUT

- horn mounting

1шт.

Part of Horn Assembly Kit P/N D77650

1шт.

D77650

HORN

ASSEMBLY - Includes: Ref. 17, 22 and 23

1шт.
