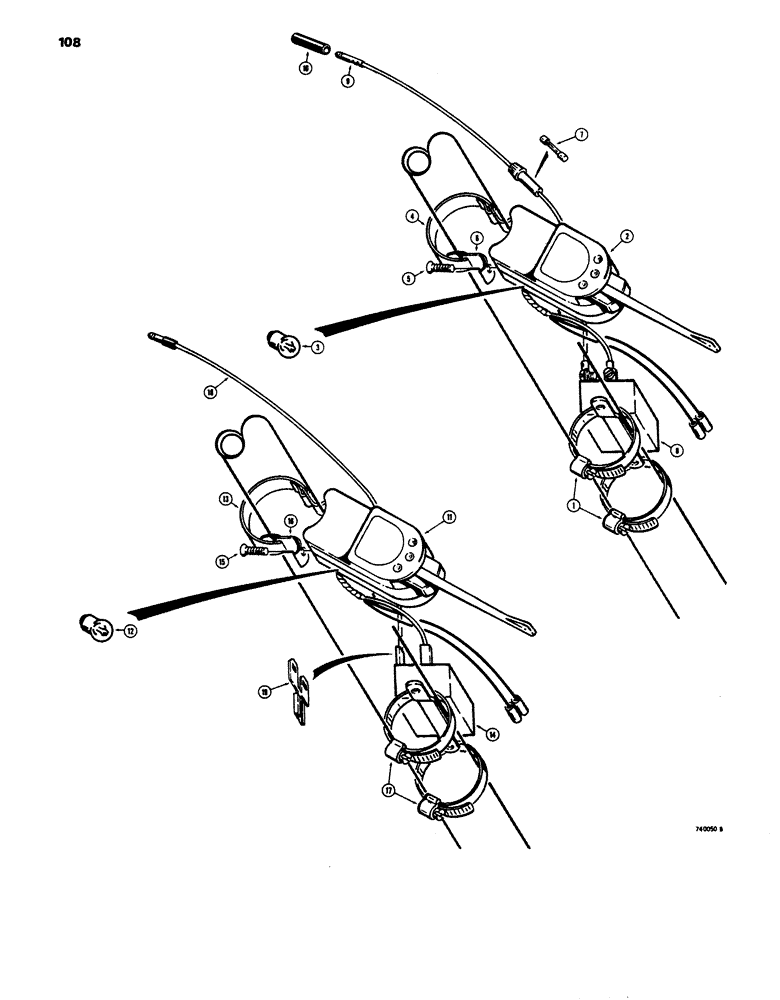

Запчасти Case 680E (108) - ELECTRICAL SYSTEM, TURN SIGNAL AND FLASHER CONTROL, EARLY PRODUCTION (55) - ELECTRICAL SYSTEMS

1

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- flasher switch #28, 1.31/2.25 Type F Worm

2шт.

L52823

SIGNAL

- turn and flasher, use L73667 signal, L59393 wire and F43508 spade, Includes: Ref. 2 - 8

1шт.

L52823 turn signal & flasher - The L59393 wire included as part of this assembly, includes the fuse holder and 6 amp fuse.

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

3

A14928

BULB

- directional indicator, 24 volt (#358)

1шт.

4

L32658

STRAP

- mounting, signal

1шт.

L32659

KIT

- mounting, turn signal, Includes: Ref. 5 and 6

1шт.

5

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine, #8 - 32 NC x 1"

2шт.

6

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

7

223-6

FUSE,6 Amp, Type 3AG

- 6 amp (3AG6)

1шт.

8

L32657

FLASHER UNIT

FLASHER - signal

1шт.

9

L11778

CONNECTOR, ELEC

BULLET - connecting, male

1шт.

10

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

TUBING - protective

1шт.

L73252

SWITCH

SIGNAL KIT - turn and flasher, use L73667 signal, L73672 wire and F43508 spade, late production, Includes: Ref. 11 - 16

1шт.

L73667

SIGNAL

KIT - turn and flasher, late production, Includes: Ref. 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH - turn signal, late production

1шт.

12

A14928

BULB

- direction indicator, 24 volt (#358), late production

1шт.

13

L32658

STRAP

- mounting, signal, late production

1шт.

14

NSS

NOT SOLD SEPARAT

FLASHER - signal (Replaces NSS) (Subs L32657), late production

1шт.

L32659

KIT

- mounting, turn signal, late production, Includes: Ref. 15 and 16

1шт.

15

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine, #8 - 32 NC x 1", late production

2шт.

16

NSS

NOT SOLD SEPARAT

CLIP - strap mounting, late production

2шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- flasher mounting, late production #28, 1.31/2.25 Type F Worm

2шт.

18

L73672

ELECTRICAL WIRE

WIRE - to circuit breaker, L73667 signal, late production

1шт.

19

F43508

SPADE TERMINAL

TERMINAL - spade, L73672 wire, late production

1шт.
