Запчасти Case 680E (104) - ELECTRICAL SYSTEM, LIGHTS, L43743 FRONT LIGHT, L43737 STOP (55) - ELECTRICAL SYSTEMS

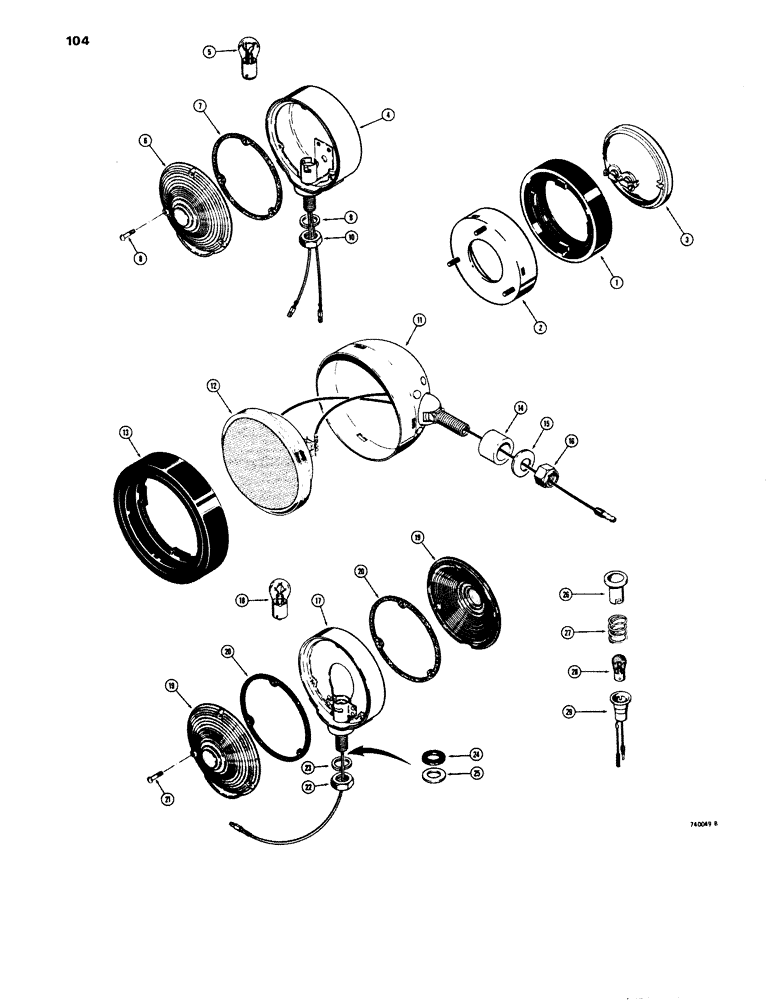

Схема запчастей Case 680E - (104) - ELECTRICAL SYSTEM, LIGHTS, L43743 FRONT LIGHT, L43737 STOP (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

L43743

LIGHT

ASSEMBLY - front, 24 volt, Includes: Ref. 1 - 3

2шт.

1

A25213

RETAINER

- light

1шт.

2

L30510

FRAME

BODY - light (Replaces R17306)

1шт.

3

L10499

LAMP

- sealed beam (#4589)

1шт.

L43737

LIGHT

ASSEMBLY - stop and tail, Includes: Ref. 4 - 10

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

5

L33194

BULB

- light (#1662)

1шт.

L32213

LENS

KIT - replacement

1шт.

6

NSS

NOT SOLD SEPARAT

LENS - red

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

8

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, #6-32 NC x 5/8"

3шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

129-125

NUT,1/2"-20, G5

1шт.

D71193

LAMP BASE

LIGHT ASSEMBLY - rear flood, 24 volt, Includes: Ref. 11 - 16

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

12

A25212

LAMP

- sealed beam (#4593)

1шт.

13

A25213

RETAINER

- light

1шт.

14

D37048

BUSHING

- light pivot

1шт.

15

D37049

WASHER

- special

1шт.

16

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., self lock, 1/2" - 20 NF

1шт.

L43738

INTERIOR LIGHT

LIGHT ASSEMBLY - turn signal and flasher, Includes: Ref. 17 - 23

2шт.

17

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

18

L32257

BULB

- light (#307)

1шт.

L32214

LENS

KIT - replacement, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

LENS - signal light

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

21

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, #6 - 32 NC x 5/8"

3шт.

22

129-125

NUT,1/2"-20, G5

1шт.

23

193-23

LOCK WASHER,Int Tooth, #5

WASHER - lock, 1/2"

1шт.

24

L32256

WASHER

- rubber

1шт.

25

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

L78150

LIGHT

ASSEMBLY - engine warning, backhoe console, with red bulb and clear lens, if used (Replaces L73251), Includes: Ref. 26 - 29

1шт.

R17306 light body - Should be part nbr assy.

1шт.

1 of L78345 lens

1шт.

1 of L30505 spring

1шт.

1 of B50223 bulb

1шт.

1 of NSS socket

1шт.

26

L36002

LENS

AND HOUSING - clear

1шт.

27

L30505

VALVE SPRING

SPRING - light

1шт.

28

45490

LIGHT

BULB - red (#1003R)

1шт.

29

NSS

NOT SOLD SEPARAT

SOCKET - light base

1шт.

L73251

LAMP

LIGHT ASSEMBLY - engine warning, backhoe console, with clear bulb and red lens, if used, Includes: Ref. 26 - 29

1шт.

26

D78345

LENS AND HOUSING - red

1шт.

27

L30505

VALVE SPRING

SPRING - light

1шт.

28

B50223

BULB

- clear (#1003)

1шт.

29

NSS

NOT SOLD SEPARAT

SOCKET - light base

1шт.

Выбрано товаров: 46
