Запчасти Case 680E (102) - ELECTRICAL SYSTEM, DIPPER LIGHT FOR EXTENDABLE DIPPER (55) - ELECTRICAL SYSTEMS

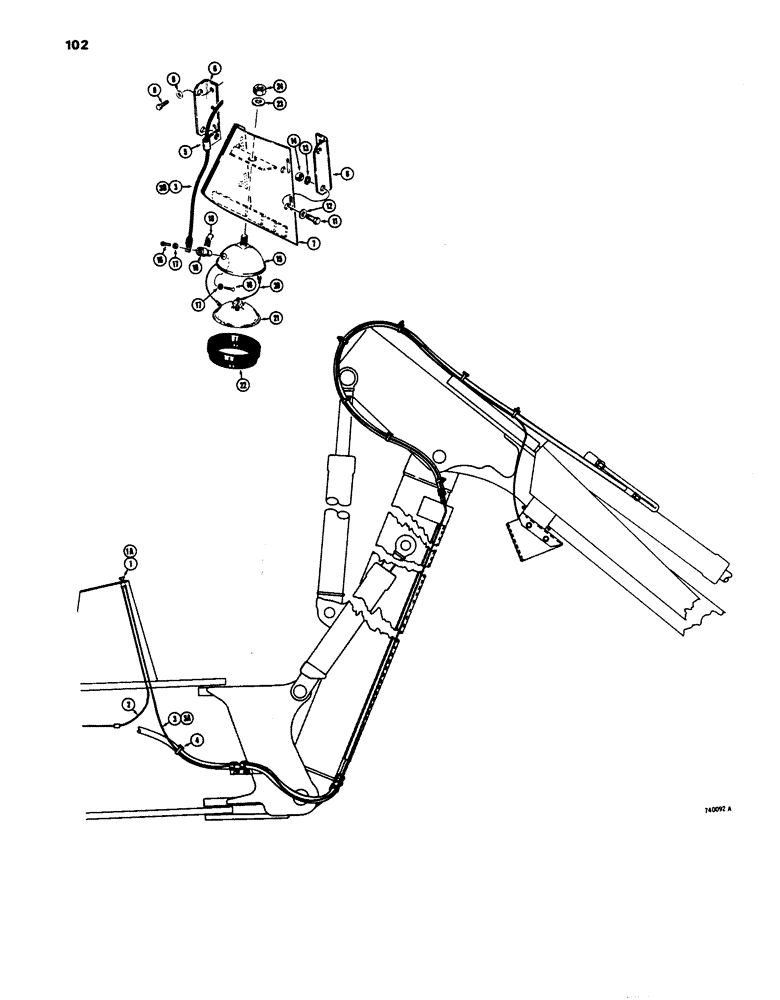

Схема запчастей Case 680E - (102) - ELECTRICAL SYSTEM, DIPPER LIGHT FOR EXTENDABLE DIPPER (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A39887

SWITCH

- dipper light

1шт.

A39887 switch - Knob for this switch is part nbr A137204.

1шт.

1a

A39888

NUT

- 3/8-32, switch mounting

1шт.

2

L73161

ELECTRICAL WIRE

WIRE - rear wiring harness to switch, 36" (914 mm) long

1шт.

3

L55370

WIRE - dipper light, 266" (6756 mm) long, if used, Serial Range: -91222202

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - dipper light, 254" (6451 mm) long, if used, order Refs. 3A and 3B, Start Serial: 91222202

1шт.

3a

L79801

ELECTRICAL WIRE

WIRE - from switch, 28" (711 mm) long, Start Serial: 9122202

1шт.

3b

L100002

ELECTRICAL WIRE

WIRE - to dipper light, 254" (6451 mm) long, Start Serial: 9122201

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire

12шт.

5

51200330

CLAMP

- wire, at dipper light

1шт.

6

L59067

BRACKET

ANGLE - dipper light bracket

2шт.

7

D41427

SHIELD

- dipper light

1шт.

8

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

HHCS - 3/8" - 16 NC x 1-1/2", grade 8

4шт.

9

D41740

WASHER

- special

4шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

5-8

WASHER - flat, 1/2"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

4шт.

L45149

HEADLIGHT

LIGHT ASSEMBLY - dipper arm, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

16

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head, #8-32 NC x 1/4"

2шт.

17

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - external tooth lock, #8

2шт.

18

10927

SPRING

- light

1шт.

19

B50293

TERMINAL CONNECTOR

- light

1шт.

20

A40033

ELECTRICAL WIRE

WIRE - light

1шт.

21

L10499

LAMP

LIGHT - sealed beam, 24 volt (#4589)

1шт.

22

D31441

RETAINER

- light

1шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

24

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock, 1/2" - 13 NC

1шт.

Выбрано товаров: 29
