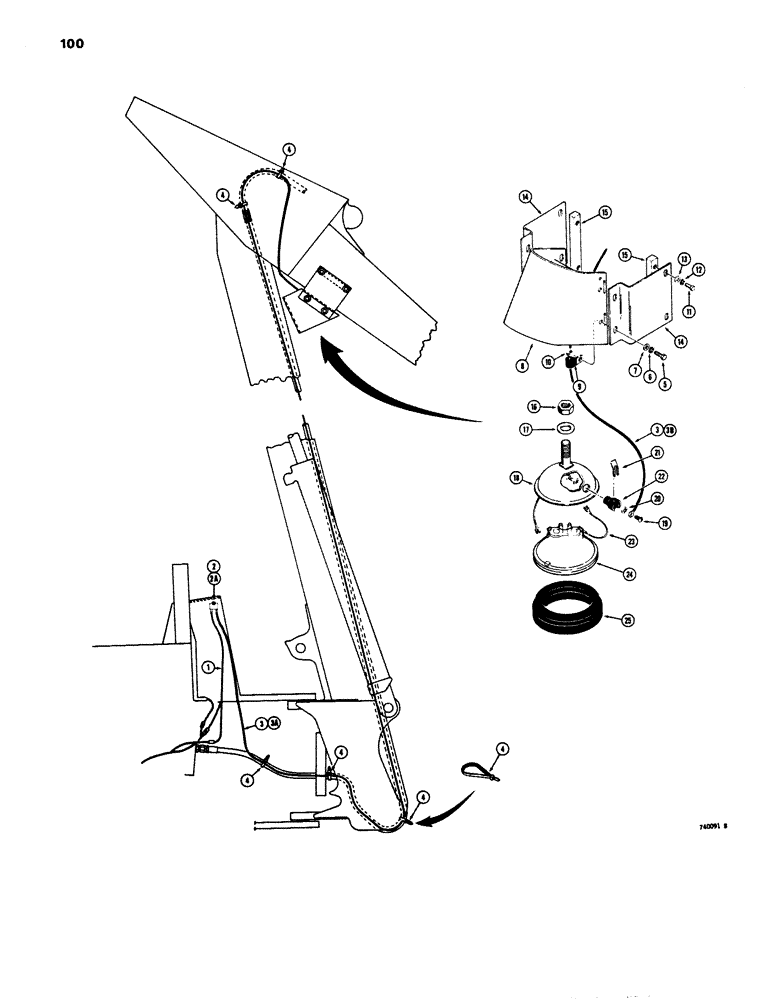

Запчасти Case 680E (100) - ELECTRICAL SYSTEM, DIPPER LIGHT FOR NON-EXTENDABLE DIPPER (55) - ELECTRICAL SYSTEMS

1

L73161M

WIRE - rear harness to dipper light switch, 36" (914 mm) long

1шт.

2

A39887

SWITCH

- dipper light

1шт.

A39887 switch - Knob for this switch is part nbr A137204.

1шт.

2a

A39888

NUT

- 3/8-32, switch mounting

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - switch to dipper light, 185" (4699 mm) long, if used order Refs. 3A and 3B

1шт.

3a

L79801

ELECTRICAL WIRE

WIRE - from switch, 28" (711 mm) long

1шт.

3b

L79986

ELECTRICAL WIRE

WIRE - to dipper light, 209" (5308 mm) long

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, wire retaining

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

95-8

WASHER,1/2"

flat 1/2"

4шт.

8

D41427

SHIELD

- dipper light

1шт.

9

49857

CLAMP

- wire

1шт.

10

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

4шт.

11

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

95-8

WASHER,1/2"

flat 1/2"

4шт.

14

L58510

PLATE ASSY.

PLATE - mounting, dipper lamp

2шт.

15

L50502

BLOCK

- tapped, weld on

2шт.

16

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock. 1/2" - 13 NC

1шт.

17

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

L45149

HEADLIGHT

LAMP ASSEMBLY - dipper arm, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

19

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head, #8-32 NC x 1/4"

2шт.

20

280734

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Ext Tooth, #8

2шт.

21

10927

SPRING

- lamp

1шт.

22

B50293

TERMINAL CONNECTOR

- lamp

1шт.

23

A40033

ELECTRICAL WIRE

WIRE - lamp

1шт.

24

L10499

LAMP

BULB - sealed beam, 24 volt (#4589)

1шт.

25

D31441

RETAINER

- lamp

1шт.
