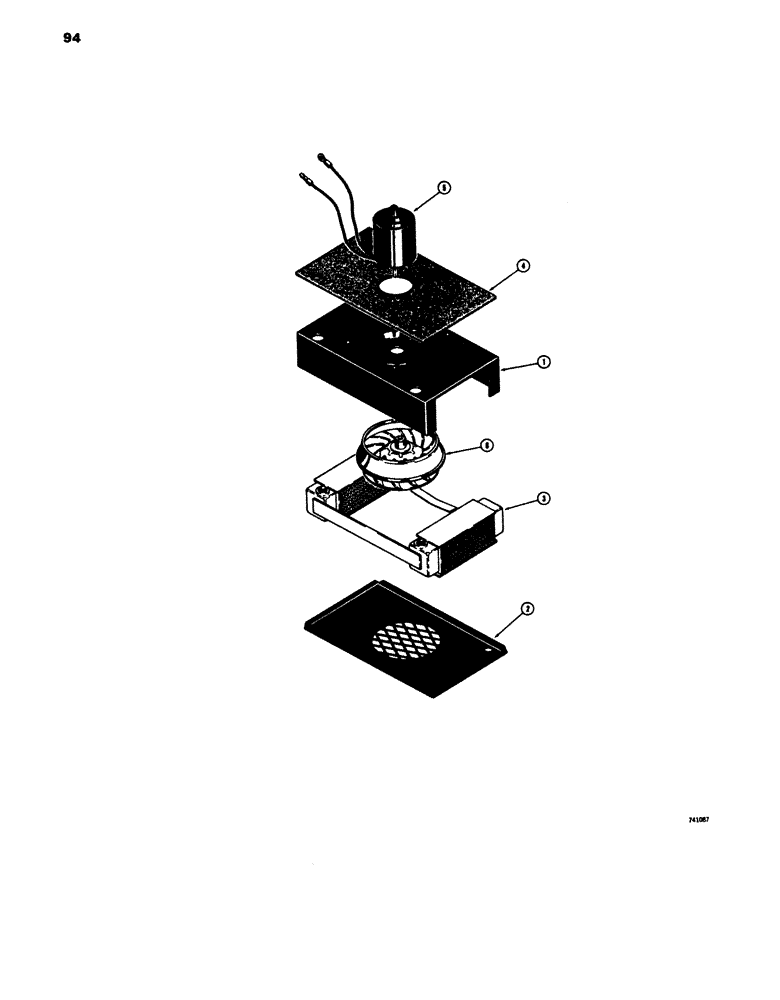

Запчасти Case 680E (094) - ELECTRICAL SYSTEM, CAB HEATER (55) - ELECTRICAL SYSTEMS

D65190

HEATER ASSEMBLY - operator's cab, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - heater

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - heater

1шт.

3

D63393

CORE

- heater

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - heater mounting

1шт.

5

D80671

MOTOR HOUSING

MOTOR ASSEMBLY - heater fan (Replaces D63395)

1шт.

The heater motor must be wired so that the fan rotates clockwise when viewed through intake grill (refer to CE Service Bulletin 11-79).

1шт.

6

D63396

FAN

- heater

1шт.

D63396 heater fan - This is now a blade type fan.

1шт.
