Запчасти Case 680E (092) - ELECTRICAL SYSTEM, CAB HEATER AND DEFROSTER, MODELS WITH SIMS BUILT CAB (55) - ELECTRICAL SYSTEMS

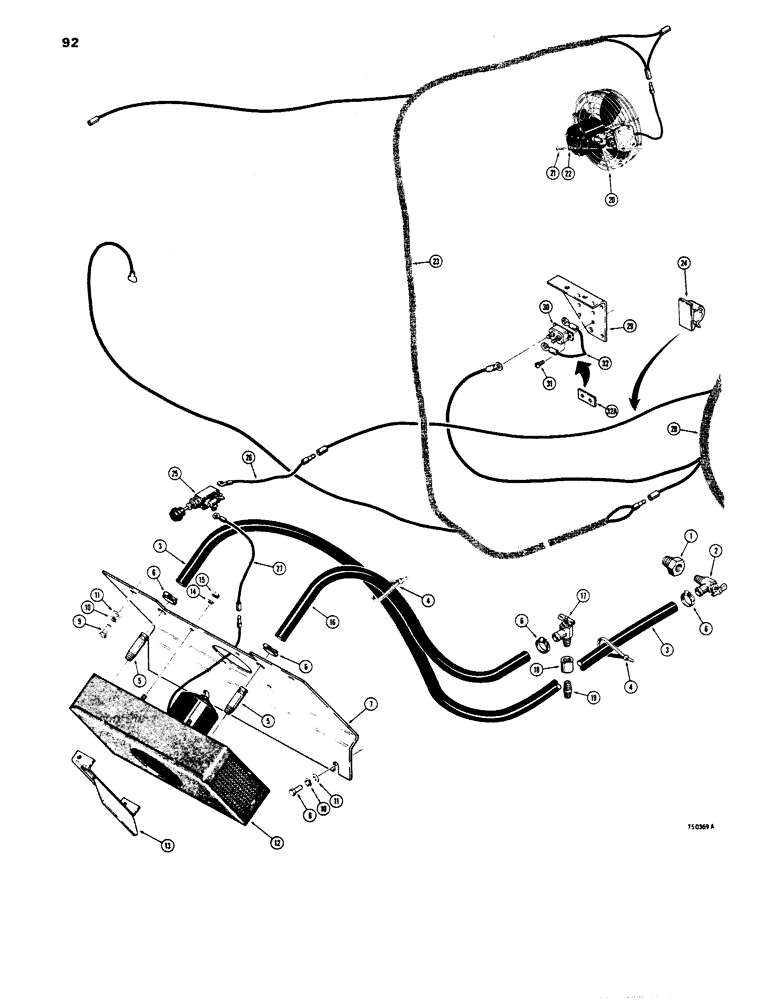

Схема запчастей Case 680E - (092) - ELECTRICAL SYSTEM, CAB HEATER AND DEFROSTER, MODELS WITH SIMS BUILT CAB (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

2

A16764

VALVE

- shutoff

1шт.

3

L78623

HOSE

- heater, 5/8" (15.8 mm) I.D. x 63" (1600 mm) long

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, hose retaining

2шт.

5

D65132

FITTING

NIPPLE - straight, pipe

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

7

L59043

PLATE

- heater mounting

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

12

D65190

HEATER ASSEMBLY - operators cab, figure 94

1шт.

Part of P/N L59025 Heater Kit

1шт.

13

L59280

PLATE - air deflector, if used

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

25-104

NUT,1/4"-20, G5

4шт.

16

A136406

HOSE,0.64" ID x 29.00", SAE 20R3

- Heater return 0.64" ID x 29.00", SAE 20R3

1шт.

17

A16764

VALVE

- water shutoff

1шт.

18

221-337

COUPLING,Pipe, 3/8" NPT

- 3/8" NPT

1шт.

19

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1"

1шт.

Part of P/N L59025 Heater Kit

1шт.

20

L48971

FAN

- defroster, figure 96

1шт.

21

169-90

SCREW - fillister head, #10-24 NC x 5/8"

4шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

23

D70623

HARNESS - cab wiring

1шт.

24

L54606

CLIP

- cab harness

11шт.

25

L33827

SWITCH

- heater motor

1шт.

Part of P/N L59025 Heater Kit

1шт.

26

L71699

ELECTRICAL WIRE

WIRE - heater switch to cab harness

1шт.

27

A59170

ROD

WIRE - heater switch to heater motor

1шт.

28

REF

INSTRUCTION

HARNESS - front wiring, see figure 74

1шт.

29

REF

INSTRUCTION

PLATE - solenoid and circuit breaker mounting, see figure 74 for related parts

1шт.

30

L11342

BREAKER

- circuit, 25 amp

1шт.

30

L11342

BREAKER

- circuit, 25 amp

1шт.

31

187-811

SCREW,Slotted Pan Hd, #6 x 5/16"

- self-tapping

2шт.

32

L70057

ELECTRICAL WIRE

WIRE - jumper, breaker to breaker, if used

1шт.

32a

L74683

BAR

- jumper, breaker to breaker, if used

1шт.

L59025

KIT heater, Includes: Refs. 12, 19 and 25

1шт.
