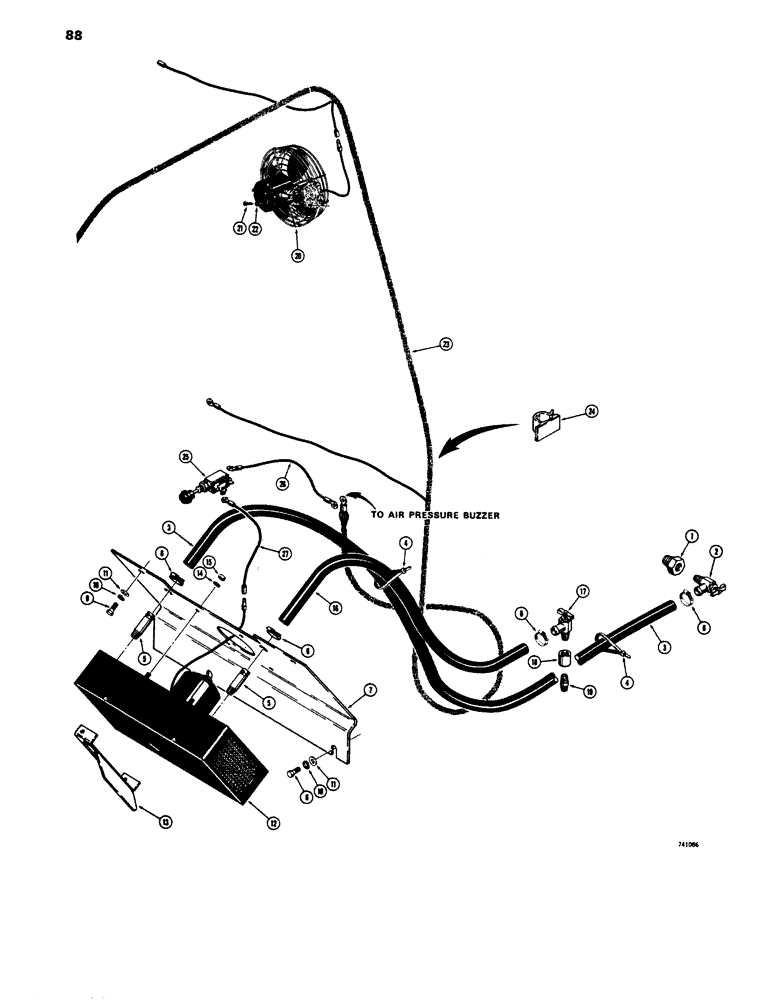

Запчасти Case 680E (088) - ELECTRICAL SYSTEM, CAB HEATER AND DEFROSTER, MODELS WITH CASE BUILT CAB, EARLY PRODUCTION (55) - ELECTRICAL SYSTEMS

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

2

A16764

VALVE

- shut-off

1шт.

3

L78623

HOSE

- heater, 5/8" (15.8 mm) I.D. x 63" (1600 mm) long

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, hose retaining

2шт.

5

D65132

FITTING

NIPPLE - straight, pipe

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

7

L59043

PLATE

- heater mounting

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

12

D65190

HEATER ASSEMBLY - operators cab, figure 94

1шт.

Part of P/N L59025 Heater Kit

1шт.

13

L59280

PLATE - air deflector, if used

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

25-104

NUT,1/4"-20, G5

4шт.

16

A136406

HOSE,0.64" ID x 29.00", SAE 20R3

- Heater return 0.64" ID x 29.00", SAE 20R3

1шт.

17

A16764

VALVE

- water shut-off

1шт.

18

221-337

COUPLING,Pipe, 3/8" NPT

- 3/8" NPT

1шт.

19

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1"

1шт.

Part of P/N L59025 Heater Kit

1шт.

20

L48971

FAN

- defroster, figure 96

1шт.

21

169-99

SCREW,Sl Fil Hd, #10 - 24 x 5/8"

- fillister head, #10-24 NC x 5/8"

4шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

23

L59696

HARNESS

- cab wiring

1шт.

24

L54606

CLIP

- cab harness

11шт.

25

L33827

SWITCH

- heater motor

1шт.

Part of P/N L59025 Heater Kit

1шт.

26

L59161

WIRE - heater switch to cab harness

1шт.

27

L59170

WIRE - heater switch to heater motor

1шт.

L59025

KIT heater, Includes: Refs. 12, 19 and 25

1шт.
