Запчасти Case 680E (086) - ELECTRICAL SYSTEM, TWO PIECE REAR LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

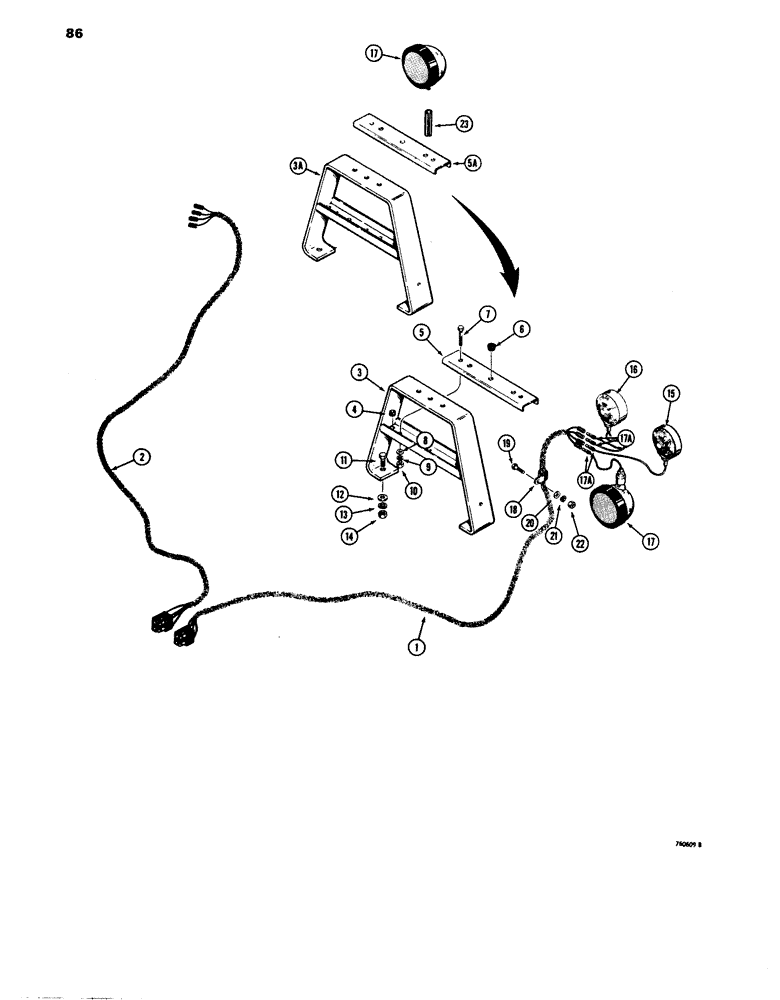

Схема запчастей Case 680E - (086) - ELECTRICAL SYSTEM, TWO PIECE REAR LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L74575

HARNESS

- rear light, R.H.

1шт.

2

L74574

HARNESS

- rear light, L.H.

1шт.

3

L73486

BRACKET

- rear light mounting, used before sn. 9127825

2шт.

3a

L78742

BRACKET - rear light mounting, used on sn. 9127825 and after

2шт.

4

L13765

GROMMET

- harness

2шт.

5

L73479

COVER

- light support, used before sn. 912785

2шт.

5a

L79121

COVER - light support, used on sn. 9127825 and after

2шт.

6

353-403

PLUG,Dome, .437" hole, Nylon

Light bracket Dome, .437" hole, Nylon

2шт.

7

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

95-8

WASHER,1/2"

flat 1/2"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

15

L43738

INTERIOR LIGHT

LIGHT - turn signal and flasher, figure 104

2шт.

16

L43737

LIGHT

- stop and tail, figure 104

2шт.

17

D71193

LAMP BASE

LIGHT - rear flood, figure 104

2шт.

17a

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

SLEEVE - insulation, light terminals

8шт.

18

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness

2шт.

19

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

20

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

L77093

CONDUIT

Flex, 0.35" ID x 6.00", Slit, Flood Light Wire; Used On SN. 9127825 and After

2шт.

Выбрано товаров: 26
