Запчасти Case 680E (084) - ELECTRICAL SYSTEM, ONE PIECE REAR LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

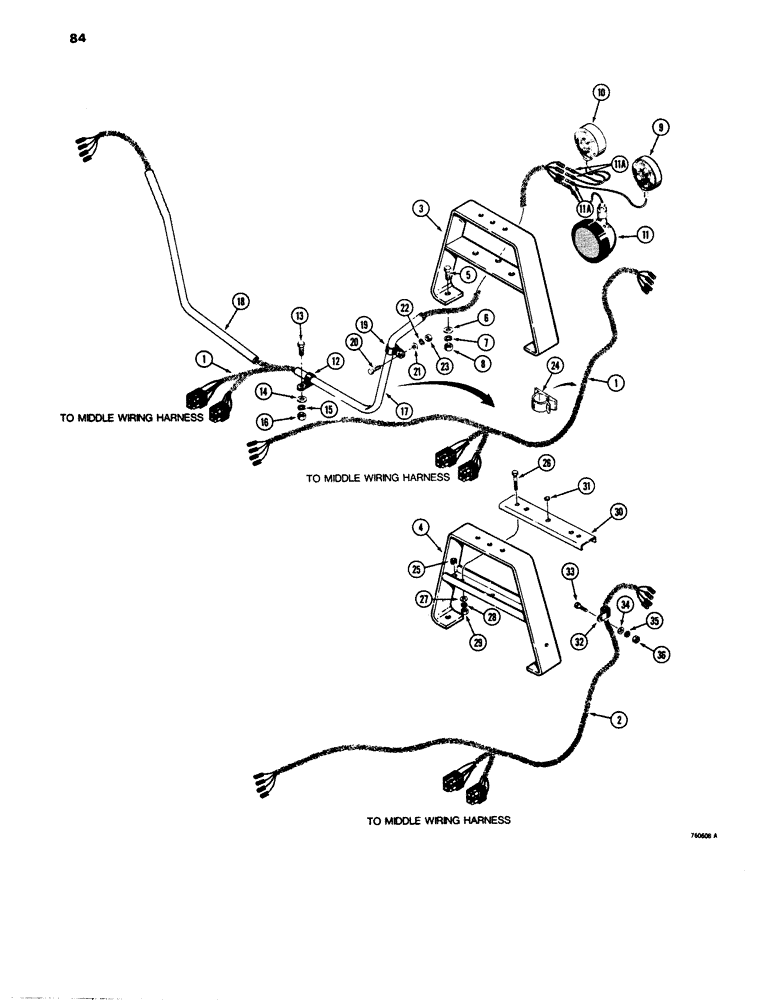

Схема запчастей Case 680E - (084) - ELECTRICAL SYSTEM, ONE PIECE REAR LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L57900

HARNESS

- rear light, used with Refs. 12-23 or Ref. 24

1шт.

2

L73162

HARNESS

- rear light, used with Refs. 32-36

1шт.

3

L57910

BRACKET

- rear light mounting, used with L57900 harness

2шт.

4

L73486

BRACKET

- rear light mounting, used with L73162 harness

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

95-8

WASHER,1/2"

flat 1/2"

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

4шт.

9

L43738

INTERIOR LIGHT

LIGHT - turn signal and flasher, figure 104

2шт.

10

L43737

LIGHT

- stop and tail, figure 104

2шт.

11

D71193

LAMP BASE

LIGHT - rear flood, figure 104

2шт.

11a

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

SLEEVE - insulation, light terminals

8шт.

12

51200329

CLIP

CLAMP - harness, if used

2шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

14

95-8

WASHER,1/2"

flat, if used 1/2"

2шт.

15

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC, if used

2шт.

17

L58070

TUBE - shield, rear harness, R.H., if used 0.75" OD

1шт.

18

L58069

TUBE - shield, rear harness, L.H., if used 0.75" OD

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube retaining, if used

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

22

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

HUT - hex., 3/8" - 16 NC, if used

2шт.

24

L54606

CLIP

- harness mounting, stick on, if used

14шт.

25

L13765

GROMMET

- harness

2шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

4шт.

27

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

30

L73479

COVER

- light support

2шт.

31

353-403

PLUG,Dome, .437" hole, Nylon

Light bracket Dome, .437" hole, Nylon

2шт.

32

49852

PTO SHAFT

- harness

6шт.

33

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

34

95-4

WASHER,1/4"

- flat, 1/4"

6шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

36

25-104

NUT,1/4"-20, G5

6шт.

Выбрано товаров: 37
