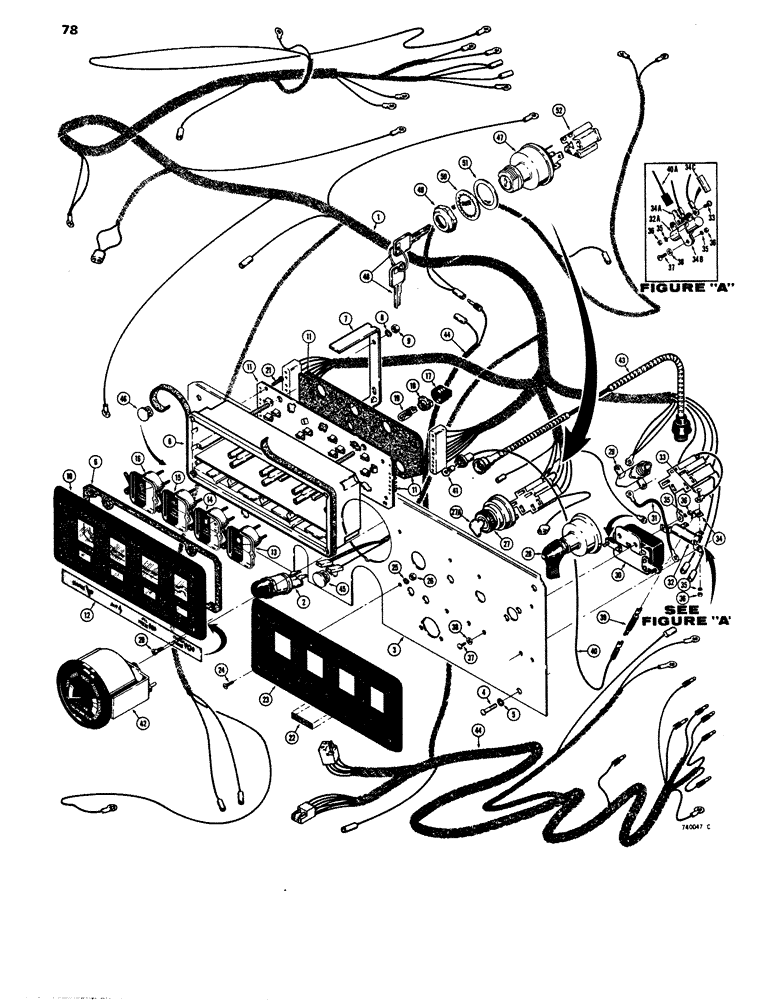

Запчасти Case 680E (078) - ELECTRICAL SYSTEM, INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - front, see figure 74

1шт.

2

L55778

SWITCH

- starting, push button, used before transmission sn. 75001

1шт.

3

L57050

PANEL

- instrument, inner, Serial Range: -9124838

1шт.

3

L77296

PANEL

- instrument, inner, Serial Range: 9124838-9127823

1шт.

3

L79233

PANEL - instrument, inner, Start Serial: 9127823

1шт.

4

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- 1/4" - 20 NC x 5/8"

4шт.

5

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

L55650

CLUSTER

- instrument panel, L.H., Includes: Ref. 6 - 22

1шт.

6

NSS

NOT SOLD SEPARAT

CASE AND GASKET - cluster mounting

1шт.

7

L35954

STRAP

- case mounting

2шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

9

129-37

NUT,#10-32

4шт.

10

L35948

PANEL

- instrument, L.H. outer

1шт.

11

L35950

BOARD, PRINTED CIRCU

CIRCUIT BOARD - wiring and gauges

1шт.

12

L35953

PANEL

- identification, brake, alternator, engine oil pressure and clutch pressure warning light

1шт.

13

L35946

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

14

L35943

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

15

L35944

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

16

L35945

ELECTRICAL GAUGE

GAUGE - converter oil temperature

1шт.

17

L35947

BOOT

COVER - rubber, light socket

7шт.

18

L35949

SOCKET/RECEPTACLE

SOCKET - instrument light

7шт.

19

W10478

LAMP

BULB - light, instrument (#194)

7шт.

20

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - hex, socket head, #6 - 32 NC x 3/4", special

4шт.

21

187-976

SELF-TAP SCREW,#6 x 3/8"

SCREW - hex head, self - tapping, #6 - 3/8"

13шт.

22

L57685

DECAL

- "CASE", included in decal kits, see figure 462 and 464

1шт.

23

L55774

PANEL

- instrument, R.H. outer

1шт.

24

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - #6 - 32 NC x 3/4"

4шт.

25

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

26

129-15

NUT,#6-32

4шт.

27

L55655

SWITCH

ASSEMBLY - electrical, uses D36822 key, see Ref.47, Includes: Ref. 27A

1шт.

27a

D36822

KEY

- Set of 2

1шт.

28

L55654

SWITCH

- lights

1шт.

29

L48480

SWITCH

- air pressure

1шт.

30

L15056

BUZZER

- air pressure warning

1шт.

31

L57801

WIRE -, Serial Range: switch-buzzer

1шт.

32

L57052

RESISTOR

- 25 ohm, has mounting lugs, if used

1шт.

32a

L57052

RESISTOR

- 15 ohm, mounted with "P" type clamp, if used

1шт.

33

182-44

SCREW,Sl Pan Hd, #6 - 32 x 3/8"

- #6 - 32 NC x 3/8"

2шт.

34

L58511

TERMINAL CONNECTOR

TERMINAL - panel, 90 deg.

1шт.

34a

L59682

TERMINAL CONNECTOR

TERMINAL - panel, straight

1шт.

34b

49833

CLAMP

- resistor mounting, L59799 resistor only

1шт.

34c

223-125

TUBE

SLEEVE - insulation, if used

1шт.

35

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

5шт.

36

129-15

NUT,#6-32

5шт.

37

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

- #6 - 32 NC x 5/8"

3шт.

38

195-7

WASHER,#6

- flat, #6

3шт.

39

L58497

RESISTOR

- 40 ohm, if used

1шт.

40

L57799

ELECTRICAL WIRE

WIRE - tachometer light, black-red color

1шт.

40

L70185

ELECTRICAL WIRE

WIRE - tachometer light, gray color

1шт.

41

A14553

BULB

- tachometer light (#57)

1шт.

42

L58174

GAUGE

- tachometer, for security cover see figure 458

1шт.

43

R29332

FLEXIBLE DRIVE SHAFT

SHAFT - tachometer drive, flexible

1шт.

44

L58335

HARNESS

- middle, wiring

1шт.

45

353-404

PLUG,Dome, .500" hole, Nylon

Heater switch mounting, if used Dome, .500" hole, Nylon

1шт.

46

353-407

PLUG,Dome, .687" hole, Nylon

- cold start switch mounting, if used

1шт.

47

A77312

SWITCH

- electrical, uses A77313 key, see Ref. 27

1шт.

A77312 ignition switch - Kit L36185

1шт.

Part of Electrical Switch Kit P/N L36185

1шт.

(now subs to primes) was also released to service older units which did not have this heavy duty switch (refer Service Bulletin U18-78 for SN breaks)

1шт.

48

A77313

SET OF 2 KEYS

KEY - set of 2

1шт.

Part of Electrical Switch Kit P/N L36185

1шт.

49

A77314

NUT

- mounting

1шт.

Part of Electrical Switch Kit P/N L36185

1шт.

50

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

Part of Electrical Switch Kit P/N L36185

1шт.

51

L31557

WASHER

- flat

1шт.

Part of Electrical Switch Kit P/N L36185

1шт.

52

L79667

CONNECTOR, ELEC

PLUG - wiring harness (Replaces NSS)

1шт.

L36185

SWITCH

KIT - electrical switch. Includes: Ref. 47-51

1шт.
