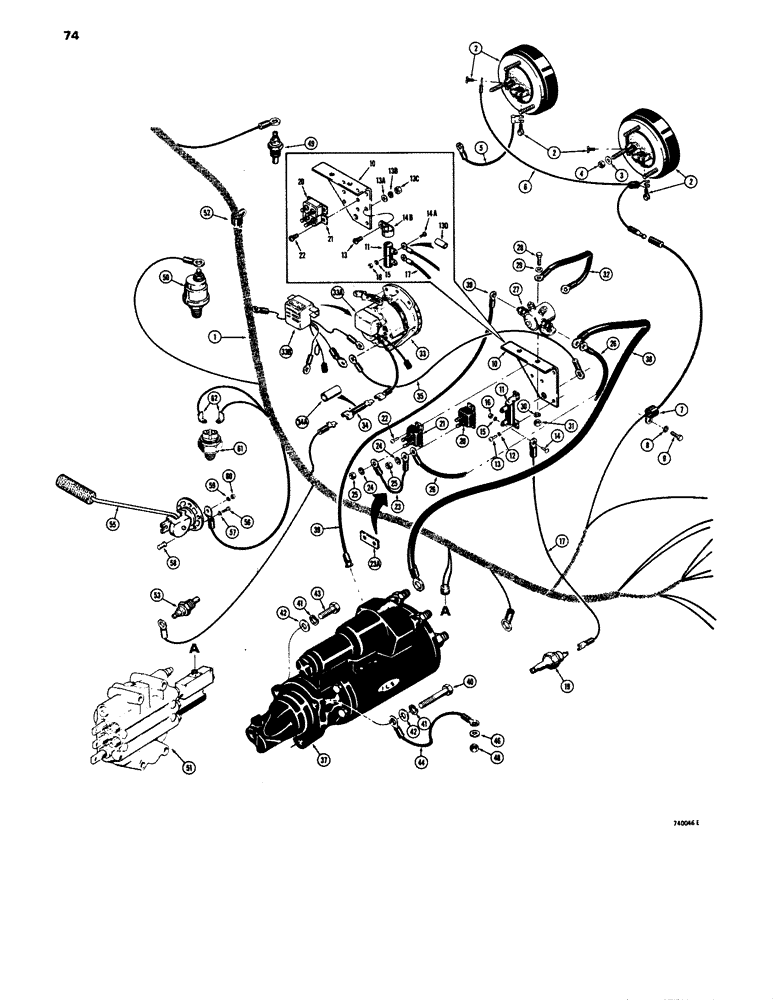

Запчасти Case 680E (074) - ELECTRICAL SYSTEM, FRONT HARNESS AND CONNECTIONS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L58334
HARNESS
HARNESS - front, models with CASE built cab
1шт.
1
L71684
HARNESS
HARNESS - front, Sims cab and 5 lead voltage regulator, see ref. nos. 33A and 33B
1шт.
1
L76350
HARNESS
HARNESS - front, Sims cab and 4 lead voltage regulator, see ref. nos. 33A and 33B, Serial Range: -9127825
1шт.
1
L79230
HARNESS
HARNESS - front, Start Serial: 9127825
1шт.
2
L43743
LIGHT
LIGHT - front, flood, see figure 104
2шт.
3
193-6
LOCK WASHER,Ext Tooth, #10
WASHER - flat, #10
6шт.
4
129-7
NUT,Hex, #10 - 24
NUT - hex, #10 - 24 NC
6шт.
5
A15941
ELECTRICAL WIRE
WIRE WIRE - flood light ground
2шт.
6
L11352
ELECTRICAL WIRE
WIRE WIRE - front flood light connecting, pink color
1шт.
6
L70179
ELECTRICAL WIRE
WIRE WIRE - front flood light connecting, dark green color
1шт.
7
51200330
CLAMP
CLAMP - wire retaining
2шт.
8
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
2шт.
9
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd
2шт.
10
L72967
BRACKET
BRACKET - solenoid mounting
1шт.
11
L58091
RESISTOR
RESISTOR - 10 Ohm
1шт.
12
192-15
LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND
Washer, Lock, , If used #6
2шт.
13
182-46
SCREW,Sl Pan Hd, #6 - 32 x 1/2"
SCREW - pan head, #6 - 32 NC x 1/2"
1шт.
13a
195-7
WASHER,#6
WASHER - flat, #6
1шт.
13b
192-5
LOCK WASHER,#6
WASHER, LOCK, #6
1шт.
13c
129-5
NUT,#6-32
NUT, #6-32
2шт.
13d
L78495
SLEEVE,0.19" ID x 1.5" L
TUBE - shrink, insulation, if used
2шт.
14
173-274
SCREW,Sl Rnd Hd, #8 - 32 x 1/2"
SCREW - round head, #8 - 32 NC x 1/2", plated, if used
2шт.
14a
173-73
SCREW,Sl Rnd Hd, #8 - 32 x 1/4"
SCREW - round head, #8 - 32 x 1/4" plated
2шт.
14b
L70217
CLAMP
CLAMP - resistor mounting, if used
1шт.
15
192-6
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
16
129-6
NUT,#8-32
NUT, #8-32
2шт.
17
L58820
ELECTRICAL WIRE
WIRE WIRE - resistor to oil sending unit
1шт.
18
NSS
NOT SOLD SEPARAT
RESERVED
1шт.
19
A66737
SWITCH, PRESSURE
PRESSURE SWITCH SWITCH - oil pressure sending unit
1шт.
20
D37203
BREAKER
BREAKER - circuit, 15 amp
1шт.
21
L11342
BREAKER
BREAKER - circuit, 25 amp
1шт.
22
187-811
SCREW,Slotted Pan Hd, #6 x 5/16"
SCREW - pan head, #6, breaker mounting
4шт.
23
L57036
ELECTRICAL WIRE
WIRE WIRE - jumper, breaker to breaker, orange-black color
1шт.
23
L70057
ELECTRICAL WIRE
WIRE WIRE - jumper, breaker to breaker, red color, if used
1шт.
23a
L74683
BAR
BAR - jumper, breaker to breaker, if used
1шт.
24
192-018
WASHER - lock, #10
4шт.
25
129-37
NUT,#10-32
NUT, #10-32
4шт.
26
L57035
ELECTRICAL WIRE
WIRE WIRE - solenoid relay to circuit breaker, orange-black color
1шт.
26
L70056
BRACKET
WIRE - solenoid relay to circuit breaker, red color
1шт.
27
S219533
SOLENOID
SPARE PART SOLENOID - relay, starter (Replaces S219553)
1шт.
28
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
BOLT, , Solenoid mounting Hex, 1/4"-20 x 3/4", G5, Full Thd
2шт.
29
95-4
WASHER,1/4"
WASHER - flat, 1/4"
2шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
31
25-104
NUT,1/4"-20, G5
NUT, 1/4"-20, G5
2шт.
Refer to Service Bulletin U35-79 for a list
1шт.
Of wiring harnesses coupled with effective SN breaks and major changes to aid in troubleshooting electrical problems on 680E's.
1шт.
33
REF
INSTRUCTION
ALTERNATOR - 24 volt, figure 52
1шт.
33a
A44783
VALVE
REGULATOR - voltage, 5 leads, order L76431 kit for service
1шт.
L76431
KIT
KIT - voltage regulator, replaces 5 lead alternator with 4 lead alternator, Includes: Ref. 33B
1шт.
33b
L74931
REGULATOR
REGULATOR - voltage, 4 leads
1шт.
34
L58496
RESISTOR
SPARE PART RESISTOR - 25 Ohm, if used
1шт.
34a
223-125
TUBE
TUBE - shrink, insulation, if used
1шт.
35
A18312
SPARE PART WIRE - ground, alternator
1шт.
35
L14552
CABLE
WIRE - starter to solenoid, 13" (330 mm) long
1шт.
37
R26136
STARTER MOTOR
STARTING MOTOR - engine, figure 46 and 48
1шт.
37
RR46156
REMAN-STARTER
Remanufactured Starter
1шт.
37
RC46156
CORE-STARTER
Return Number
1шт.
38
L70385
CABLE
WIRE - starter to solenoid, 16" (406 mm) long
1шт.
39
NLS
NO LONGER SERVICED
WIRE - solenoid to starter, red color
1шт.
40
13-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
HHCS - 1/2" - 13 NC x 3", starter mounting
1шт.
41
92-8
LOCK WASHER,1/2"
LOCK WASHER, 1/2"
3шт.
43
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
BOLT, , Starter mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd
2шт.
44
L40793
ELECTRICAL WIRE
WIRE WIRE - ground, starter to engine frame
1шт.
46
195-2051
WASHER,17/32" x 13/16" x .060"
WASHER - flat, 1/2"
1шт.
48
25-148
JAM NUT,Jam, 1/2"-13, G5
NUT - hex, jam, 1/2"-13 NC
1шт.
49
L56217
UNIT
SENDING UNIT - engine water temperature
1шт.
50
L57176
SENDER UNIT
SENDING UNIT - air pressure
1шт.
51
REF
INSTRUCTION
VALVE - loader, see pages 381 and 383 for related parts
1шт.
52
49774
CLAMP
CLAMP - front harness
1шт.
53
L56217
UNIT
SENDING UNIT - converter oil temperature
1шт.
55
L100566
SENDER UNIT
SENDER SENDING UNIT - fuel level
1шт.
L100566 sending unit - For 680E units
1шт.
Use part nbr L101407 for service.
1шт.
56
163-4
SCREW,Hex, #10 - 32 x 5/8"
SCREW - #10 - 32 NF x 5/8"
5шт.
57
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
5шт.
58
L13194
NUT
RIVNUT - fuel tank, #10-32 NF
5шт.
59
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
60
129-37
NUT,#10-32
NUT, #10-32
1шт.
61
L71304
SWITCH
SWITCH - neutral start, transmission sn. 75001 and after
1шт.
L71304 neutral start switch - All 680E
1шт.
Machines prior to transmission SN75001 did not use a neutral start switch. The transmission control lever had a plate with a hole in it that lined up with starter button only when the transmission was in neutral. l start switch. The transmission control lever had a plate with a hole in it that lined up with starter button only when the transmission was in neutral.
1шт.
62
L58511
TERMINAL CONNECTOR
TERMINAL - electrical
2шт.
