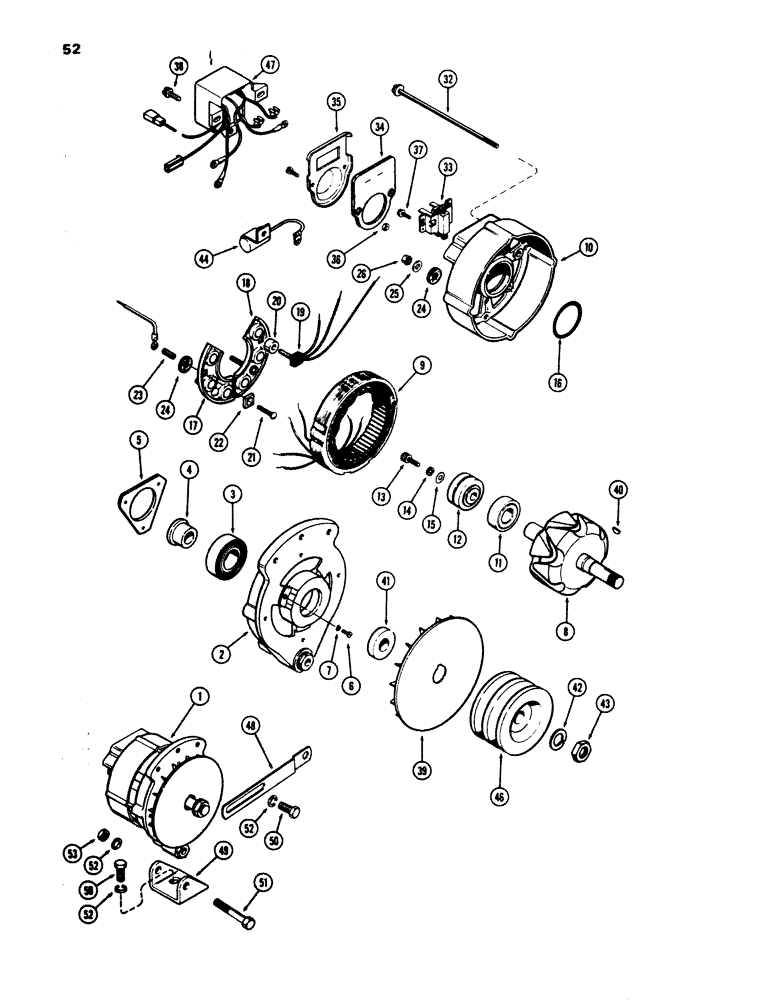

Запчасти Case 680E (052) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

L74747

ALTERNATOR

ALTERNATOR ASSY. - (Production Only)(24 volt) Motorola #8HC3006F) (Order 1-A44798 alternator, 1-A41361 pulley and 1 vol. regulator from figure 76), Includes: Ref. 2 - 44

1шт.

1

A44798

ALTERNATOR

ALTERNATOR ASSY. - (Repairs Only), Includes: Ref. 2 - 44

1шт.

1

104021A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 26 Amp Alternator

1шт.

1

104021A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 26 Amp Alternator

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 40 Amp Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 40 Amp Alternator

1шт.

2

A44774

HOUSING

HOUSING - front

1шт.

3

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - housing, front (1 x 2 x 9/16")

1шт.

4

A41052

SLEEVE

SLEEVE - bearing pilot

1шт.

5

A43280

RETAINER

RETAINER - front bearing

1шт.

6

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

SCREW - front retainer (#8-32 x 3/8" sltd. hd.)

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

8

A44775

IMPELLER

ROTOR

1шт.

9

A44672

STATOR

STATOR

1шт.

10

A44776

SPARE PART HOUSING - rear

1шт.

12

A44581

RING

BEARING - housing, rear

1шт.

13

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - slip ring (1 x 5/8" 12 pt. sckt. hd.)

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

15

A44788

WASHER

WASHER - slip ring

1шт.

16

A42806

RING

O-RING - rear brg. retainer (1-1/2 x 1-3/4 x 1/8")

1шт.

17

A44777

DIODE

DIODE ASSY. - negative

1шт.

18

A44778

DIODE

DIODE ASSY. - positive

1шт.

19

A45253

DIODE ELEMENT

DIODE ASSY. - trio

1шт.

20

A45254

SPACER

SPACER - trio diode

1шт.

21

A41436

SCREW

STUD - (#10 x 1-1/2" N.C., carr. hd.)

1шт.

22

A41041

INSULATOR

INSULATOR - diode stud

1шт.

23

A44771

SLEEVE CYLINDER

SLEEVE - insulator (1/4 x 5/16 x 1/2")

1шт.

23

A44782

INSULATOR

SLEEVE - insulator (3/16 x 1/4 x 3/8")

2шт.

24

A44763

WASHER

WASHER - insulating (1/4 x 3/4 x 1/16")

2шт.

24

A41038

WASHER

WASHER - insulating (3/16 x 3/4 x 1/16")

4шт.

25

A44789

SPARE PART WASHER - 3/8 x 3/16"

4шт.

26

A41060

LOCK NUT

NUT - #10-24 hex., w/skpf. washer

4шт.

32

A44423

BOLT

BOLT - thru (#10 N.F. x 3-1/8")

4шт.

33

A44779

BRUSH, COMMUTATOR

BRUSH BRUSH ASSY. - w/holder

1шт.

34

A44781

SPARE PART GASKET - brush cover (felt)

1шт.

35

A44785

COVER

COVER - brush

1шт.

36

A44784

SPARE PART SPACER - brush cover (3/16 x 9/3 x 1/16")

2шт.

37

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - brush holder

2шт.

38

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - regulator (#8-32 x 3/4" sltd. hd.)

1шт.

39

A42431

FAN

FAN

1шт.

40

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Fan and pulley #5, 1/8" x 5/8", HT

1шт.

41

A42432

SPACER

SPACER - fan (5/8 x 1-3/8 x 11/32")

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

43

A41035

NUT

NUT - pulley retaining (5/8" N.F. hex.)

1шт.

44

A44770

TANK

CAPACITOR - (condenser)

1шт.

46

A41361

PULLEY

PULLEY - alternator

1шт.

47

REF

INSTRUCTION

REGULATOR ASSY. - voltage (See Figure 76)

1шт.

48

A62429

STRAP

STRAP - alternator adjusting

1шт.

CURVED STRAP = L41455

1шт.

49

A38492

BRACKET

BRACKET - alternator mounting

1шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Bracket and strap Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

51

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - alt. to brkt. (3/8 x 3-1/4" N.C. hex.)

1шт.

52

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

53

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

1шт.
