Запчасти Case 680E (050) - A42376 SOLENOID, 336BD DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

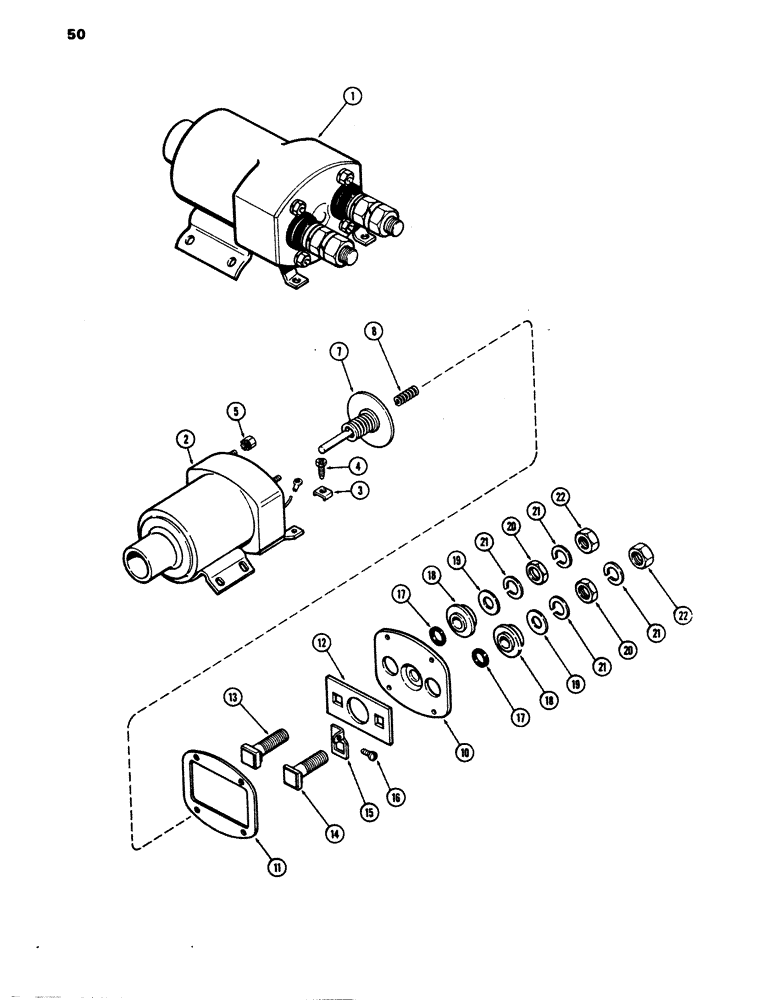

Схема запчастей Case 680E - (050) - A42376 SOLENOID, 336BD DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A42376

SWITCH

SOLENOID ASSY. - (Delco-Remy #1119848), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil

1шт.

3

A42407

CLAMP

- terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp

2шт.

5

D32500

NUT

ASSY. - w/skpf. washer

4шт.

7

D32498

CONTACT

DISC ASSY. - contact

1шт.

8

A42411

VALVE SPRING

SPRING - return, contact disc

1шт.

A42412

PLATE

ASSY., Includes: Ref. 10 - 22

1шт.

10

A42410

PLATE

- terminals & case cover

1шт.

11

A42260

GASKET

- terminal, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - terminal plate

1шт.

13

A42413

STUD

- battery term. (1-21/32" thread length)

1шт.

14

D32506

STUD

- starter term. (1-13/16" thread length)

1шт.

15

D29910

SUPPORT

TERMINAL - coil lead (Replaces A42406)

1шт.

16

175-56

SCREW - coil lead (#6-32 x 3/16" truss hd.) Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal plate insulators

2шт.

18

A43701

BUSHING

- terminal studs insulators (Replaces A42409)

2шт.

19

D30004

WASHER

- insulating, terminal studs (1/2 x 1-3/16 x 3/32")

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

5шт.

21

193-113

WASHER - terminal studs (1/2" lock)

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.

Выбрано товаров: 21
