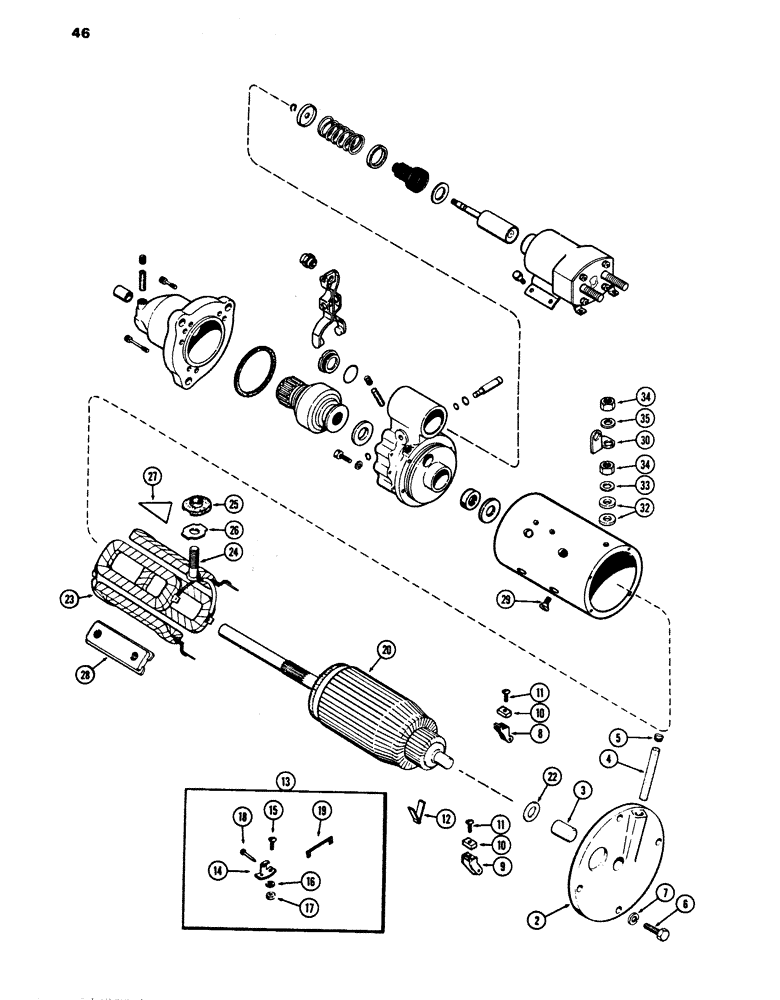

Запчасти Case 680E (046) - R26136 STARTER, 336BD DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #113403), Includes: Ref. 2 - 76

1шт.

Starter Assy. Replaced this unit and all Terre Haute units with L79906 starter assy effective May 1978. Both numbers now sub to 104213A2R reman starter.

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number, Starter

1шт.

2

A43861

FRAME ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

A42323

BUSHING

BUSHING - shaft (9/16 x 11/16 x 25/32")

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1849

PLUG

PLUG - (1/8" P.T., sckt. hd.)

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

R21590

HOLDER

HOLDER - brush, insulated

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (#8-32 x 13/16" self tapping)

4шт.

12

R15025

SPRING

SPRING - brush tension

2шт.

13

R15029

BRUSH

BRUSH SUPPORT KIT, Includes: Ref. 14 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - (Order R15029)

1шт.

15

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - support (#10 x 3/4" N.F., truss hd.)

2шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

17

129-17

NUT,Hex, #10 - 24

NUT - #10 N.F. hex. (Replaces R15032)

2шт.

18

R15035

PIN

PIN - brush holder

1шт.

19

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

20

A40909

ARMATURE

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, comm. end (9/16 x 1 x 1/16")

1шт.

23

A43860

COIL

COIL ASSY. - field, Includes: Ref. 24

1шт.

24

A40896

STUD

STUD - field terminal

1шт.

A41925

BUSHING

BUSHING ASSY. - inner, terminal insulating, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

26

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

27

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes (3/8 x 5/8" N.F., flat sltd. hd.)

8шт.

30

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

32

D30005

INSULATOR

INSULATOR - field stud, outer (1/2 x 1 x 3/32")

2шт.

33

D30006

WASHER

WASHER - terminal stud (1/2 x 7/8 x 1/32")

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, , Terminal stud Jam, 1/2"-13, G5

2шт.

35

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

40

R21579

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 41 - 45

1шт.

41

R15023

WICK

WICK - oil

1шт.

42

221-1041

PLUG

PLUG - (1/8" P.T., sltd. hd.)

1шт.

43

R21580

BUSHING

BUSHING - (13/16 x 1 x 1-1/4")

1шт.

44

R21582

OIL SEAL

SEAL - OIL (13/16 x 1-3/8 x 3/8")

1шт.

45

R15145

DISC

WASHER - brake (7/16 x 1-7/8 x 3/16")

1шт.

46

A40892

WASHER

WASHER - thrust, drive end (7/16 x 1-3/4 x 3/16")

1шт.

47

R21587

PLUG

PLUG - housing

1шт.

48

A41924

GASKET

GASKET - plug

1шт.

49

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Housing to frame Hex, 1/4"-28 x 1", G5

5шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

51

A42397

DRIVE

DRIVE ASSY. - starter pinion

1шт.

52

R21562

GASKET

GASKET - drive housing to drive end

1шт.

55

A44340

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 56 and 57

1шт.

56

A48093

SUPPORT

BUSHING - (5/8 x 3/4 x 3/4")

1шт.

57

B15023

WICK - oil

1шт.

58

221-1041

PLUG

PLUG - (1/8" P.T., sltd. hd.)

1шт.

59

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing (5/16 x 1-1/2" N.C., sckt. hd.)

1шт.

60

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing (5/16 x 7/8" N.C., sckt. hd.)

1шт.

62

D32547

LEVER

LEVER - shift control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

O-RING - shaft (1/4 x 3/8 x 1/16")

1шт.

65

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

O-RING - shaft (3/8 x 1/2 x 1/16")

1шт.

66

G46146

SNAP RING,#37, Ext

RING - snap, , shaft retaining #37, Ext

1шт.

67

A42309

PLUNGER

PLUNGER - solenoid

1шт.

68

A42308

BOOT

BOOT - plunger (rubber)

1шт.

69

A41242

SPRING

SPRING - plunger return

1шт.

70

A41922

WASHER

WASHER - spring seat (13/16 x 1-3/8 x 1/32")

1шт.

71

A43380

BACK-UP RING

RETAINER - plunger spring, inner (1-3/16" hole)

1шт.

72

A43419

SEAT

RETAINER - plunger spring, outer (3/8" hole)

1шт.

73

G46146

SNAP RING,#37, Ext

RING - snap, , retainer to plunger #37, Ext

1шт.

74

A43856

NUT

NUT - plunger to lever (5/16" N.F. special)

1шт.

75

A42376

SWITCH

SOLENOID ASSY. - (See Figure 50)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid mtg. (1/4 x 3/8" N.F. hex.)

4шт.
