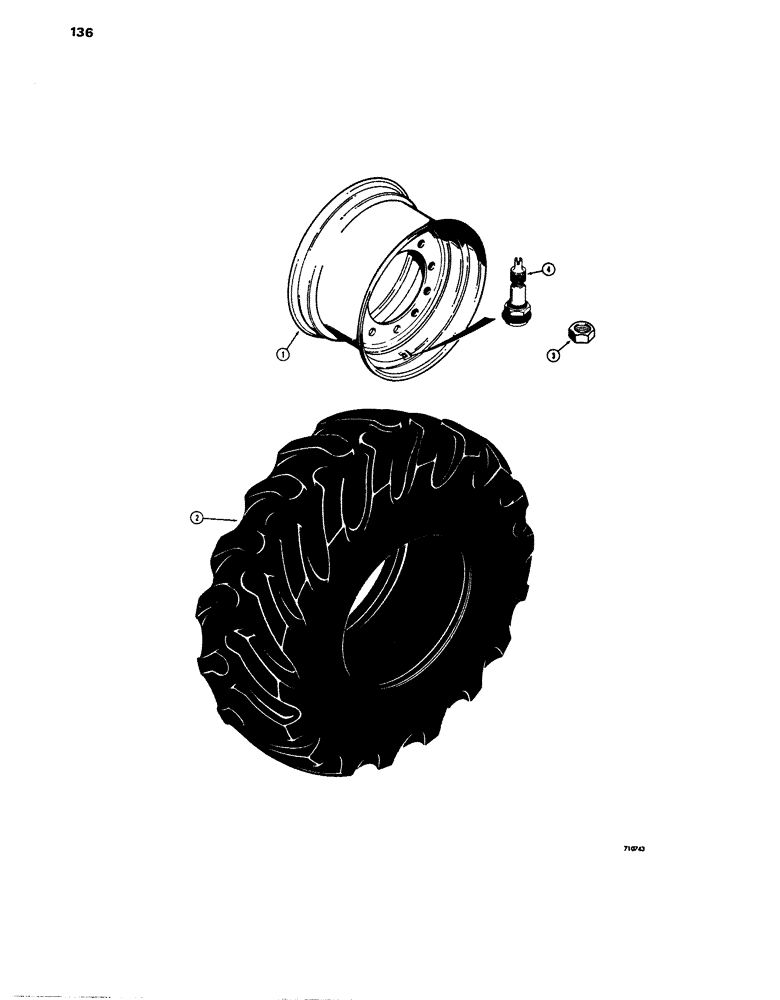

Запчасти Case 680E (136) - REAR WHEELS, USED ON MODELS WITH 16.9 X 24-8 PLY TIRES, USED (44) - WHEELS

1

L57550

RIM

- rear drive wheel

2шт.

2

REF

INSTRUCTION

TIRE - rear drive, 16.9 x 24 - 8 ply

2шт.

3

L50592

NUT

- valve stem, tube type tires only

2шт.

4

A20058

VALVE STEM

- Wheels, tubeless tires only

2шт.

1

L57550

RIM

- rear drive wheel, used on models with 16.9 x 24-10 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - rear drive, used on models with 16.9 x 24-10 ply tires

2шт.

3

L50592

NUT

- valve stem, tube type tires only, used on models with 16.9 x 24-10 ply tires

2шт.

4

A20058

VALVE STEM

- Wheel, tubeless tires only, used on models with 16.9 x 24-10 ply tires

2шт.

1

L57550

RIM

- rear drive wheel, used on models with 16.9 x 24-12 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - rear drive, used on models with 16.9 x 24-12 ply tires

2шт.

3

L50592

NUT

- valve stem, tube type tires only, used on models with 16.9 x 24-12 ply tires

2шт.

4

A20058

VALVE STEM

- Wheel, tubeless tires only, used on models with 16.9 x 24-12 ply tires

2шт.

1

L57552

WHEEL (STEERING)

RIM - rear drive wheel, used on models with 16.9 x 28-8 - 10 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - rear drive, used on models with 16.9 x 28-8 - 10 ply tires

2шт.

3

L50592

NUT

- valve stem, tube type tires only, used on models with 16.9 x 28-8 - 10 ply tires

2шт.

4

A20058

VALVE STEM

- Wheel, tubeless tires only, used on models with 16.9 x 28-8 - 10 ply tires

2шт.

1

L57551

RING

RIM AND DISC - rear drive wheel, used on models with 19.5L x 24-12 ply tires (for Tractors except when equipped with extendahoe)

2шт.

L57551 rim & disc - Remove reference in title "for tractors except when equipped with extendahoe".

1шт.

2

REF

INSTRUCTION

TIRE - rear drive, used on models with 19.5L x 24-12 ply tires (for Tractors except when equipped with extendahoe)

2шт.

3

L50592

NUT

- valve stem, tube type tires only, used on models with 19.5L x 24-12 ply tires (for Tractors except when equipped with extendahoe)

2шт.

4

A20058

VALVE STEM

- Wheel, tubeless tires only, used on models with 19.5L x 24-12 ply tires (for Tractors except when equipped with extendahoe)

2шт.
