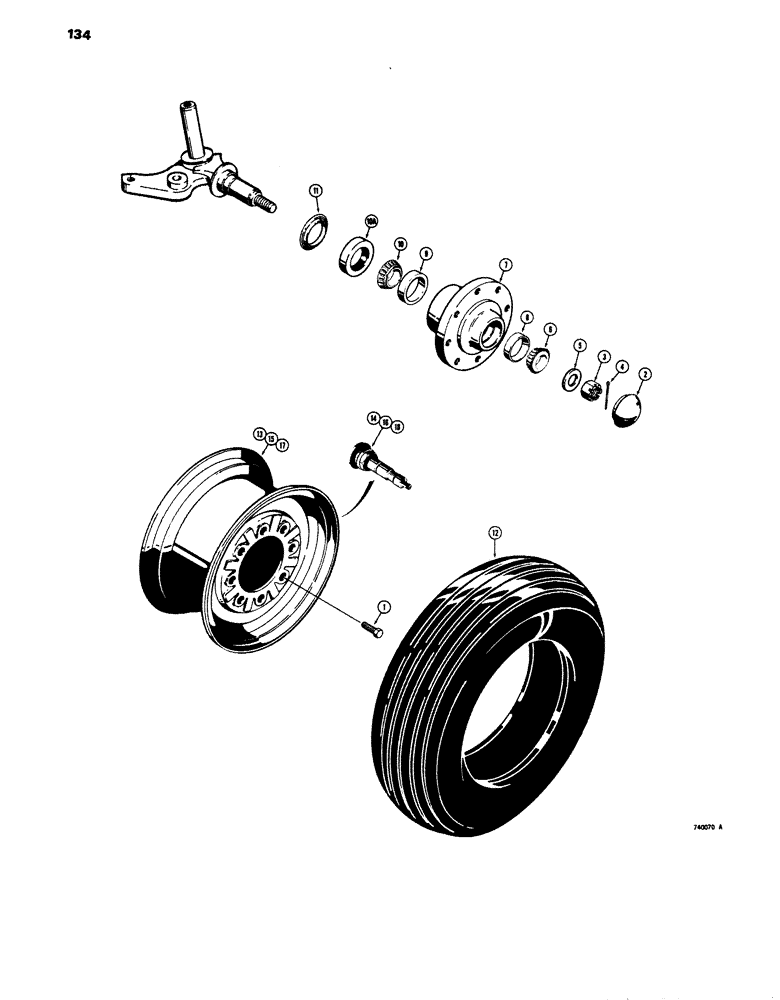

Запчасти Case 680E (134) - FRONT WHEELS AND HUBS, USED ON MODELS WITH 11.00 X 16-12 PLY (44) - WHEELS

1

L76788

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

2

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - bearing cover

2шт.

3

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex., castle

2шт.

4

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

5

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- thrust, outer bearing

2шт.

6

G15215

ROLLER BEARING

CONE - bearing, outer

1шт.

A66759

HUB

ASSEMBLY - front wheel, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

HUB - front wheel

1шт.

8

G15214

BEARING CUP

CUP - bearing, outer

1шт.

9

A61446

BEARING CUP

CUP - bearing, inner

1шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner

1шт.

10a

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- oil, hub

1шт.

11

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- oil, spindle

2шт.

12

REF

INSTRUCTION

TIRE - front

2шт.

13

A61570

WHEEL

- front, used on models with 11.00 x 16-12 ply tires

2шт.

14

A20058

VALVE STEM

- Wheel

2шт.

15

L73000

WHEEL (STEERING)

WHEEL - front, used on models with 12.5L x 16-12 ply tires

2шт.

L73000 front wheel - This is a WH10L x 16 wheel.

1шт.

16

A20058

VALVE STEM

- Wheel

2шт.

17

L57966

WHEEL (STEERING)

WHEEL - front steering, used on models with 14L or 14.5/.75 x 16.1 - 10 ply tires

2шт.

18

A20058

VALVE STEM

- Wheel

2шт.
