Запчасти Case 680E (129A) - G102602 STEERING CYLINDER (41) - STEERING

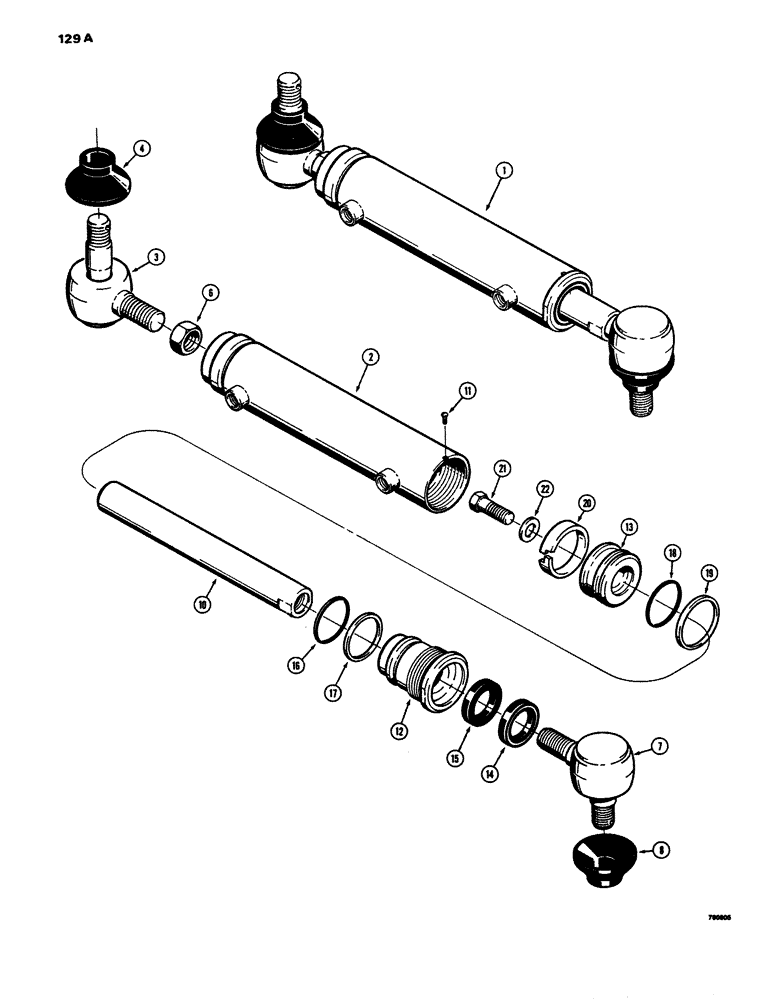

Схема запчастей Case 680E - (129A) - G102602 STEERING CYLINDER (41) - STEERING

Артикул

Название

Примечание

Количество

1

G102602

CYLINDER

ASSEMBLY - 2-1/8" (54 mm) I.D. x 7-1/2" (190 mm) stroke, Includes: Ref. 2 - 22

2шт.

2

G34691

CYLINDER BLOCK,2.12" DIA x 12.44" L

TUBE - cylinder body

1шт.

3

L59042

BALL JOINT

ASSEMBLY - closed end

1шт.

7/8-14 UNF 2A (post end)

1шт.

4

D72832

COVER

- dust

1шт.

6

129-169

JAM NUT,Jam, 7/8"-14, G5

1шт.

7

L59041

BALL JOINT

ASSEMBLY - rod end

1шт.

The Dowel pin hole and dowel pin are no longer required and have been eliminated from these parts. The balancer gear is now attached to the crankshaft with bolts (4 of A155438), hardened washers (4 of A50820) and nuts (4 of A51904). The bolts are torqued to 50-55 ft./lbs. (68-75 NM) per CE Service Bulletin 38-81.

1шт.

7/8-14 UNF 2A (post end)

1шт.

8

D72832

COVER

- dust

1шт.

10

G34695

ROD

- piston, 1-1/4" (32 mm) O.D.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, #8 - 32 NC x 1/4", self trapping

1шт.

12

G34816

CYLINDER END CAP

GLAND - cylinder

1шт.

13

G102604

PISTON

- cylinder

1шт.

G34819

GASKET KIT

SEAL KIT - cylinder repair, Includes: Ref. 14 - 20

1шт.

14

D95141

WIPER SEAL

WIPER - piston rod, U-cup type

1шт.

15

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, U-cup type

1шт.

16

A60212

O-RING

- gland

1шт.

17

A62070

RING

- gland, backup

1шт.

18

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- piston

1шт.

19

A61430

SEALING RING

RING - piston

1шт.

20

G101837

RING

- wear

1шт.

21

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- piston, 5/8" - 18 NF x 1-3/4", grade 8

1шт.

22

D43266

WASHER

- piston bolt

1шт.

G34820

CYLINDER END CAP

GLAND ASSEMBLY - with seals, Includes: Ref. 12 and 14-17; No Longer Available As An Assembly, Order Components

1шт.

Выбрано товаров: 25
