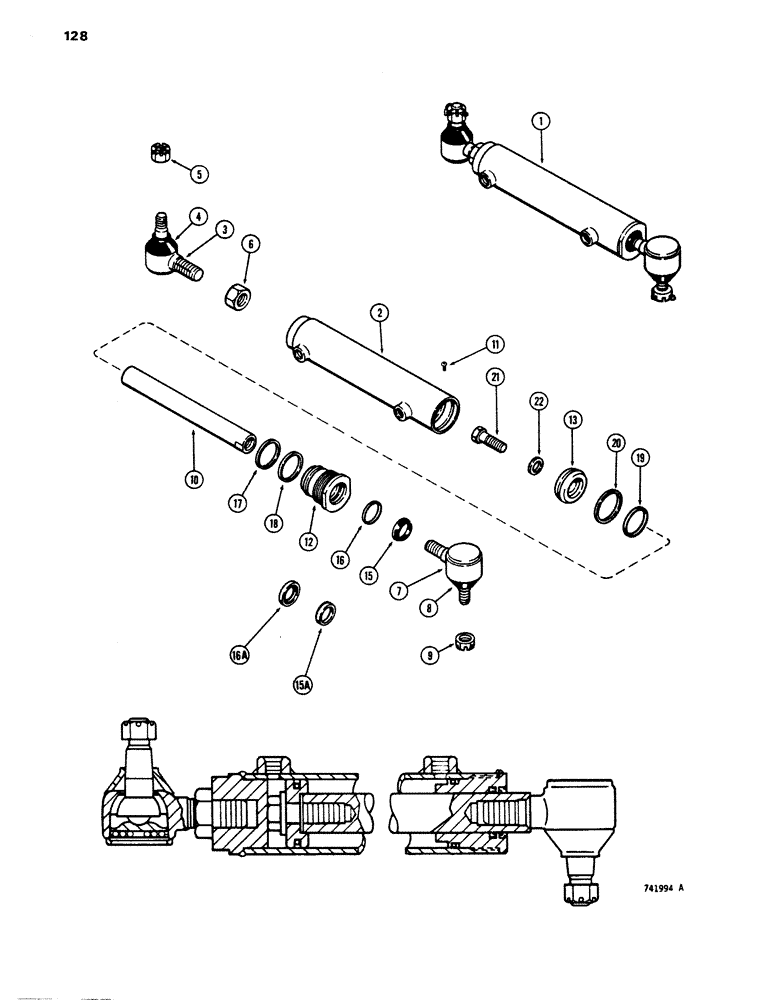

Запчасти Case 680E (128) - G34886 STEERING CYLINDER, G100674 STEERING CYLINDER (41) - STEERING

1

G34886

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-1/8" (54 mm) I.D. x 7-1/2" (190 mm) stroke, Includes: Ref. 2 - 22; No Longer Available Order G100674 Cylinder Below; G100674 Cylinder Has Been Replaced by G102602 Cylinder on Figure 129A

2шт.

2

G34691

CYLINDER BLOCK,2.12" DIA x 12.44" L

TUBE - cylinder body

1шт.

3

L59042

BALL JOINT

ASSEMBLY - closed end, Includes: Ref. 4 and 5

1шт.

4

D72832

COVER

- dust

1шт.

5

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted, 7/8" - 14 NF

1шт.

6

129-169

JAM NUT,Jam, 7/8"-14, G5

1шт.

7

L59041

BALL JOINT

ASSEMBLY - rod end, Includes: Ref. 8 and 9

1шт.

8

D72832

COVER

- dust

1шт.

9

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted, 7/8" - 14 NF

1шт.

10

G34695

ROD

- piston, 1-1/4" dia.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, #8-32 x 1/4", self trapping

1шт.

12

A62071

SHAFT

GLAND - Hole Diameter at Large Flange End Is 1-13/32"; Used With Ref 15, 16 Seals; No Longer Available Order G34820 Gland/A W/Seals; G34820 Gland/A W/Seals Is No Longer Available As An Assembly Order G34816 Gland, Which Uses Ref 15A, 16A Seals

1шт.

13

A61428

PISTON ASSY.

PISTON - cylinder

1шт.

A43296

KIT

SEAL KIT - cylinder repair, Includes: Ref. 15 - 20

1шт.

15

A61426

WIPER SEAL

WIPER - piston rod, in gland, step type

1шт.

16

A61425

SEAL

- piston rod, in gland

1шт.

17

A60212

O-RING

- gland

1шт.

18

A62070

RING

- gland, back-up

1шт.

19

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- piston

1шт.

20

A61430

SEALING RING

RING - piston

1шт.

21

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- piston, 5/8" x 1-3/4" NF

1шт.

22

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - piston bolt

1шт.

1

G100674

CYLINDER

ASSEMBLY - 2-1/8" (54 mm) I.D. x 7-1/2" (190 mm) stroke, Includes: Ref. 2 - 22, steering; No Longer Available Order G102602 Cylinder on Figure 129A

2шт.

2

G34691

CYLINDER BLOCK,2.12" DIA x 12.44" L

TUBE - cylinder body, steering cylinder

1шт.

3

L59042

BALL JOINT

BALLJOINT ASSEMBLY - closed end, Includes: Ref. 4 and 5, steering cylinder

1шт.

7/8-14 UNF 2A (post end)

1шт.

4

D72832

COVER

- dust, steering cylinder

1шт.

5

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted, 7/8" - 14 NF, steering cylinder

1шт.

6

129-169

JAM NUT,Jam, 7/8"-14, G5

Steering cylinder Jam, 7/8"-14, G5

1шт.

7

L59041

BALL JOINT

ASSEMBLY - rod end, Includes: Ref. 8 and 9, steering cylinder

1шт.

The Dowel pin hole and dowel pin are no longer required and have been eliminated from these parts. The balancer gear is now attached to the crankshaft with bolts (4 of A155438), hardened washers (4 of A50820) and nuts (4 of A51904). The bolts are torqued to 50-55 ft./lbs. (68-75 NM) per CE Service Bulletin 38-81.

1шт.

7/8-14 UNF 2A (post end)

1шт.

8

D72832

COVER

- dust, steering cylinder

1шт.

9

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted, 7/8" - 14 NF, steering cylinder

1шт.

10

G34695

ROD

- piston, 1-1/4" dia., steering cylinder

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, #8 - 32 NC x 1/4", self tapping, steering cylinder

1шт.

12

G34816

CYLINDER END CAP

GLAND - cylinder, steering; Hole Diameter at Large Flange End Is 1-3/4"; Used With Ref 15A, 16A Seals

1шт.

13

A61428

PISTON ASSY.

PISTON - cylinder, steering

1шт.

G101021

KIT

SEAL KIT - cylinder repair, Includes: Ref. 15A - 20, steering

1шт.

15a

D95141

WIPER SEAL

WIPER - piston rod, U-cup type, steering cylinder

1шт.

16a

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, U-cup type, steering cylinder

1шт.

17

A60212

O-RING

SEAL - O-ring, gland, steering cylinder

1шт.

18

A62070

RING

- gland, backup, steering cylinder

1шт.

19

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - O-ring, piston, steering cylinder

1шт.

20

A61430

SEALING RING

RING - piston, steering cylinder

1шт.

21

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- piston, 5/8" - 18 NF x 1-3/4", grade 8, steering cylinder

1шт.

22

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - piston bolt, steering cylinder

1шт.

G34820

CYLINDER END CAP

GLAND ASSEMBLY - with seals, Includes: Ref. 12, 15A, 16A, 17 and 18, Can be used to convert G34886 cylinder above into G100674 cylinder, steering; No Longer Available As An Assembly Order Components

1шт.
