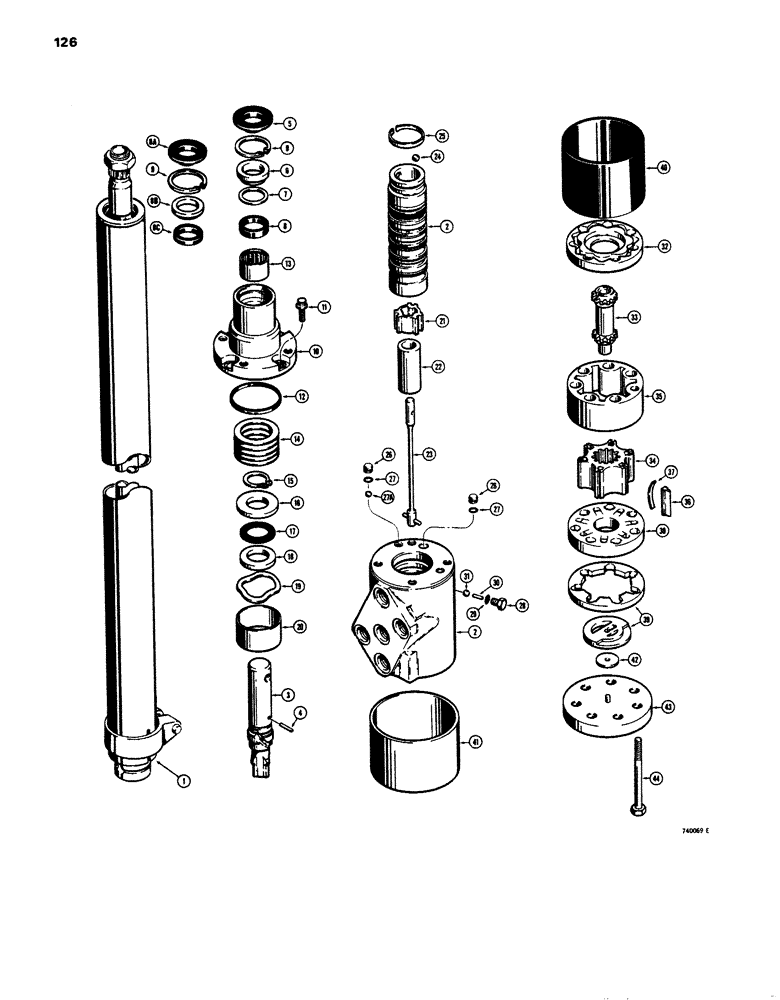

Запчасти Case 680E (126) - STEERING VALVE (41) - STEERING

L54773

STEERING COLUMN

ASSEMBLY - tractor, models without electric horn, Includes: Ref. 1 - 32

1шт.

L59941

STEERING COLUMN

ASSEMBLY - tractor, models with electric horn, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT AND TUBE - steering column, models without electric horn, figure 124

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT AND TUBE - steering column, models with electric horn, figure 124

1шт.

L36068

MOTOR HOUSING

VALVE ASSEMBLY - steering, Includes: Ref. 2 - 44

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL ASSEMBLY

1шт.

3

A43551

SHAFT

- input, pump

1шт.

4

D53297

PIN

- torsion bar retaining

1шт.

D65140

SEAL KIT

- shaft, order D73671 kit for service, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

6

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER - seal kit

1шт.

8

NSS

NOT SOLD SEPARAT

PACKING - input shaft

1шт.

D73671

SEAL

KIT - shaft, Includes: Ref. 8A - 8C

1шт.

8a

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- dust

1шт.

8b

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

8c

NSS

NOT SOLD SEPARAT

SEAL AND SPACER - shaft

1шт.

9

A21145

SNAP RING,1.25, Int, #125

RING Snap, 1.25", Int, #125, brg

1шт.

10

D65139

COVER

- upper, uses cast bushing surface

1шт.

11

A43567

BOLT

SCREW - 5/16" - 18 NC x 3/4"

4шт.

12

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- cover

1шт.

13

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - roller, needle, used with A43562 cover only

1шт.

14

A44435

SHIM

KIT - cover

1шт.

15

A43720

RING

- retaining, shaft

1шт.

16

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust

1шт.

17

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

18

F19634

BEARING WASHER

WASHER - thrust

1шт.

19

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave

1шт.

20

A43728

SPACER

- bearing

1шт.

21

A43554

RING

- drive

1шт.

22

L36070

SPACER

- drive link

1шт.

23

L36069

BRACKET

BAR - torsion

1шт.

24

211-9

BALL,5/16" Dia

- . 5/16" Dia

1шт.

25

A43560

SPRING

- preload

1шт.

L36015

PLUG

ASSEMBLY - valve, Includes: Ref. 26 and 27

1-2шт.

26

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

27

A43729

O-RING

- seal

1шт.

27a

211-7

BALL,1/4" Dia

- check 1/4" Dia

1шт.

F82943

VALVE

CHECK ASSEMBLY - ball type, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - check assembly

1шт.

29

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

30

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Check assembly 1/8" x 15/16", Slotted

1шт.

31

211-7

BALL,1/4" Dia

- check assembly 1/4" Dia

1шт.

32

A43569

BUSHING

SPACER - link

1шт.

L54773

STEERING COLUMN

ASSEMBLY - tractor, models without electric horn, Includes: Ref. 33 - 44

1шт.

L59941

STEERING COLUMN

ASSEMBLY - tractor, models with electric horn, Includes: Ref. 33 - 44

1шт.

33

A43568

LINK

- drive

1шт.

D66466

ROTOR

SET - valve, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

GEAR - star

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

36

L36076

PIVOT

VANE - valve star

6шт.

37

L36075

SPRING

- vane

6шт.

38

A43573

MANIFOLD

- valve

1шт.

39

A43574

COMMUTATOR

- valve

1шт.

40

L36072

SEAL

- rotor

1шт.

41

D71233

RETAINER

- seal

1шт.

42

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - wear, rotor

1шт.

43

A43580

COVER

- end

1шт.

44

NLS

NO LONGER SERVICED

HHCS - 5/16" - 18 NC x 3-1/4", special

7шт.
