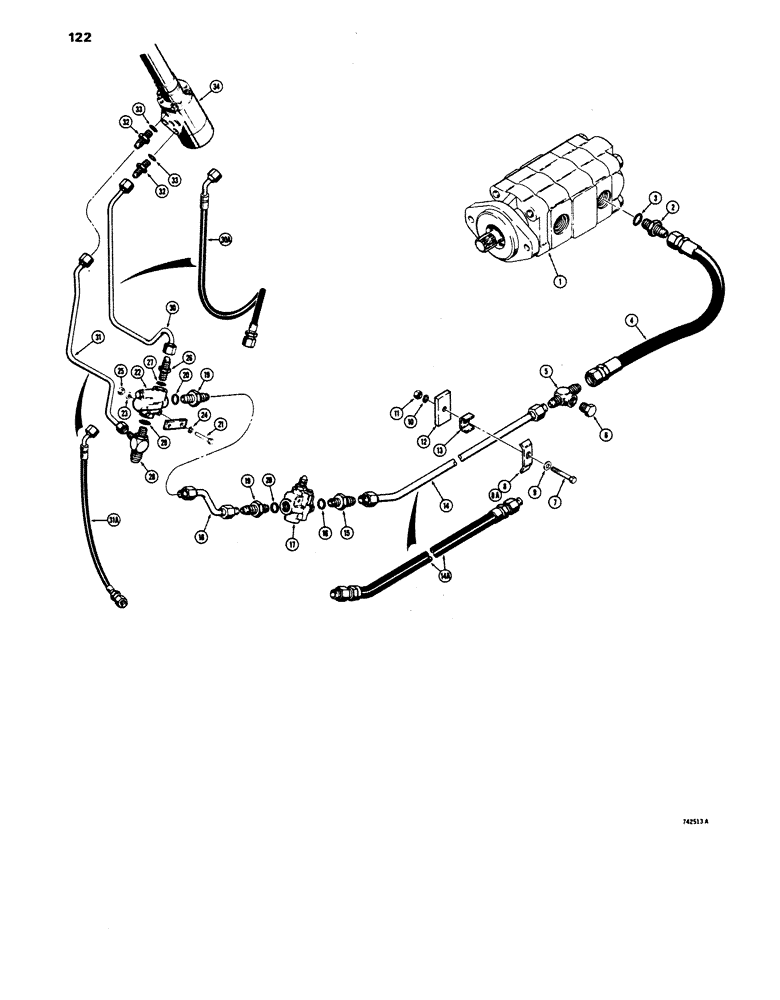

Запчасти Case 680E (122) - STEERING VALVE HYDRAULIC CIRCUIT, LATE PRODUCTION (41) - STEERING

1

L55247

PUMP

- hydraulic, equipment, figure 334

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male connector, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

L55955

HOSE ASSY.

HOSE - pump to relief valve, 26-1/2" (673 mm) long

1шт.

5

218-583

TEE,1 5/16"-12 x 1 1/16"-12, 37 Degree, 3/4"-14, NPTF Fem Br

- pressure check, steering valve

1шт.

6

218-665

TEE

PLUG - pressure check, 3/4" NPT

1шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

8

L17788

CLAMP

- used with tubes only

1шт.

8a

L59126

CLAMP - used with hoses, see Ref. 14A

1шт.

9

95-6

WASHER,3/8"

- flat, 3/4"

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

12

D37116

BLOCK - spacer, tube mounting

1шт.

13

L59801

CHANNEL - tube mounting, used with tubes only

1шт.

14

L59796

TUBE,1" OD x 27.08, 2.56" L

- to relief valve

1шт.

14a

L71569

HOSE - to relief valve, models with increased noise control, 29-1/4" (743 mm) long

1шт.

15

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector, Includes: Ref. 16

2шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

17

L59641

VALVE

- relief, hydraulic, figure 332

1шт.

18

L59790

TUBE,0.75" OD x 8.14, 3.38" L

- relief valve to flow divider valve

1шт.

19

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

21

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3"

2шт.

22

L54770

LOCK VALVE

VALVE - flow control, figure 330

1шт.

23

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 5/16"

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

26

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, male, Incl. Ref 27 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

28

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- adjustable, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- seal

1шт.

30

L55806

TUBE,0.5" OD

- upper port of flow control valve to steering valve

1шт.

30a

L71566

HOSE

- special, upper port of flow control valve to steering valve, models with increased noise control

1шт.

31

L55808

TUBE,0.5" OD

- lower port of flow control valve to steering valve

1шт.

31a

L71567

HOSE

- special, lower port of flow control valve to steering valve, models with increased noise control

1шт.

32

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING - straight, male connector, Includes: Ref. 33

2шт.

33

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

34

REF

INSTRUCTION

VALVE - steering control, see page 127 for proper valve

1шт.
