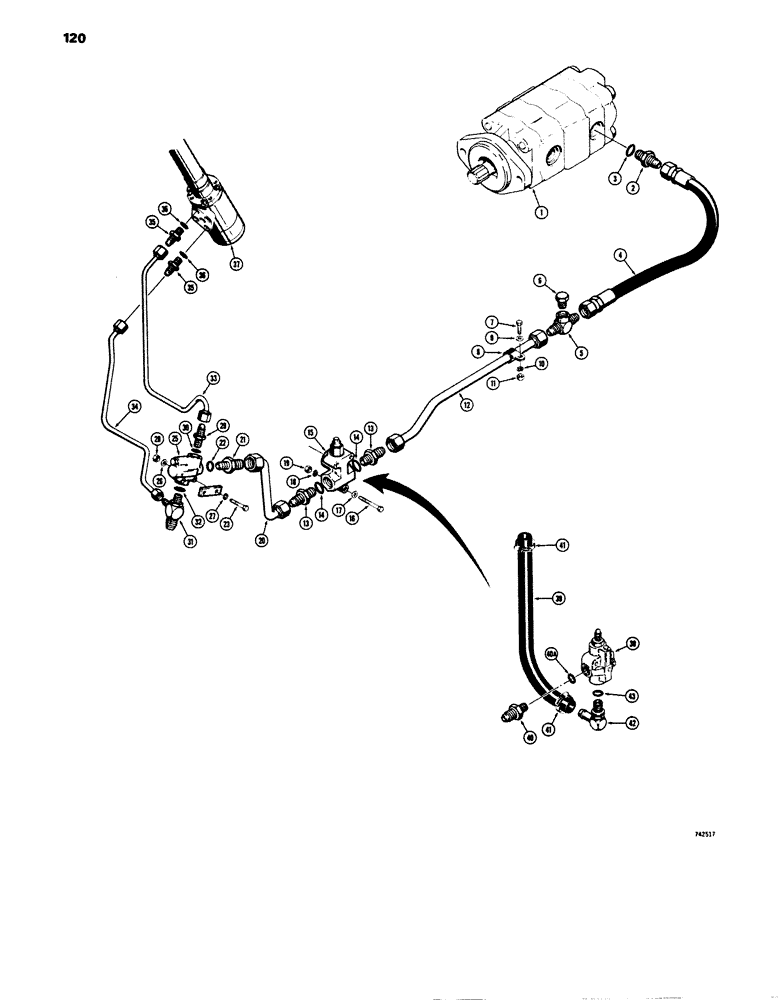

Запчасти Case 680E (120) - STEERING VALVE HYDRAULIC CIRCUIT, EARLY PRODUCTION (41) - STEERING

1

L55247

PUMP

- hydraulic, equipment, figure 334

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male connector, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

L55955

HOSE ASSY.

HOSE - pump to relief valve, 26-1/2" (673 mm) long

1шт.

5

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

FITTING - pressure check, 3-way

1шт.

6

218-665

TEE

PLUG - pressure check, 3/4" NPT

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube, 3/4" (19 mm) tube O.D.

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

12

L55802

TUBE,0.75" OD x 27.23, 2" L

- pump to relief valve

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male connector, Incl. Ref. 14

2шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

15

L54772

VALVE

- relief, hydraulic, figure 332

1шт.

Early production circuits used a Gresch manufactured relief valve, for service of complete relief valve, order L71138 relief valve kit

1шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

3шт.

17

195-104

WASHER,3/8"

- flat, 3/8"

3шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

3шт.

20

L55804

TUBE,0.75" OD x 8.87, 5.48" L

- relief valve to flow divider valve

1шт.

21

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

23

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3"

2шт.

24

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

25

L54770

LOCK VALVE

VALVE - flow control, figure 330

1шт.

26

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 5/16"

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, male, Incl. Ref 30 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

31

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

FITTING - adjustable, 3-way, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

33

L55806

TUBE,0.5" OD

- upper port of flow control valve to steering valve

1шт.

34

L55808

TUBE,0.5" OD

- lower port of flow control valve to steering valve

1шт.

35

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING - straight, male connector, Includes: Ref. 36

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

37

REF

INSTRUCTION

VALVE - steering control, see page 127 for proper valve

1шт.

L71138

LOCK VALVE

KIT - relief valve, Includes: Ref. 38 - 41

1шт.

38

L59641

VALVE

- relief, hydraulic, figure 332

1шт.

39

L71137

HOSE,1.00" ID x 26.00"

Return, Relief Valve 1.00" ID x 26.00"

1шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector

2шт.

40a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

41

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

42

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Includes Ref. 43

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.
