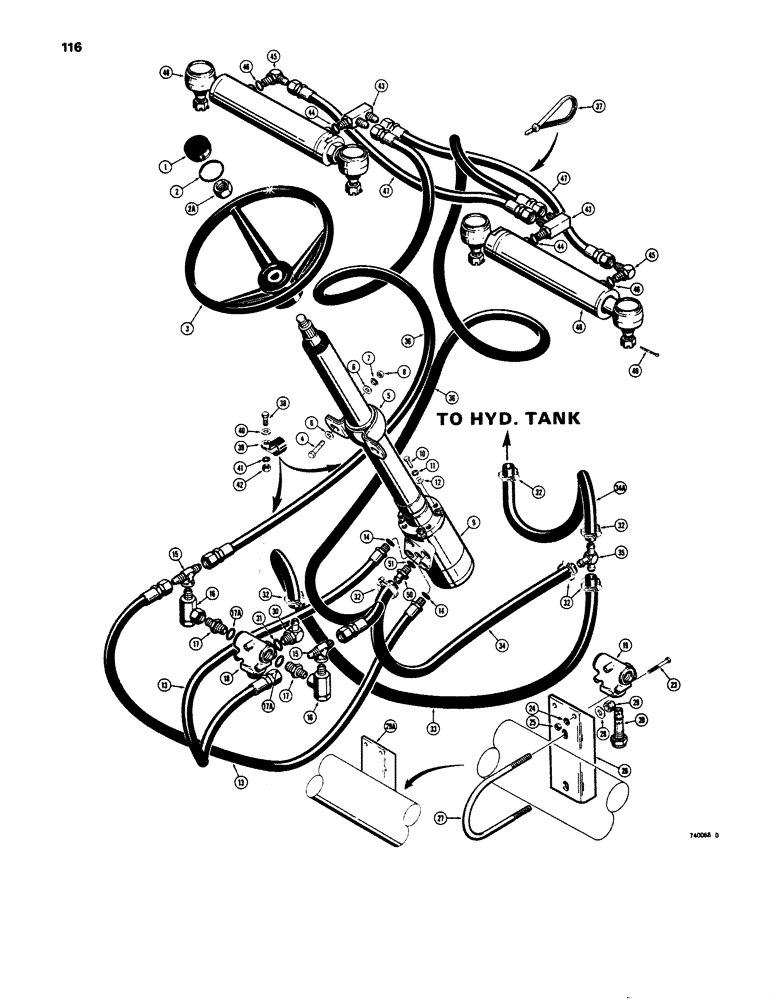

Запчасти Case 680E (116) - STEERING HYDRAULICS, MANUAL STEERING PUMP TO STEERING CYLINDERS (41) - STEERING

1

A62210

PLUG

CAP - steering wheel

1шт.

2

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RING - medallion retaining

1шт.

2a

A14567

JAM NUT

- hex., special (Steering wheel mounting)

1шт.

3

A65544

STEERING WHEEL

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

5

L45471

BEARING

- column support

1шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

9

REF

INSTRUCTION

GEAR AND VALVE - steering, see figure 124 and 126 for proper gear

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

11

92-5

LOCK WASHER,5/16"

3шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

3шт.

13

L59106

HOSE,0.38" ID x 17.00", SAE 100R1 Type A

ASSY, 0.38" ID x 17.00", SAE 100R1, Type A, Steering Valve to Relief Valve

2шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

15

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

FITTING - at check valve, 3-way

1шт.

16

L59038

LOCK VALVE

VALVE - check

2шт.

17

218-5442

HYD CONNECTOR,3/4"-16 O-Ring x 3/8" NPTF

FITTING - check valve to relief valve, Includes: Ref. 17A

2шт.

17a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

18

L59037

LOCK VALVE

VALVE - secondary relief, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

20

L36080

CARTRIDGE

ASSEMBLY - relief, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, non-adjustable, not shown

1шт.

22

R31000

SEAL KIT

KIT - repair, seal, not shown

1шт.

23

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

L59107

PLATE - mounting, relief valve, if used

1шт.

27

T31659

BOLT - "U" type, if used

1шт.

28

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

29

131-206

NUT,3/8"-16

NUT - hex., lock, 3/8" - 16 NC, if used

2шт.

29a

REF

INSTRUCTION

PLATE - mounting, relief valve, Serial Range: welded-chassis

1шт.

30

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

- 90 deg. adjustable, barb stem, Includes: Ref. 31

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

32

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

6шт.

33

L55952

HOSE,0.50" ID x 16.00", SAE 100R3

Return, Relief Valve to Tank 0.50" ID x 16.00", SAE 100R3

1шт.

34

L59112

HOSE,0.50" ID x 8.00", SAE 100R3

Return, Steering 0.50" ID x 8.00", SAE 100R3

1шт.

34a

L77374

HOSE - return, to tank 1/2" (13 mm) I.D. x 8" (203 mm) long

1шт.

35

L59109

TEE

FITTING - barb type, return hoses, 3-way

1шт.

36

L59105

HOSE ASSY.

HOSE -relief valve to steering cylinders, 85" (2159 mm) long

2шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose tie

2шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

39

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

4шт.

40

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

25-106

NUT,3/8"-16, G5

- HEX., 3/8" - 16 NC

4шт.

43

L57911

FITTING

- tee, special, closed end of steering cylinder, Includes: Ref. 44

2шт.

44

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

45

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - adjustable, 90 deg., rod end, Includes: Ref. 46

2шт.

46

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

47

L57299

HOSE ASSY.

HOSE - R.H. to L.H. steering cylinder, 36" (914 mm) long

2шт.

48

G34886

STEERING CYLINDER

CYLINDER - steering, figure 128

2шт.

50

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

- Hose stem, straight 1/2" Hose x 9/16"-18 ORB, Beaded

1шт.

51

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

49

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

PIN - cotter, 1/8" dia. x 1" (Replaces 132-48)

4шт.

17a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
