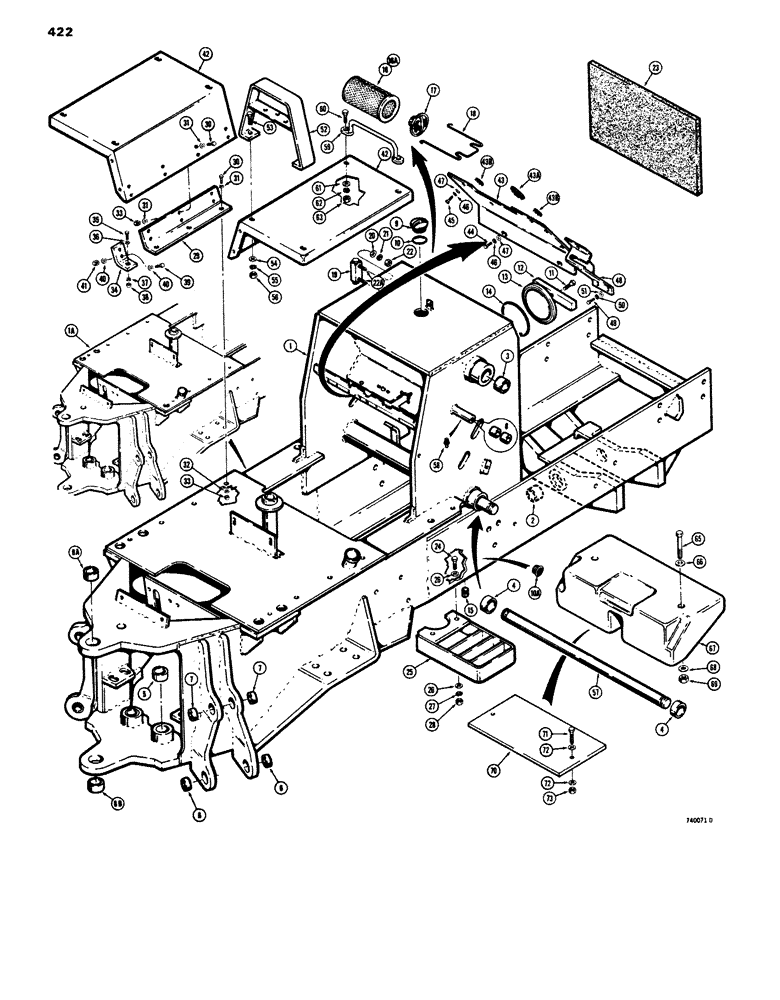

Запчасти Case 680E (422) - CHASSIS, FENDERS AND STEPS (39) - FRAMES AND BALLASTING

1

L55000

CHASSIS AND FRAME ASSEMBLY - tractor and backhoe, models with fuel filler in forward part of operator's compartment, Includes: Ref. 2 - 8B

1шт.

1a

L59800

CHASSIS AND FRAME ASSEMBLY - tractor and backhoe, models with fuel filler in rear part of operators compartment, used before tractor sn. 9122234, Includes: Ref. 2 - 8B

1шт.

2

L11494

BUSHING

- front axle pivot

2шт.

3

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- loader lift frame pivot

4шт.

4

D43508

BUSHING

- lift cylinder pivot

2шт.

5

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

6

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

7

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

8

L17421

BUSHING

- pivot, anti-rollback

2шт.

8a

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

- upper, swing tower mounting

1шт.

8b

L58870

BUSHING,54.2mm ID x 57.15mm OD x 31.75mm L

- lower, swing tower mounting

1шт.

9

A26009

PLUG

CAP - filler, hydraulic tank

1шт.

10

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- filler cap

1шт.

10a

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, if used

1шт.

11

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Cover

1шт.

12

L50741

BAR

- cover holddown

1шт.

13

L55406

COVER

- access, hydraulic filter

1шт.

14

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

- access cover

1шт.

15

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, 3/4" NPT, tank drain

1шт.

16

L59846

FILTER

- hydraulic tank, paper cartridge, order L72877

1шт.

16a

L72877

FILTER, ELEMENT

FILTER - hydraulic tank, metal cartridge

1шт.

17

L59847

VALVE

RELIEF VALVE - filter

1шт.

18

L52759

VALVE SPRING

SPRING - retainer, filter

1шт.

19

L53208

GAUGE

- hydraulic oil level, Includes: Ref. 20 - 22D

1шт.

20

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - gauge

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

131-402

NUT,PAL, 1/2"-20

NUT - hex., self lock, 1/2"

2шт.

22a

D75821

STUD

- mounting

2шт.

22b

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- end plugs to body, not shown

2шт.

22c

D75820

TUBE

- sight, internal, not shown

1шт.

22d

D75819

GASKET

- internal, sight tube, not shown

2шт.

23

L54670

INSULATOR

- heat, hydraulic tank, foam material

1шт.

24

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

25

L58575

STEP

- operator assist

2шт.

26

95-8

WASHER,1/2"

flat 1/2"

8шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

4шт.

29

L58516

BRACKET - fender mounting, used with L58550 fender

2шт.

29

L72166

ANGLE

BRACKET - fender mounting, used with L59933 fender

2шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

18шт.

31

95-6

WASHER,3/8"

- flat, 3/8"

30шт.

32

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat

6шт.

33

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

18шт.

34

L72634

ANGLE

- fender mounting, used on units without ROPS

2шт.

35

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

36

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

37

195-28

WASHER,3/8"

- flat, special

2шт.

38

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

40

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

41

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

42

L58550

FENDER

- rear wheel, R.H. and L.H. models with fuel filler in forward part of operator's compartment

2шт.

42

L59933

FENDER

- rear wheel, R.H. and L.H., models with fuel filler in rear part of operator's compartment, withough grab handle

2шт.

42

L73371

FENDER

- rear wheel, R.H. and L.H. models with fuel filler in rear part of operator's compartment, with grab handles

2шт.

43

L57897

PLATE

- cover, instrument wiring, for models with heater, see figures 88-92

1шт.

43a

353-255

PLUG,3 1/2"

- button head, 3-1/2", if used

1шт.

43b

353-580

PLUG,1"

- button head, , if used 1"

2шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

45

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

4шт.

47

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

48

L58657

PLATE - cover, instrument wiring, end

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

50

92-6

LOCK WASHER,3/8"

3шт.

51

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

52

L57910

BRACKET

- light, rear

2шт.

53

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

54

95-8

WASHER,1/2"

flat 1/2"

4шт.

55

92-8

LOCK WASHER,1/2"

4шт.

56

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

4шт.

57

REF

INSTRUCTION

SHAFT - lift cylinder mounting, see figure 372 for related parts

1шт.

58

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

59

L73545

HANDLE

- grab, mounted on fender

2шт.

60

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

61

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

62

92-6

LOCK WASHER,3/8"

4шт.

63

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

64

L15043

MAGNET

- hydraulic tank, not shown

1шт.

65

13-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

HHCS - 3/4" - 10 NC x 7-1/2"

2шт.

66

95-12

WASHER,3/4"

- flat, , upper 3/4"

2шт.

67

L74558

WEIGHT

COUNTERWEIGHT - front, 690 lbs (313 kg)

1шт.

68

195-45

WASHER,3/4"

Lower 3/4"

2шт.

69

25-1012

NUT,3/4"-10, G5

2шт.

70

L59642

PLATE - pump guard, used with 4-in-1 bucket only

1шт.

71

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Used with 4-in-1 bucket only Hex, 3/4"-10 x 2 1/2", G5

2шт.

72

95-12

WASHER,3/4"

- flat, , used with 4-in-1 bucket only 3/4"

4шт.

73

25-1012

NUT,3/4"-10, G5

Used with 4-in-1 bucket only 3/4"-10, G5

2шт.
