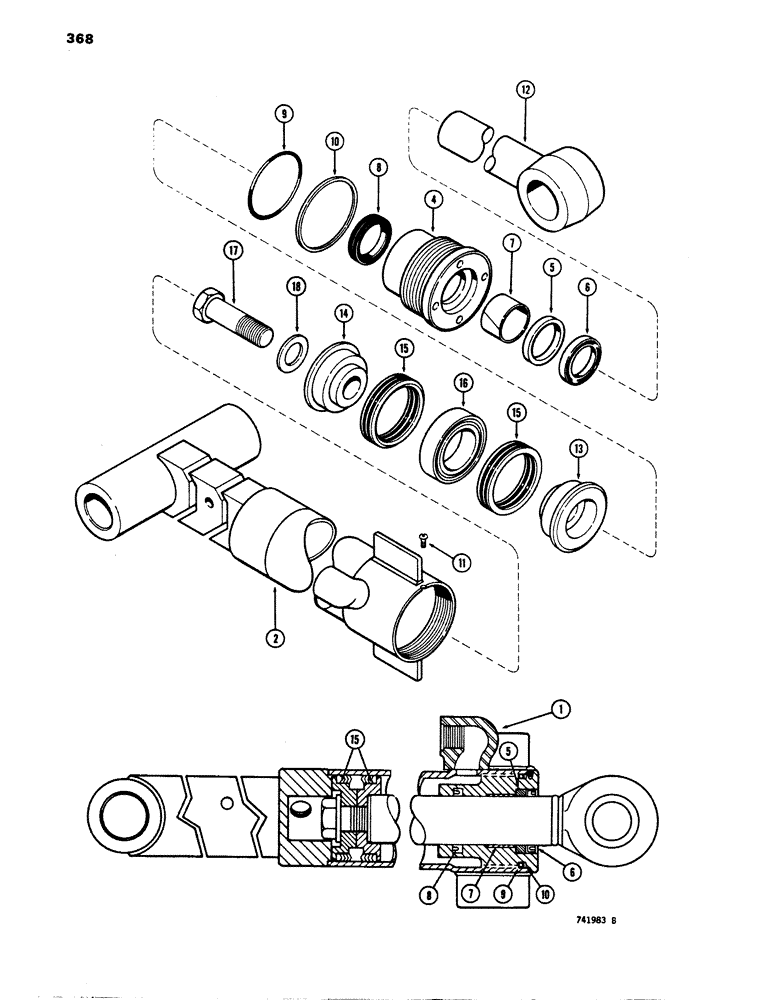

Запчасти Case 680E (368) - G34426 BACKHOE DIPPER EXTENSION CYLINDER, WITH TWO PIECE (35) - HYDRAULIC SYSTEMS

1

G34426

CYLINDER

ASSEMBLY - dipper extension, 3" (76 mm) x 48" (1219 mm) stroke, Includes Ref. 2 - 18

1шт.

2

G34427

TUBE,78.81 mm L

- cylinder

1шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

7

G34302

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

8

D36969

CUP

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

Part of Piston Rod Seal Kit, P/N G100778

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4", self tapping

1шт.

12

G34432

ROD

- piston, 1-1/2" (38 mm) O.D.

1шт.

13

G33150

PISTON

- split, rod end

1шт.

14

D28366

PISTON

- split, bolt end

1шт.

G33151

PACKING

- piston, Includes Ref. 15 and 16

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - piston, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G34332

SEAL

KIT - cylinder repair, Includes: Ref. 6-10 and P/N G33151

1шт.

G100778

SEAL

- piston rod, service option-extreme heat or cold

1шт.
