Запчасти Case 680E (364) - G34662 BACKHOE BUCKET CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

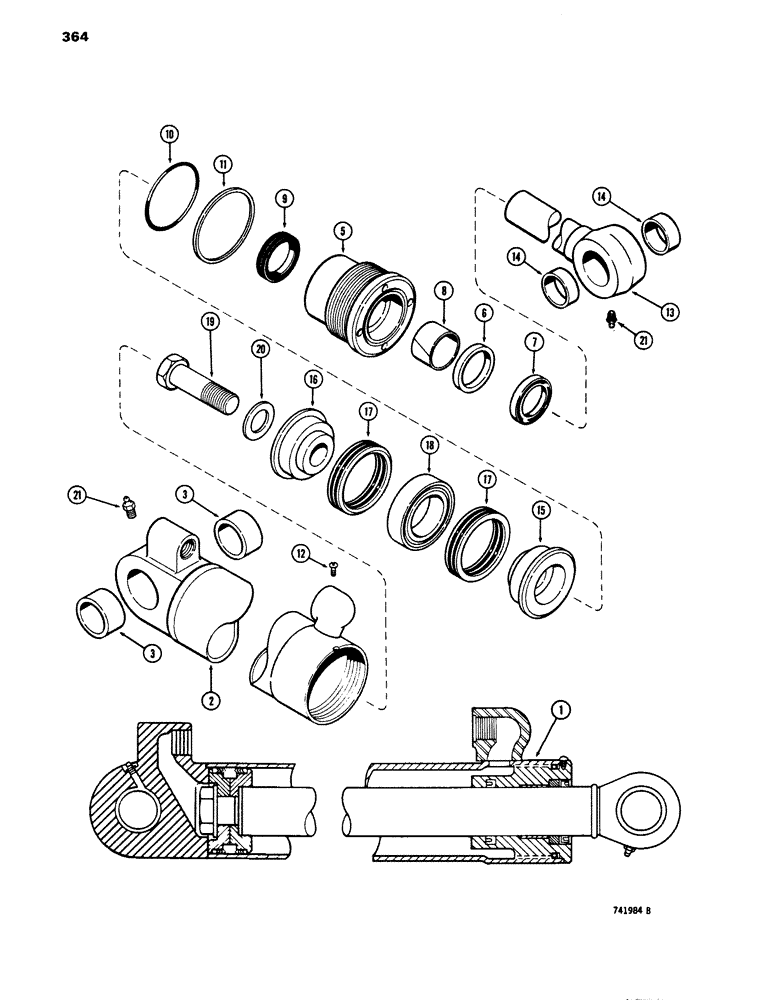

Схема запчастей Case 680E - (364) - G34662 BACKHOE BUCKET CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G34662

CYLINDER BLOCK

CYLINDER - bucket, 4" (102 mm) I.D. x 27-1/4" (692 mm) stroke, Includes Ref. 2 - 21

1шт.

2

G34710

TUBE,35.69" L

- cylinder, Includes Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G34635

GLAND

ASSEMBLY - cylinder, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

8

G34620

BUSHING

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

Part of Piston Rod Seal Kit, P/N G100779

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4", self tapping

1шт.

13

G34714

ROD

ASSEMBLY - piston, 2-1/4" (57 mm) O.D., Includes Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

15

D49168

PISTON

- split, rod end

1шт.

16

D46930

PISTON

- split, bolt end

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

20

G32351

WASHER

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G34636

SEAL

KIT - cylinder repair, Includes: Ref. 7-11 and 17

1шт.

G100779

SEAL

- piston rod, service option-extreme heat or cold

1шт.

Выбрано товаров: 30
