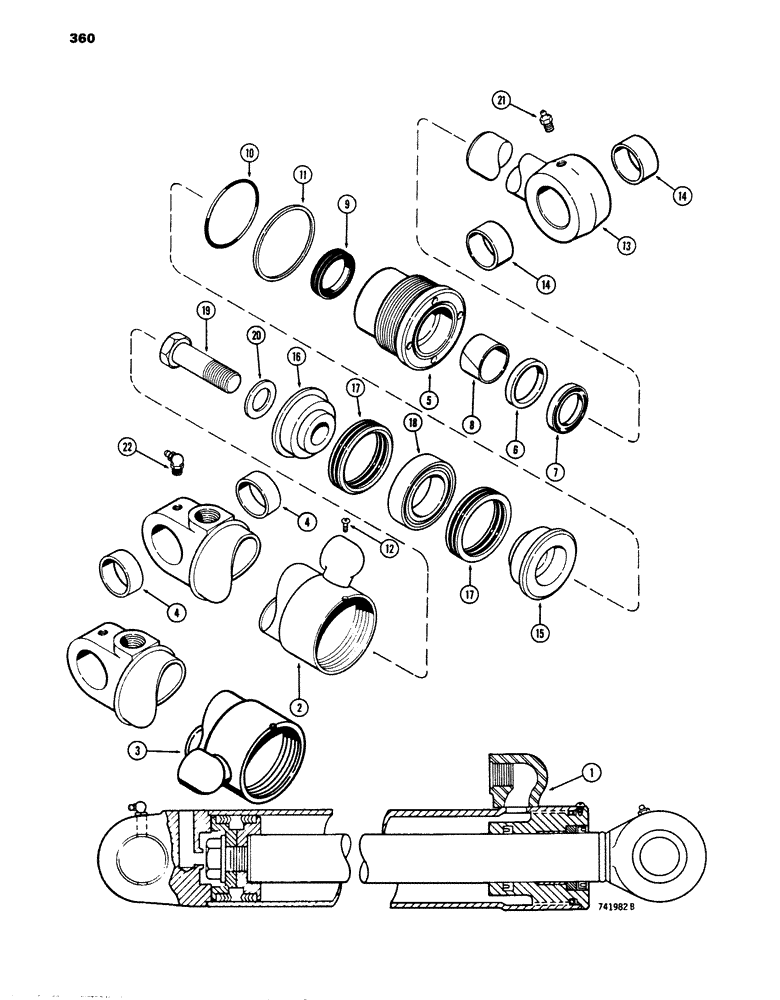

Запчасти Case 680E (360) - G34323 AND G100004 DIPPER CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G34323

CYLINDER - dipper, 4-1/2" (114 mm) I.D. x 40-1/8" (1019 mm) stroke, Includes Ref. 2 - 22

1шт.

1

G100004

SPARE PART

CYLINDER - dipper, 4-1/2" (114 mm) I.D. x 40-1/8" (1019 mm) stroke, Includes Ref. 2 - 22

1шт.

2

G34256

TUBE,49.56" L

- cylinder, G34323 cylinder only, Includes Ref. 3

1шт.

3

G100005

TUBE,49.25" L

- cylnder, G100004 cylinder only, Includes Ref. 3

1шт.

4

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G34329

GLAND

ASSEMBLY - cylinder, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34333

1шт.

8

G34307

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit P/N G34333

1шт.

9

D45571

ROD

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34333

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34333

1шт.

11

G32284

BACK-UP RING

- backup

1шт.

Part of Cylinder Repair Seal Kit P/N G34333

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4", self tapping

1шт.

13

G34324

ROD

ASSEMBLY - piston, 2-1/2: (63 mm) O.D., Includes Ref. 14

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

D49163

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, blot end

1шт.

17

D47205

PACKING

- piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G34333

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8, Piston

1шт.

20

G32351

WASHER

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1-2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

G34333

SEAL

KIT - cylinder repair, Includes: Ref. 7-11 and 17

1шт.

G100780

SEAL

- piston rod, service option-extreme heat or cold

1шт.
