Запчасти Case 680E (356) - G34821 BACKHOE BOOM CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

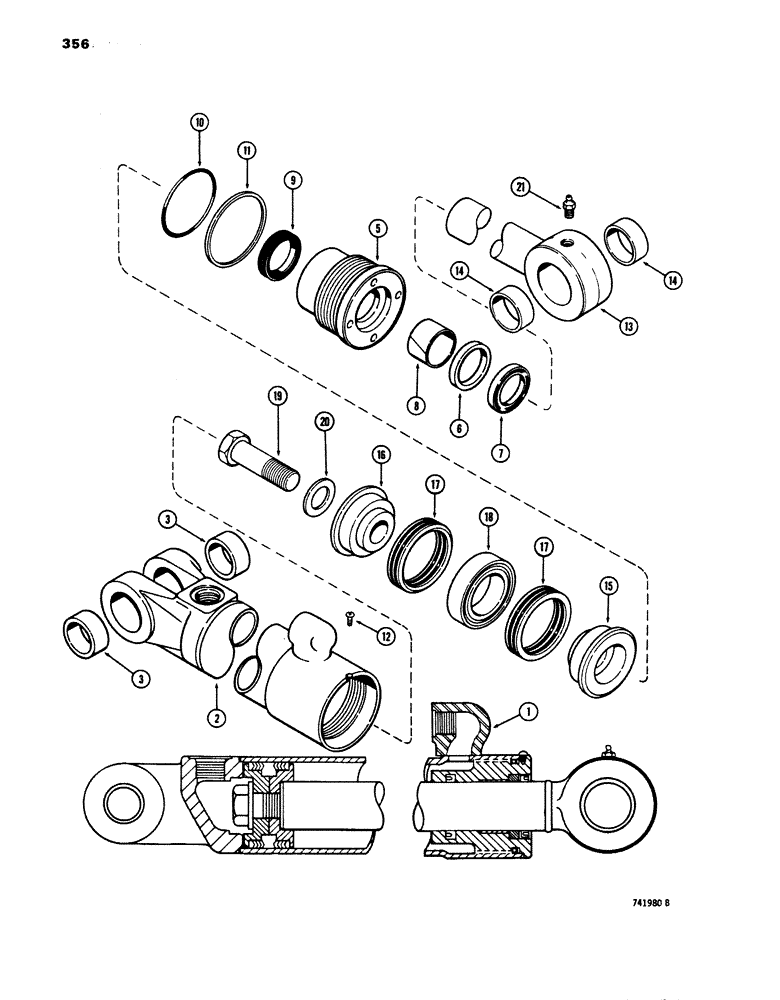

Схема запчастей Case 680E - (356) - G34821 BACKHOE BOOM CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G34821

HYDRAULIC CYLINDER

CYLINDER - boom, 4" (102 mm) I.D. x 41-3/16" (1046 mm) stroke, Includes Ref. 2 - 21

1шт.

2

G34822

TUBE,52.50" L

- cylinder, Includes Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G34635

GLAND

ASSEMBLY - cylinder, Includes Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34827

1шт.

8

G34620

BUSHING

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit P/N G34827

1шт.

9

D39359

RUBBER SEAL

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34827

1шт.

Part of Piston Rod Seal, P/N G100779

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34827

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Seal Kit P/N G34827

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4", self tapping

1шт.

13

G34848

ROD

- piston, 2-1/4" (57 mm) O.D., Includes Ref. 14

1шт.

14

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- piston rod

2шт.

15

D49168

PISTON

- split, rod end

1шт.

16

D46930

PISTON

- split, bolt end

1шт.

G33239

PACKING

- piston, Includes Ref. 17 and 18

1шт.

Part of Cylinder Repair Seal Kit P/N G34827

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

20

G32351

WASHER

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34827

SEAL

KIT - cylinder repair, includes: Ref. 7-11 and P/N G34827

1шт.

G100779

SEAL

- piston rod, service option-extreme heat or cold

1шт.

Выбрано товаров: 31
