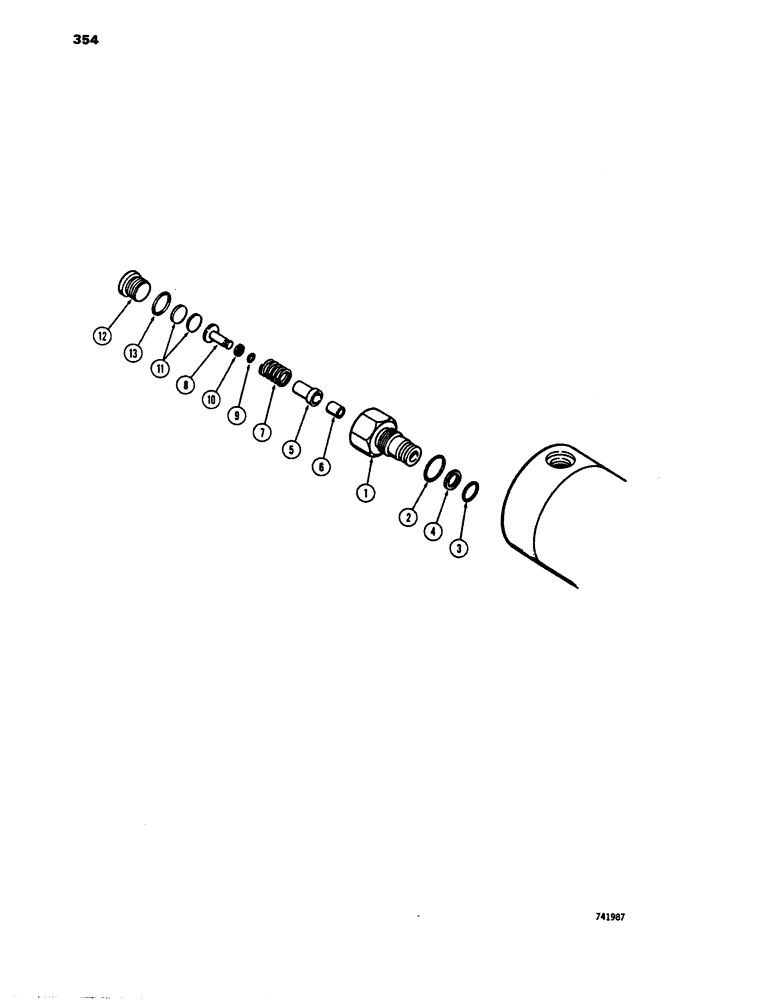

Запчасти Case 680E (354) - D47557 RELIEF VALVE, USED BEFORE SN 9124799, L78723 RELIEF VALVE USED ON SN. 9124799 AND AFTER (35) - HYDRAULIC SYSTEMS

D47557

VALVE

ASSEMBLY - relief, for service order L78723, Includes Ref. 1 - 13

1шт.

1

D47667

CAP

BODY - relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

3

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- body

1шт.

4

D37071

RING

- O-ring back-up

1шт.

5

D37151

PLUNGER

- relief valve

1шт.

6

D37075

SEAT

- plunger

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37150

GUIDE

- plunger spring

1шт.

9

T41959

O-RING

- spring guide

1шт.

10

D37147

RING

- O-ring back-up

1шт.

11

D40355

SHIM,.005" Thk

Spring guide (0.127 mm) .005" Thk

1шт.

11

16917

SHIM

- spring guide, 0.10" (0.254 mm)

1шт.

12

D40354

PLUG

- relief valve, Includes Ref. 13

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

L78723

LOCK VALVE

VALVE ASSEMBLY - relief, Includes Ref. 1 - 13

1шт.

1

D47667

CAP

BODY - relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

3

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- body

1шт.

4

D37071

RING

- O-ring back-up

1шт.

5

D37054

SPOOL

PLUNGER - relief valve

1шт.

6

D37075

SEAT

- plunger

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37073

GUIDE

- plunger spring

1шт.

9

D40356

O-RING

- spring guide

1шт.

10

D40357

RING

- O-ring back-up

1шт.

11

R33411

SHIM,.0105" Thk

Spring guide .0105" Thk

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Relief valve, Incl Ref 13 Hex Soc, 3/4"-16 ORB

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
