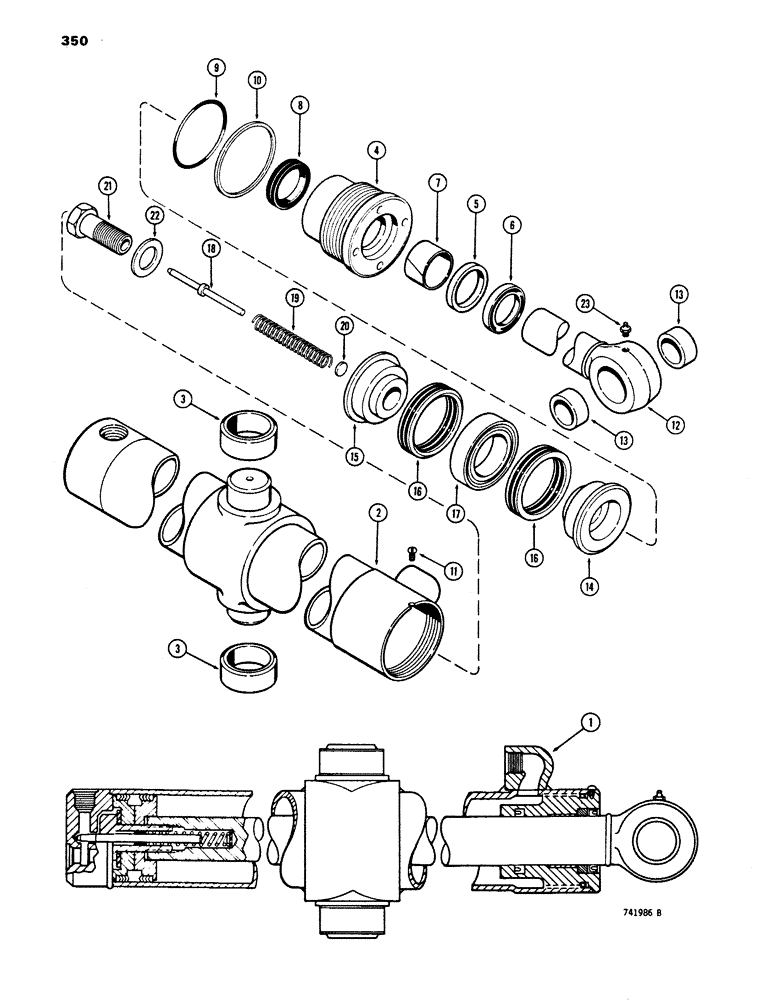

Запчасти Case 680E (350) - G34880 BACKHOE SWING CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G34880

CYLINDER ASSY.

CYLINDER - swing, 4" (101 mm) I.D. x 11-1/4" (285 mm) stroke, Includes Ref. 2 - 23

1шт.

2

G34877

CYLINDER,101.47 mm ID x 101.6 mm DIA x 471.4 mm L

TUBE - cylinder, Includes Ref.

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34594

1шт.

7

G34322

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34594

1шт.

8

D36971

RING

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34594

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34594

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Seal Kit P/N G34594

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 x 1/4", self tapping

1шт.

12

G34775

ROD ASSY.

ROD - piston, 2" (51 mm) O.D., Includes Ref. 13

1шт.

13

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

- piston rod

2шт.

14

G33159

PISTON

- split, rod end

1шт.

15

D49161

PISTON

- split, bolt end

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G34594

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

18

G34882

AXLE PIN

PIN - cushion relief

1шт.

19

D38683

SPRING

- cushion relief

1шт.

20

D38684

SPACER

- cushion relief spring, if used

1шт.

20

211-14

BALL,9/16" Dia

- cushion relief spring, if used, not shown

1шт.

21

G34885

BOLT

BOLT - piston and cushion relief

1шт.

22

G32351

WASHER

- bolt

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - cylinder repair, Includes: Ref. 6-10 and 16

1шт.

G100778

SEAL

- piston rod, service option-extreme heat or cold

1шт.
