Запчасти Case 680E (349A) - G102276 BACKHOE STABILIZER CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

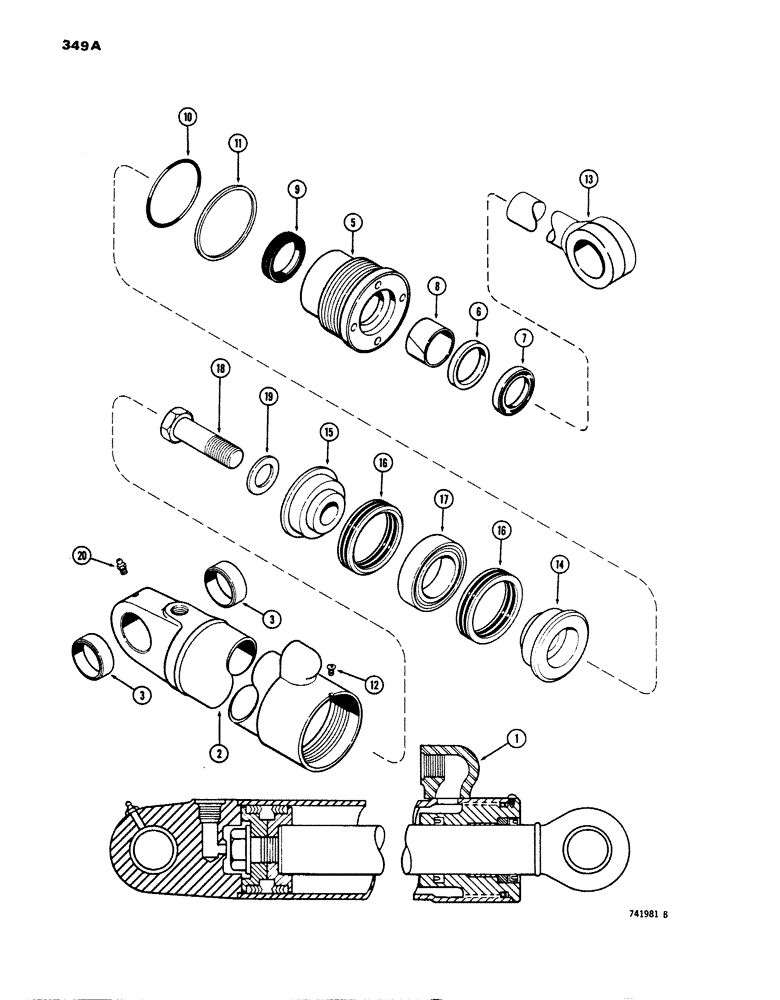

Схема запчастей Case 680E - (349A) - G102276 BACKHOE STABILIZER CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G102276

CYLINDER

- stabilizer, 4-1/2" (114 mm) I.D. x 22-3/8" (568 mm) stroke, Includes Ref. 2 - 20

1шт.

2

G102277

TUBE,31.79" L

- cylinder, Includes Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube

2шт.

G34397

GLAND

ASSEMBLY - cylinder, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34644

1шт.

8

G34322

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34644

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34644

1шт.

Part of Piston Rod Seal Kit, P/N G100778

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34644

1шт.

11

G32284

BACK-UP RING

- backup

1шт.

Part of Cylinder Repair Seal Kit P/N G34644

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4", self tapping

1шт.

13

G102280

ROD

- piston, 2" (51 mm) O.D.

1шт.

14

G33634

PISTON

- split, rod half

1шт.

15

D46931

PISTON

- split, bolt half

1шт.

16

D47205

PACKING

- piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G34644

1шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

18

28-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

HHCS - piston, 1-1/2" - 12 NF x 2-1/2", grade 8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34644

SEAL

KIT - cylinder repair, Includes: Ref. 7-11 and 16

1шт.

G100778

SEAL

- piston rod, service option-extreme heat or cold

1шт.
