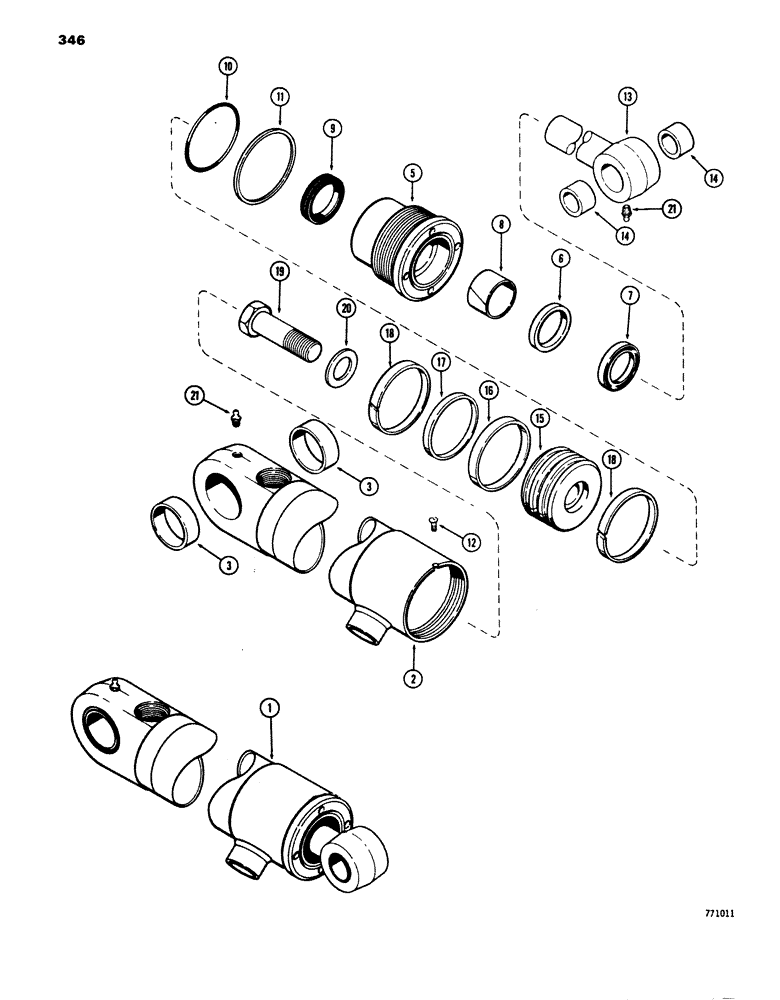

Запчасти Case 680E (346) - G101226 AND G101227 LOADER CLAM CYLINDER, WITH ONE PIECE (35) - HYDRAULIC SYSTEMS

1

G101226

CYLINDER ASSY.

CYLINDER - clam, R.H., 3" (76 mm) I.D. x 10-1/2" (266 mm) stroke, Includes Ref. 2 - 21

1шт.

1

G101227

CYLINDER ASSY.

CYLINDER - clam, L.H., 3" (76 mm) I.D. x 10-1.2" (266 mm) stroke, Includes Ref. 2 - 21

1шт.

2

D46911

CYLINDER

TUBE ASSEMBLY - R.H. cylinder, Includes Ref. 3

1шт.

2

D46910

TUBE

ASSEMBLY - L.H. cylinder, Includes Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G102404

1шт.

8

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G102402

1шт.

9

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G102402

1шт.

Part of Piston Rod Seal, P/N G100776

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102402

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102402

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

13

G33467

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) O.D., Includes Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

15

G100442

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G102402

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of Seal Kit P/N G102402

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G102402

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G102404

SEAL

KIT - seal, Includes: Ref. 7-11 and 16-18

1шт.

G100776

SEAL

- piston rod, service option-extreme heat or cold

1шт.
