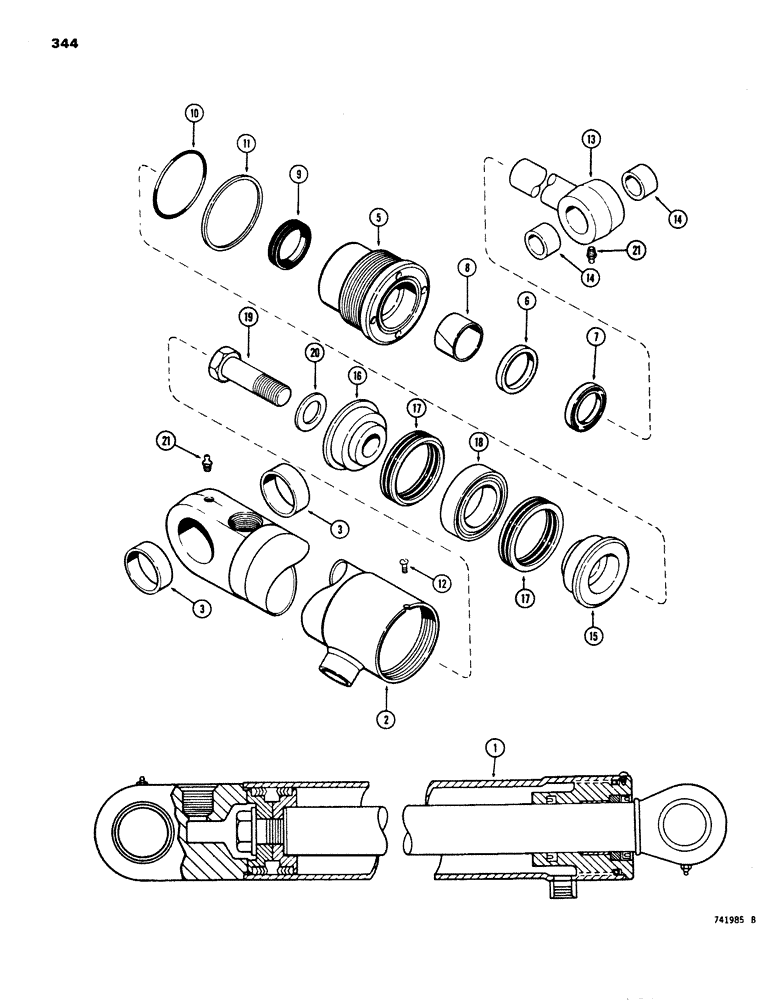

Запчасти Case 680E (344) - G33770 AND G33771 DROTT CLAM CYLINDERS, WITH TWO PIECE (35) - HYDRAULIC SYSTEMS

1

G33770

HYDRAULIC CYLINDER

CYLINDER - clam, R.H., 3" (76 mm) I.D. x 10-1/2" (266 mm) stroke, Includes Ref. 2 - 21

1шт.

1

G33771

CYLINDER BLOCK

CYLINDER - clam, L.H., 3" (76 mm) I.D. x 10-1/2" (266 mm) stroke, Includes Ref. 2 - 21

1шт.

2

D46911

CYLINDER

TUBE - cylinder R.H., Includes Ref. 3

1шт.

2

D46910

TUBE

- cylinder, L.H., Includes Ref. 3

1шт.

3

1336866C1

MOTOR

BUSHING - tube

2шт.

4

G34328

GLAND

ASSEMBLY - not shown, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

8

G34302

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

9

D36969

CUP

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

Part of Piston Rod Seal, P/N G100776

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 x 1/4" self tapping

1шт.

13

G33467

ROD

- piston, 1-1/2" (38.1 mm) O.D., Includes Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

15

G33150

PISTON

- split, rod end

1шт.

16

D28366

PISTON

- split, bolt end

1шт.

G33151

PACKING

- piston, Includes Ref. 17 and 18

1шт.

Part of Cylinder Repair Seal Kit P/N G34332

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - piston, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G34332

SEAL

KIT - cylinder repair, Includes: Ref. 7-11 and P/N G34332

1шт.

G100776

SEAL

- piston rod, service option-extreme heat or cold

1шт.
