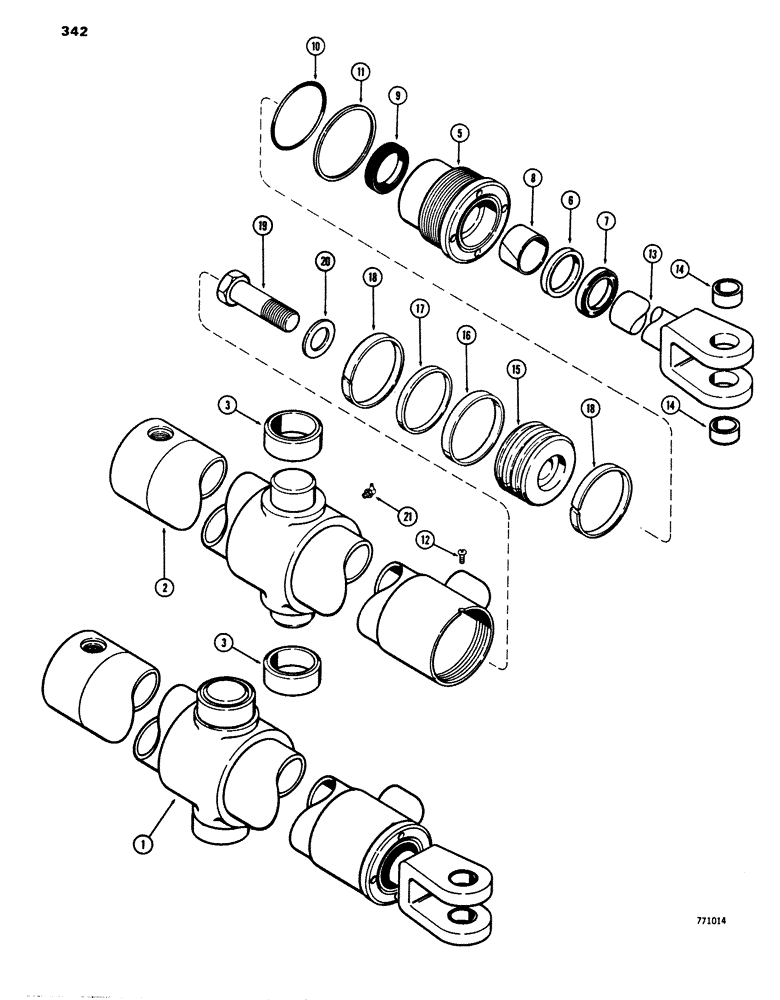

Запчасти Case 680E (342) - G101220 LOADER BUCKET TILT CYLINDERS, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G101220

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, 3" (76 mm) I.D. x 23-1/2" (597 mm) stroke, Includes Ref. 2 - 21

2шт.

2

D35102

TUBE

ASSEMBLY - cylinder, Includes Ref. 3

1шт.

3

D31511

BUSHING

- tube

2шт.

G34633

GLAND

ASSEMBLY - cylinder, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

G34600

RING

- retaining (Replaces NSS)

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G102405

1шт.

8

PG34621

WASHER

BEARING - center

1шт.

Part of Seal Kit P/N G102405

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G102405

1шт.

Part of Piston Rod Seal, P/N G100777

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102405

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102405

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

13

G33563

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) O.D., Includes Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G100704

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G102405

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of Seal Kit P/N G102405

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G102405

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 deg., 1/8" NPT

1шт.

G102405

SEAL

KIT - seal, Includes: Ref. 7-11 and 16-18

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option-extreme heat or cold

1шт.
