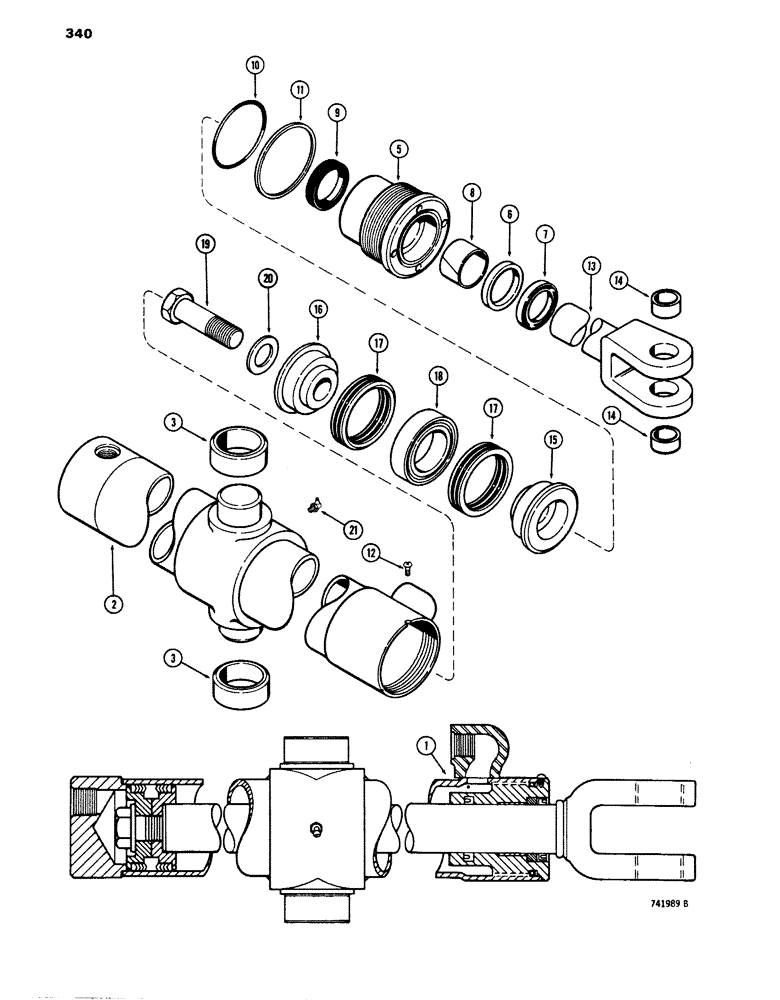

Запчасти Case 680E (340) - G33562 LOADER BUCKET TILT CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G33562

CYLINDER

- bucket, 3" (76 mm) I.D. x 23-1/2" (597 mm) stroke, Includes Ref. 2 - 21

2шт.

2

D35102

TUBE

- cylinder, Includes Ref. 3

1шт.

3

D31511

BUSHING

- tube

2шт.

G34633

GLAND

ASSEMBLY, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

G34600

RING

- retaining (Replaces NSS)

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34643

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34643

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34643

1шт.

Part of Piston Rod Seal, P/N G100777

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34643

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4" self tapping

1шт.

13

G33563

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) O.D., Includes Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33331

PISTON

- split, rod end

1шт.

16

D28896

PISTON

- split, bolt end

1шт.

G33151

PACKING

- piston, Includes Ref. 17 and 18

1шт.

Part of Cylinder Repair Seal Kit P/N G34643

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 deg., 1/8" NPT

1шт.

G34643

GASKET KIT

SEAL KIT - cylinder repair, Includes: Ref. 7-11 and P/N G33151

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option-extreme heat or cold

1шт.
