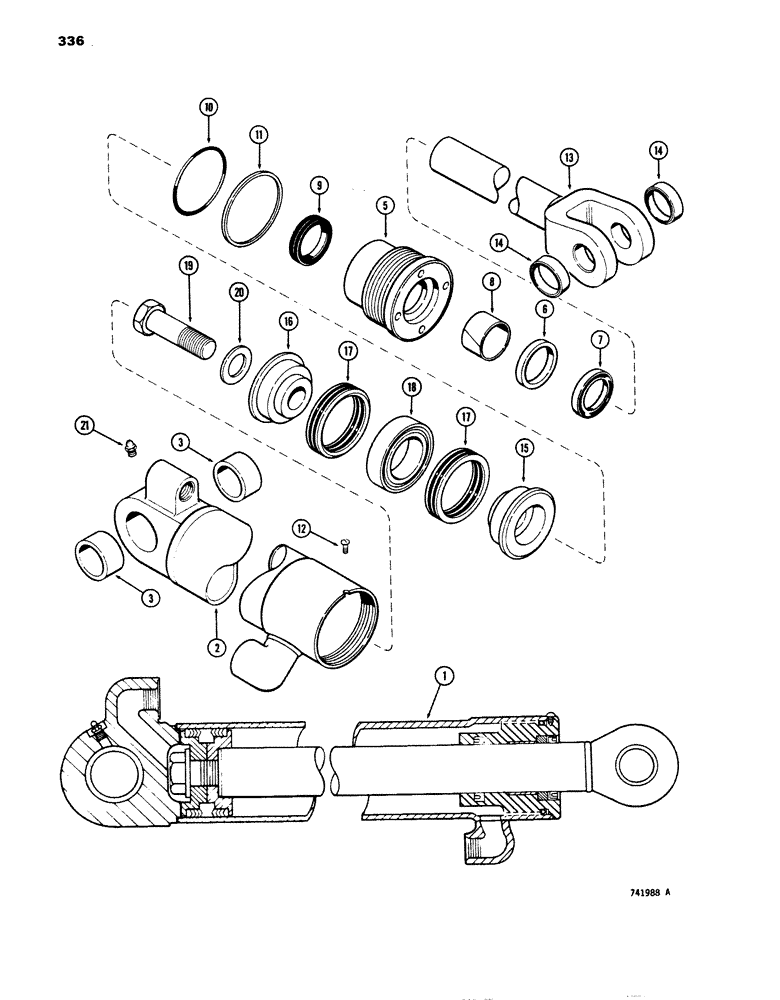

Запчасти Case 680E (336) - G34663 AND G34664 LOADER LIFT CYLINDER, WITH TWO PIECE (35) - HYDRAULIC SYSTEMS

1

G34663

CYLINDER

- lift, R.H., 3-1/2" (89 mm) I.D. x 31" (787 mm) stroke, Includes Ref. 2 - 21

1шт.

1

G34664

CYLINDER

- lift, L.H., 3-1/2" (89 mm) I.D. x 31" (787 mm) stroke, Includes Ref. 2 - 21

1шт.

2

G34717

TUBE

- cylinder, R.H., Includes Ref. 3

1шт.

2

G34716

TUBE ASSY.,38.63" L

TUBE - cylinder, L.H., Includes Ref. 3

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

- tube

2шт.

G54629

GLAND ASSEMBLY, Includes Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34630

1шт.

8

G34322

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34630

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G34630

1шт.

Part of Piston Rod Seal, P/N G100778

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit P/N G34630

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Cylinder Repair Seal Kit P/N G34630

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 NC x 1/4", self tapping

1шт.

13

G33604

ROD

- piston, 2" (51 mm) O.D., Includes Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G33167

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes Ref. 17 and 18

1шт.

Part of Cylinder Repair Seal Kit P/N G34630

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34630

SEAL

KIT - cylinder repair, Includes: Ref. 7-11 and P/N G33237

1шт.

G100778

SEAL

- piston rod, service option-extreme heat or cold

1шт.
