Запчасти Case 680E (334) - L55247 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

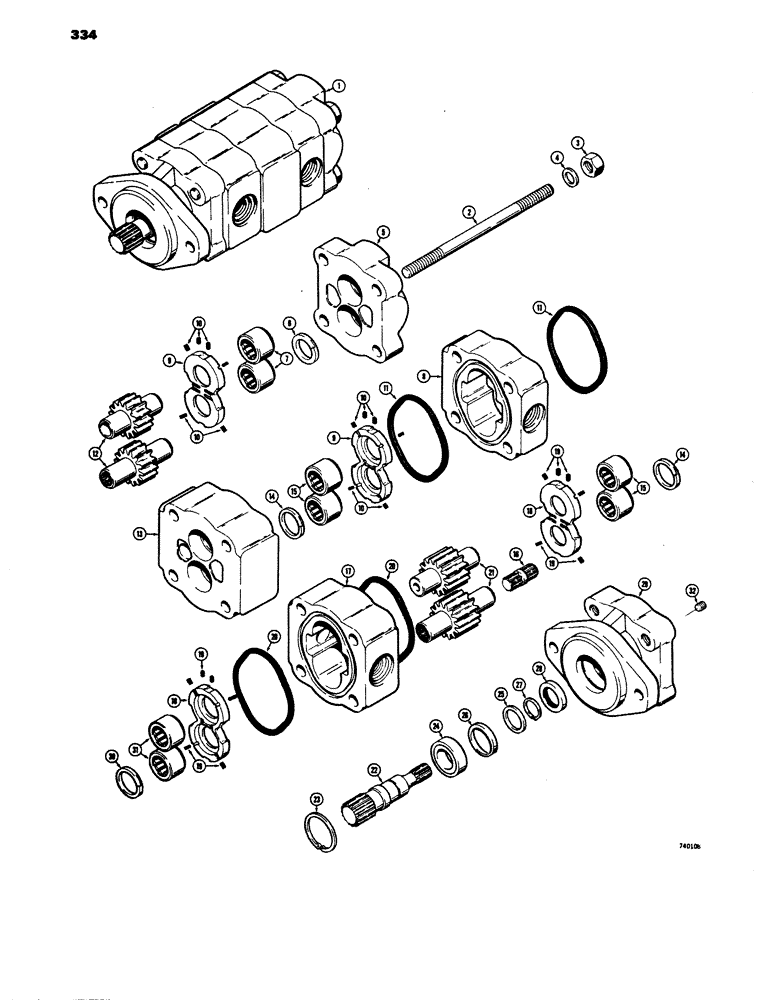

Схема запчастей Case 680E - (334) - L55247 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

L55247

PUMP

ASSEMBLY - hydraulic, Commercial Shearing #C230-138, Includes Ref. 2 - 32

1шт.

2

L32111

STUD

- special, 5/8" - 11 NC x 9-3/4"

4шт.

3

86625068

NUT,5/8"-11, G8

- hex., 5/8" - 11 NC

4шт.

4

D31957

WASHER

- special

4шт.

L32109

COVER

ASSEMBLY - closed end, Includes Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

6

L32096

RING

- seal, bronze

1шт.

7

L32097

BEARING, ROLLER, CYL

- roller

2шт.

L35992

HOUSING

ASSEMBLY - gear, 1" (25.4 mm) wide gears, Includes Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

NSS gear housing - If one of the 2 side holes needs to be plugged, use a 1 5/16" JIC thread plug - 12 threads per inch (not SPS item).

1шт.

9

L32101

PLATE

- thrust

2шт.

10

L32099

SEAL

- pocket, thrust plate

12шт.

11

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- ring, square edge

2шт.

12

L32107

GEAR

- matched set, drive and driven, 1" (25.4 mm) wide

1шт.

L35991

CARRIER

ASSEMBLY - bearing, Includes Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - bearing

1шт.

14

L32096

RING

- seal, bronze

2шт.

15

L32097

BEARING, ROLLER, CYL

- roller

4шт.

16

L32104

SHAFT

- connecting, drive gears

1шт.

L35990

HOUSING ASSY.

HOUSING ASSEMBLY - gear, 1-1/2" (38.1 mm) wide gears, Includes Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

18

L32101

PLATE

- thrust, Includes Ref. 19 and 20

2шт.

L32101 thrust plate - This is part of the L35990 housing assy.

1шт.

19

L32099

SEAL

- pocket, thrust plate

12шт.

20

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- ring, square edge

2шт.

21

L32102

GEAR WHEEL

GEAR - matched set, drive and driven, 1-1/2" (38.1 mm) wide

1шт.

22

L32098

SHAFT

- drive pump

1шт.

23

71466

SNAP RING,#206, 2.190", Int, Spiral

RING - retaining

1шт.

24

NLS

NO LONGER SERVICED

BEARING - drive shaft

1шт.

25

L32092

WASHER

RETAINING - bearing

1шт.

26

L35989

SPACER

- bearing, drive shaft

1шт.

27

B18208

SNAP RING,#100, Ext

1шт.

28

L32093

SEAL

- lip, drive shaft

1шт.

L32094

COVER ASSY

COVER ASSEMBLY - shaft end, Includes Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

30

L32096

RING

- seal, bronze

1шт.

31

L32097

BEARING, ROLLER, CYL

- roller

2шт.

32

L32320

PLUG

SCREW - special, 7/16" - 20 NF x 3/8"

1шт.

Выбрано товаров: 39
