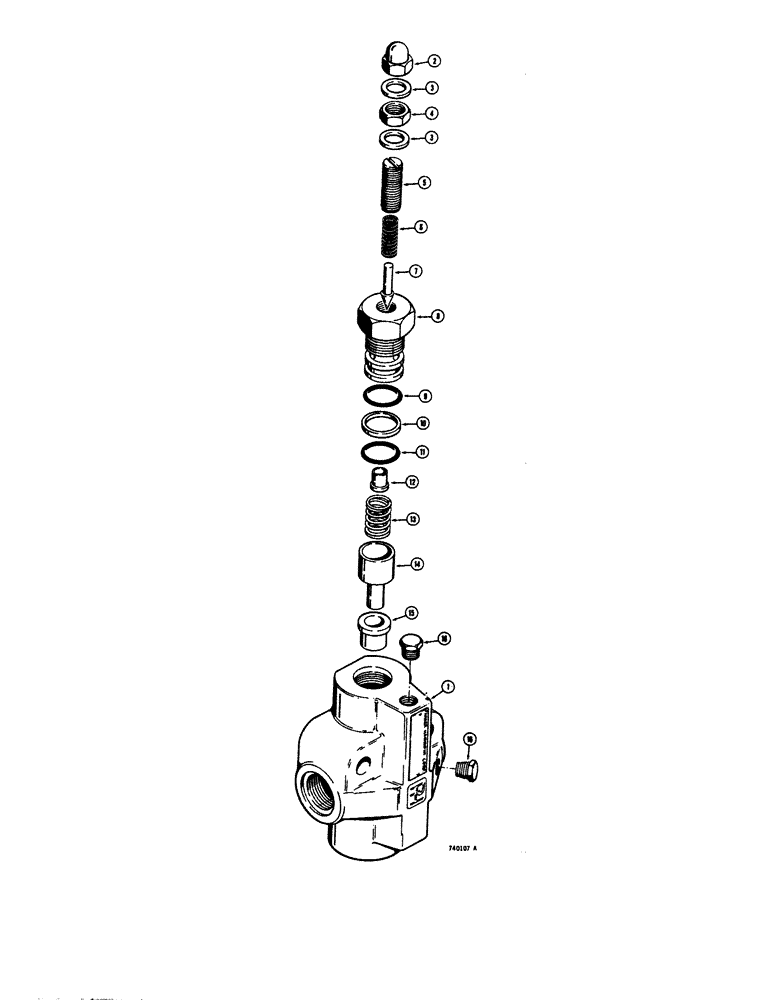

Запчасти Case 680E (332[1]) - L59641 HYDRAULIC RELIEF VALVE (35) - HYDRAULIC SYSTEMS

L59641

VALVE

ASSEMBLY - relief, hydraulic, Parker Hannifin No. VPRP5B-3-A-A-270, Includes Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

W12116

KIT

VALVE ASSEMBLY - relief, Includes Ref. 2 - 15

1шт.

2

129-514

CROWN NUT,Low, 5/16" - 24

- acorn

1шт.

3

D26270

WASHER, SEALING

SEAL - lock and acorn nut

2шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, 5/16" - 24 NF

1шт.

5

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - set

1шт.

6

D26268

SPRING

- pilot

1шт.

7

D26267

PLUNGER

- pilot

1шт.

8

D26262

CAP

- relief valve body

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- outer

1шт.

10

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - backup

1шт.

11

L30444

O-RING,0.521" ID x 0.661" OD

- inner

1шт.

12

D26266

SEAT

- pilot

1шт.

13

D26261

VALVE SPRING

SPRING - plunger

1шт.

14

L30687

SPOOL

POPPET ASSEMBLY - valve

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER - poppet

1шт.

NSS

NOT SOLD SEPARAT

SCREEN - poppet, order L30687

1шт.

W12133

RETAINER - snap ring

1шт.

15

D26259

SEAT

- relief valve plunger

1шт.

16

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, 1/8" NPT

2шт.
