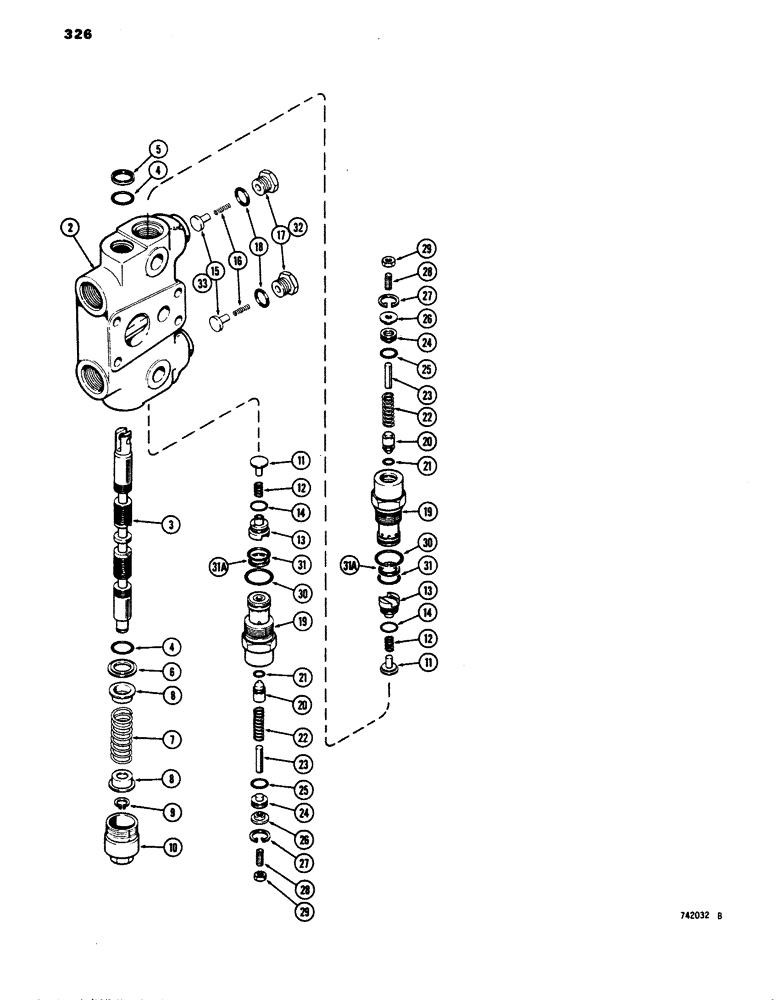

Запчасти Case 680E (326) - BACKHOE CONTROL VALVE, SWING SECTION (35) - HYDRAULIC SYSTEMS

1

G34658

VALVE

SECTION ASSEMBLY - swing, order G100192 section, Includes Ref. 2 - 33

1шт.

1

G34941

CYLINDER

SECTION ASSEMBLY - swing, order G100192 section, Includes Ref. 2 - 33

1шт.

1

G100192

ELEMENT

SECTION ASSEMBLY - swing, Includes Ref. 2 - 33

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - swing section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - swing section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool

1шт.

6

G33803

RETAINER

- body O-ring

1шт.

7

G34463

SPRING

- spool centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

RING snap, , retainer to spool #47, Ext

1шт.

10

P0033080G

SCREW

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check valve

2шт.

12

G33573

SPRING

- load check valve

2шт.

13

G33084

PLUG

- load check valve

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

15

G34456

VALVE POPPET

POPPET - anticavitation valve, 3/8" (9.5 mm) stem on poppet, G34658 section only, for service order G34937 plug and G34938 poppet, Refs. 32 and 33

2шт.

16

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve, free length

2шт.

17

G34457

PLUG

- anticavitation valve, 3/8" (9.5 mm) hole in plug G34658 section only, for service order G34937 plug and poppet, Refs. 32 and 33

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

G34657

VALVE

ASSEMBLY - relief, Includes Ref. 19 - 31A

2шт.

Part of Service Kit, P/N G34862

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

21

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

22

G33090

SPRING

- relief valve

1шт.

23

G34455

PIN

- stop, relief valve spring

1шт.

24

G33091

PISTON

- relief valve

1шт.

25

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston19 - 31A

1шт.

26

G33092

RETAINER

- relief valve

1шт.

27

G46150

SNAP RING,0.75", Int, #75

RING snap, 0.75", Int, #75

1шт.

28

178-630

SET SCREW,Hex Soc, 1/4"-20 x 3/4"

SCREW - set, piston adjusting, 1/4" - 20 NC x 3/4"

1шт.

29

25-144

JAM NUT,Jam, 1/4"-20, G5

- lock, 1/4" - 20 NC

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- valve body, large

1шт.

31

G100959

O-RING,0.744" ID x 0.879" OD

- valve body, small

1шт.

31a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used

1шт.

32

G34937

PLUG

- anticavitation valve, 15/32" (11.9 mm) hole in plug, G34941 and G100192 section only

2шт.

33

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve, 15/32" (11.9 mm) stem on poppet, G34941 and G100192 section only

2шт.

G34862

VALVE

KIT - service, relief valve, this kit will service either complete relief valve and includes Refs. 19 thru 31A

1шт.
