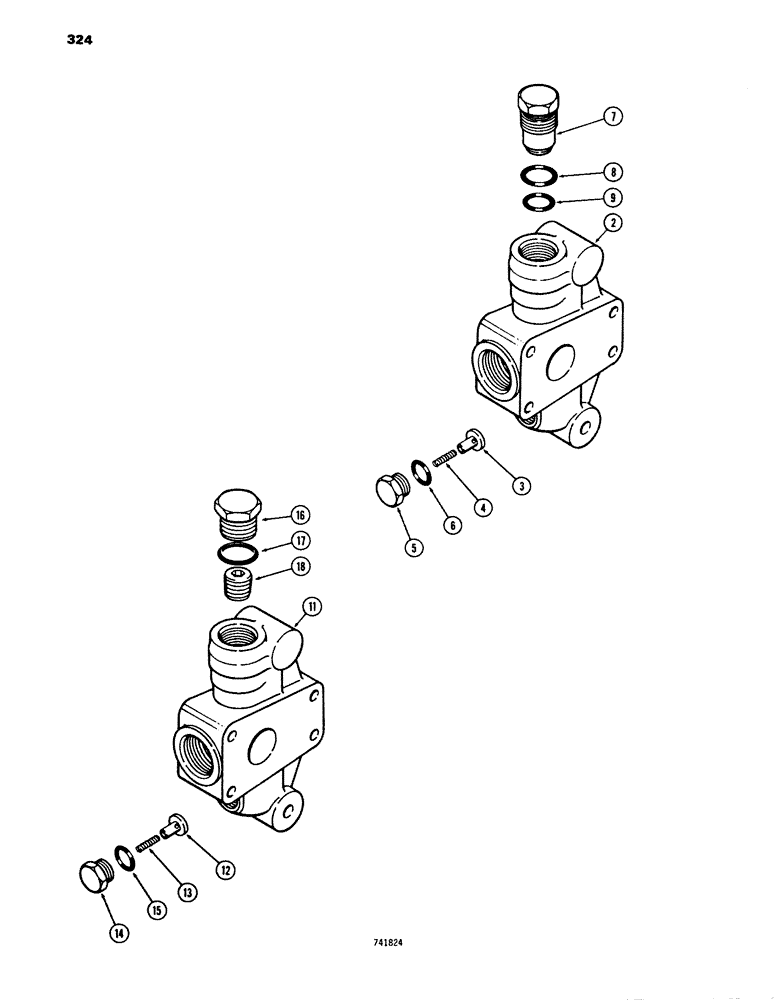

Запчасти Case 680E (324) - BACKHOE CONTROL VALVE, G34843 MID-INLET SECTION, G34895 (35) - HYDRAULIC SYSTEMS

1

G34843

MANIFOLD ASSEMBLY - mid-inlet section, not shown, Includes Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - manifold

1шт.

3

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - check valve

1шт.

4

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve

1шт.

5

G34937

PLUG

- check valve

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

G34844

PLUG

ASSEMBLY - manifold port, Includes Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG

1шт.

8

D39717

O-RING,1.051" ID x 1.191" OD

- upper

1шт.

9

G34846

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- lower

1шт.

10

G34895

X

MANIFOLD ASSEMBLY - mid-inlet section, not shown, Includes Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - manifold, mid inlet section

1шт.

12

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - check valve, mid inlet section

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve, mid inlet section

1шт.

14

G34937

PLUG

- check valve, mid inlet section

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, mid inlet section

1шт.

218-5159

PLUG,1-3/16" - 12 ORB

ASSEMBLY - manifold port, mid inlet section, Includes Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG, mid inlet section

1шт.

17

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, mid inlet section

1шт.

18

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, square socket head, 1/2" NPT, mid inlet section

1шт.
