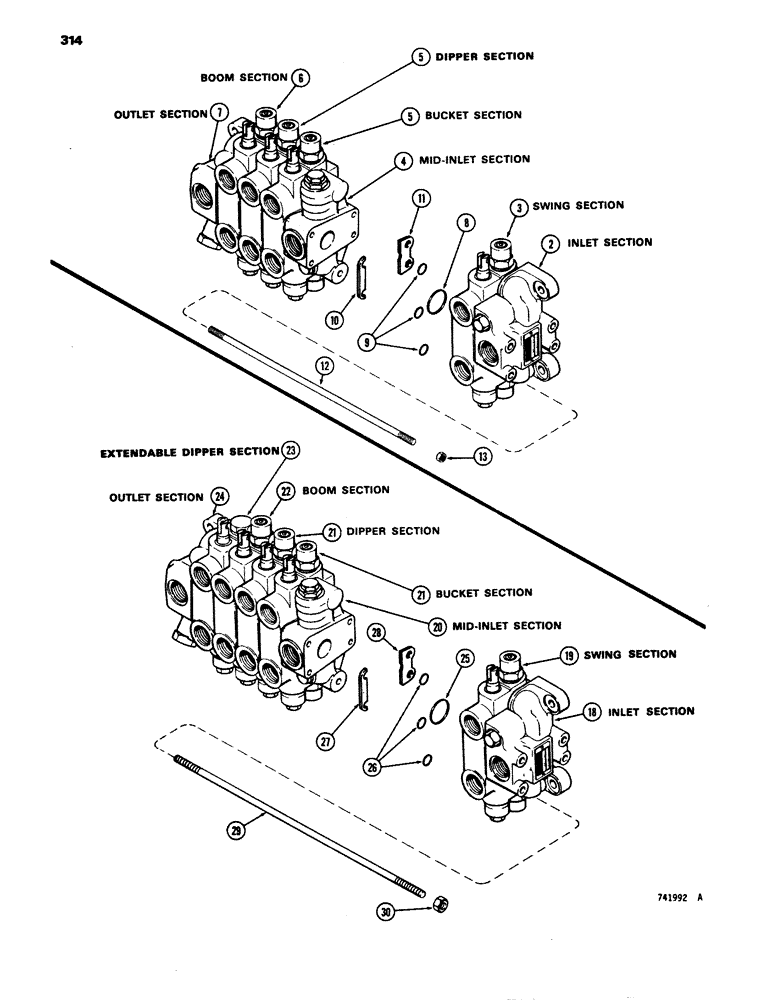

Запчасти Case 680E (314) - BACKHOE CONTROL VALVE, BACKHOE CONTROL VALVE, USED ON (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
G34669
VALVE
ASSEMBLY - control, 7 section valve, Includes: Ref. 2 - 13, Serial Range: -9121632
1шт.
1
G100191
LOCK VALVE
VALVE ASSEMBLY - control, 7 section valve, Includes: Ref. 2 - 13, Start Serial: 9121632
1шт.
2
G33102
MANIFOLD
INLET SECTION - see figure 316
1шт.
3
REF
INSTRUCTION
SWING SECTION - see figure 326
1шт.
4
REF
INSTRUCTION
MID - INLET SECTION - see figure 324 for proper section
1шт.
5
REF
INSTRUCTION
BUCKET & DIPPER SECTIONS - see figure 318
2шт.
6
REF
INSTRUCTION
BOOM SECTION - see figure 320
1шт.
7
G33108
MANIFOLD
OUTLET SECTION - see figure 316
1шт.
8
G34001
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
- section ports
6шт.
9
G34000
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
- section ports
18шт.
10
G33964
SHIM,.002" Thk
Section, Top (0.05 mm) .002" Thk
6шт.
11
G33965
SHIM,22.86mm OD x 0.06mm Thk
Section, Bottom (.002") 0.051mm Thk
6шт.
12
G34675
TIE-ROD
ROD - tie, valve sections
4шт.
13
25-106
NUT,3/8"-16, G5
- hex., 3/8" - 16 NC
8шт.
17
G34670
VALVE
ASSEMBLY - control, 8 section valve, Includes: Ref. 18 - 30, Serial Range: -9121632
1шт.
17
G100183
LOCK VALVE
VALVE ASSEMBLY - control, 8 section valve, Includes: Ref. 18 - 30, Start Serial: 9121632
1шт.
18
G33102
MANIFOLD
INLET SECTION - see figure 316
1шт.
19
REF
INSTRUCTION
SWING SECTION - see figure 326
1шт.
20
REF
INSTRUCTION
MID-INLET SECTION - see figure 324 for proper section
1шт.
21
REF
INSTRUCTION
BUCKET & DIPPER SECTIONS - see figure 318
2шт.
22
REF
INSTRUCTION
BOOM SECTION - see figure 320
1шт.
23
REF
INSTRUCTION
EXTENDABLE DIPPER SECTION - see figure 328
1шт.
24
G33108
MANIFOLD
OUTLET SECTION - see figure 316
1шт.
25
G34001
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
- section ports
7шт.
26
G34000
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
- section ports
21шт.
27
G33964
SHIM,.002" Thk
Section, Top (0.05 mm) .002" Thk
7шт.
28
G33965
SHIM,22.86mm OD x 0.06mm Thk
Section, Bottom (.002") 0.051mm Thk
7шт.
29
G33124
BOLT
ROD - tie, valve sections
4шт.
30
25-106
NUT,3/8"-16, G5
- hex., 3/8" - 16 NC
8шт.
Выбрано товаров: 29
