Запчасти Case 680E (312) - D62348 STABILIZER CONTROL VALVE (35) - HYDRAULIC SYSTEMS

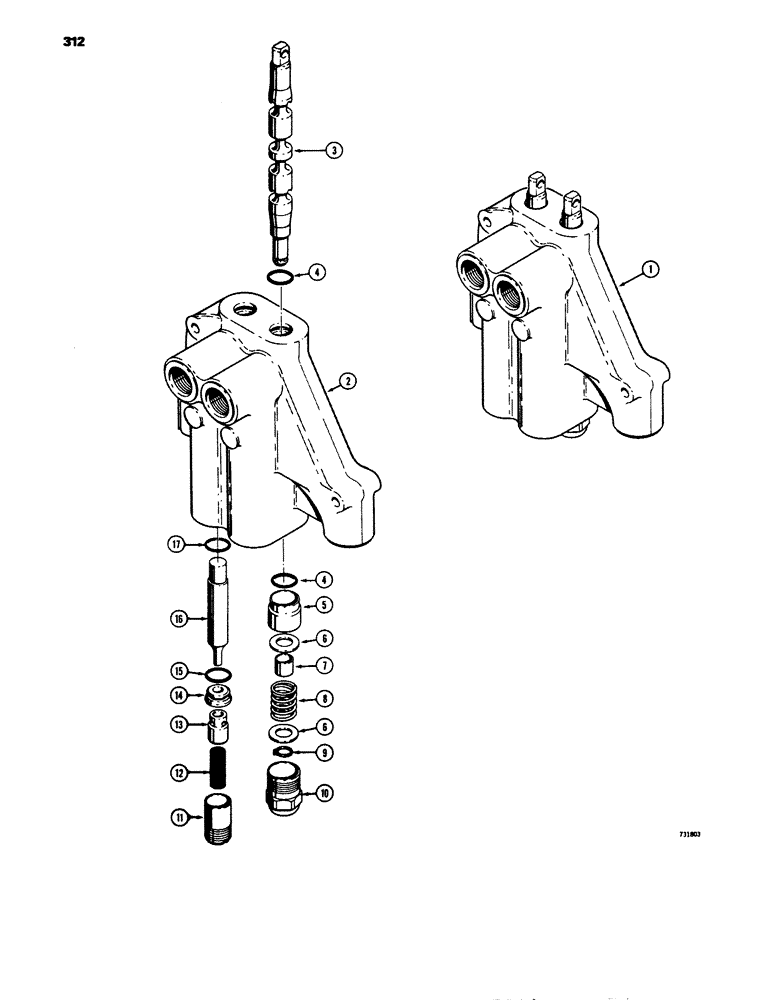

Схема запчастей Case 680E - (312) - D62348 STABILIZER CONTROL VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

D62348

VALVE

ASSEMBLY - stablizer control, Cessna No. 39042-AAE, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

4

D56443

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- valve spool

4шт.

5

D56439

BUSHING

- valve spool

2шт.

6

F8235

WASHER

- spring retainer

4шт.

7

D56909

BUSHING

SPACER - spring

2шт.

8

D56445

SPRING

- spool return

2шт.

9

A27020

RING

- retaining, washer

2шт.

This is part nbr F35196 cap.

1шт.

11

D59653

PLUG

- spring retainer

2шт.

12

D56444

SPRING

POPPET - valve

2шт.

14

D56455

SEAT

- plunger

2шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

2шт.

16

D59655

PISTON

PLUNGER - valve

2шт.

17

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plunger

2шт.

Выбрано товаров: 16
