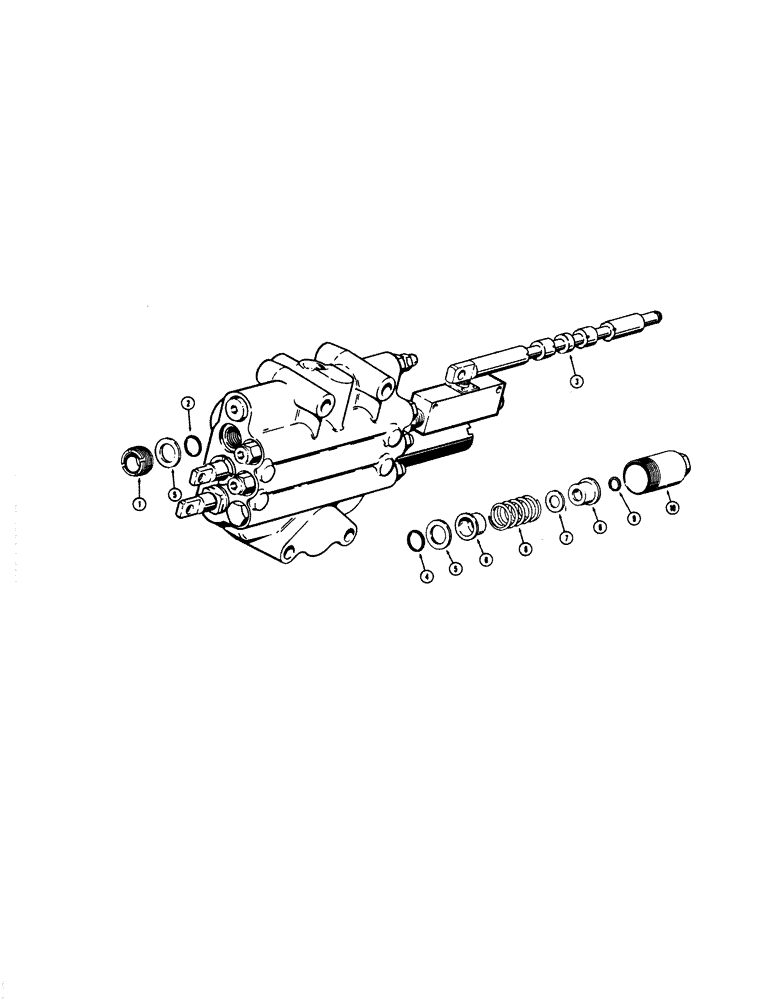

Запчасти Case 680E (308) - LOADER CONTROL VALVE, CLAM SPOOL, MAIN RELIEF VALVE (35) - HYDRAULIC SYSTEMS

D52300

SPOOL ASSEMBLY - clam, Includes: Ref. 1 - 10

1шт.

1

L30744

GLAND

AND WIPER - spool

1шт.

2

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - clam control

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool

1шт.

5

A14535

RETAINER

- O-ring

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25286

WASHER

- centering spring

1шт.

8

A25285

SPRING

- spool return

1шт.

9

A27020

RING

- retaining

1шт.

10

A14529

CAP

- spool

1шт.
