Запчасти Case 680E (302) - LOADER CONTROL VALVE, LIFT SPOOL, BEFORE TRACTOR SN 9118604 (35) - HYDRAULIC SYSTEMS

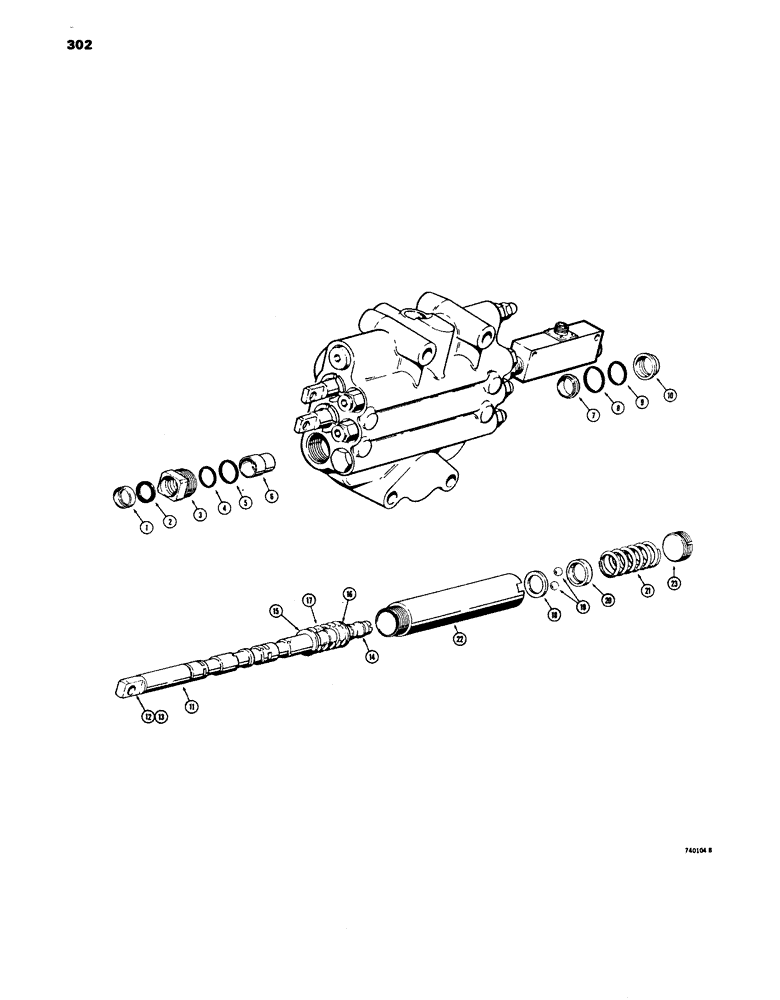

Схема запчастей Case 680E - (302) - LOADER CONTROL VALVE, LIFT SPOOL, BEFORE TRACTOR SN 9118604 (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

L36037

SPOOL ASSEMBLY - lift, Includes: Ref. 1 - 23

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

GLAND - spool

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- gland, small

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- gland, large

1шт.

6

D37076

SLEEVE

- spool, lug end

1шт.

7

D33857

RETAINER

- O-ring

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- housing, large

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool, small

1шт.

10

D33856

RETAINER

- O-ring

1шт.

11

L36052

SPOOL

- lift

1шт.

12

E88928

EYE

- spool

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, spool eye

1шт.

14

L30453

STUD

- detent

1шт.

15

A16879

SPACER

RETAINER - spring, at spool

1шт.

16

A16881

SEAT

RETAINER - spring, at stud

1шт.

17

L36053

VALVE SPRING

SPRING - centering

1шт.

18

L30455

WASHER

- detent

1шт.

19

211-8

BALL,9/32" Dia

- detent (Replaces 211-11) 9/32" Dia

8шт.

20

L30456

CAM

- detent

1шт.

21

L36054

VALVE SPRING

SPRING - detent

1шт.

22

L30454

CAP

- valve, detent

1шт.

23

L30458

PLUG

- detent adjustment

1шт.

Выбрано товаров: 24
