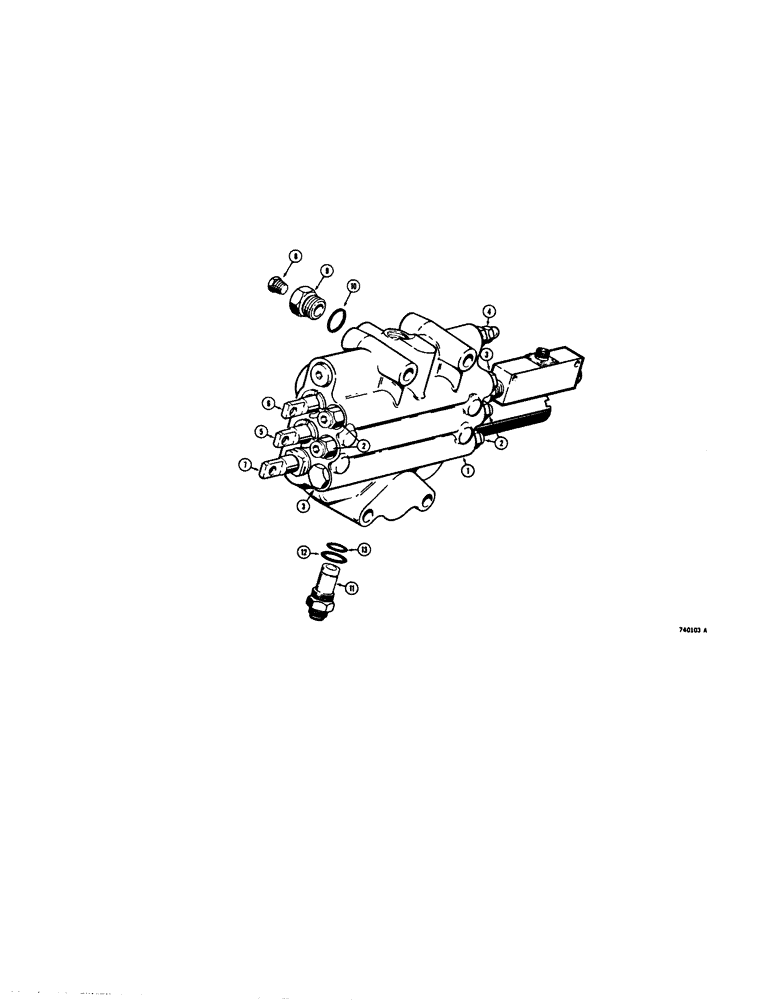

Запчасти Case 680E (300[1]) - L71839 LOADER CONTROL VALVE (3 SPOOL) (35) - HYDRAULIC SYSTEMS

1

L71839

LOCK VALVE

VALVE - loader control, 3 spool, tractor sn. 9118604 and after, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list figure 310

4шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check, parts list figure 310 (1)

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list figure 308

1шт.

5

L36036

VALVE

SPOOL - tilt with magnetic detent, parts list figure 306

1шт.

6

D52300

SPOOL - clam, without magnetic detent, parts list figure 308

1шт.

7

D71232

SPOOL

- lift, parts list figure 304

1шт.

8

221-662

PLUG,Hex Hd, 1/4"-18

- pressure check adapter

1шт.

9

D38825

ADAPTER

- pressure check, Includes: Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

11

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 12 and 13

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector, large

1шт.

13

L32680

RING

O-RING - connector, small

1шт.

Components for new valves will service

1шт.

Components for old valves when available.

1шт.
