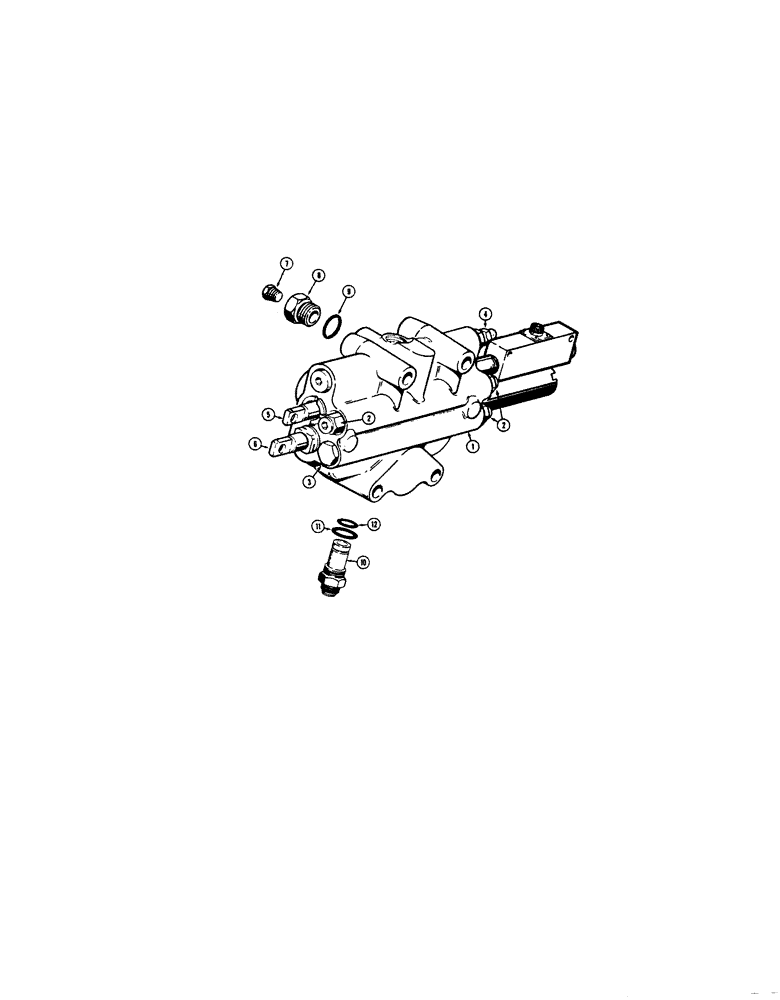

Запчасти Case 680E (298) - L55009 LOADER CONTROL VALVE (2 SPOOL), L55010 LOADER CONTROL (35) - HYDRAULIC SYSTEMS

1

L55009

VALVE

- loader control, 2 spool, before tractor sn. 9118604, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list figure 310

3шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check, parts list figure 310

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list figure 308

1шт.

5

L36036

VALVE

SPOOL - tilt with magnetic detent, parts list figure 306

1шт.

6

L36037

SPOOL - lift, parts list figure 302

1шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

- pressure check adapter

1шт.

8

D38825

ADAPTER

- pressure check, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

10

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 11 and 12

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector, large

1шт.

12

L32680

RING

O-RING - connector, small

1шт.
