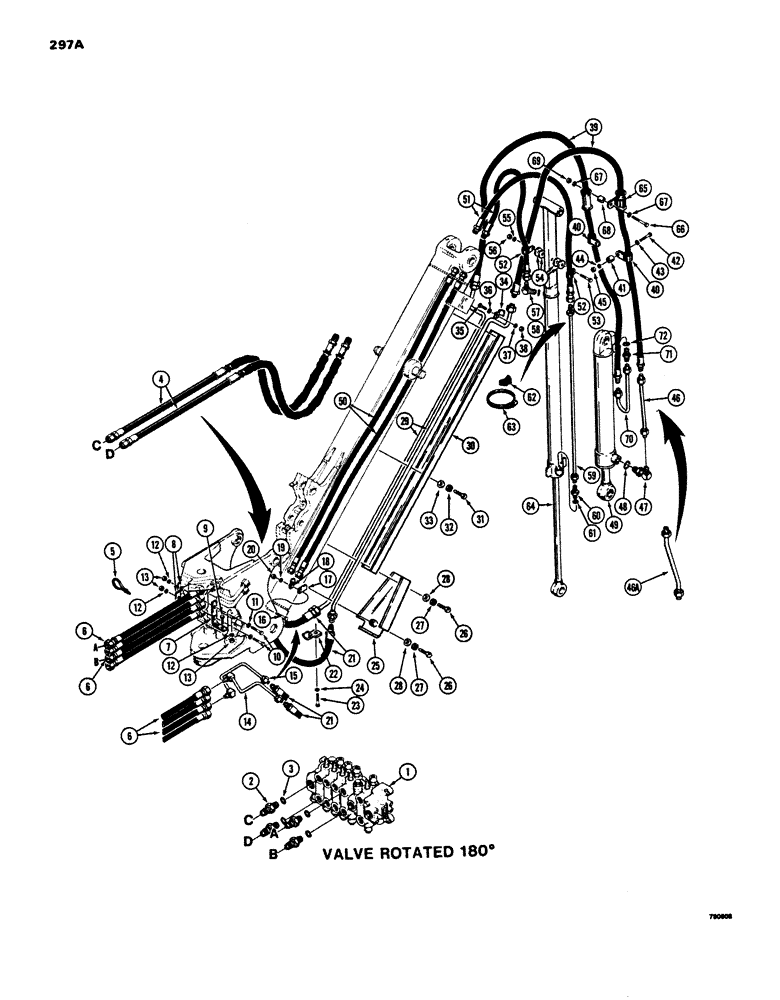

Запчасти Case 680E (297A) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT, TRACTOR SN. (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - backhoe, parts list figure 314

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

4

L77825

HOSE

- to extension cylinder, from backhoe valve to boom, 58" (1473 mm) long

2шт.

On models without extendable dipper, L77825 hoses are used as bucket cylinder circuit hoses, see Figure 290 for these hoses and hose clamps.

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose tie

1шт.

6

L55955

HOSE ASSY.

HOSE - to bucket cylinder, 26-1/2" (673 mm) long

2шт.

7

L78210

BRACKET - hose support

1шт.

8

D40236

CLAMP

- hose

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

14

L78383

TUBE,0.75" OD

- to bucket cylinder, R.H.

1шт.

15

L78385

TUBE,0.75" OD

- to bucket cylinder, L.H.

1шт.

16

13-633

HHCS - 3/8" - 16 NC x 2"

2шт.

17

L78192

SPACER

- tube

2шт.

18

L58147

CLAMP

- tube

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

L78508

HOSE

- to bucket cylinder, 27-1/2" (699 mm) long

2шт.

22

L58147

CLAMP

- hose

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

L78387

BLADE

GUARD - bucket tubes lower

1шт.

26

164-577

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 2 1/2"

SCREW - button head, hex socket

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

95-8

WASHER,1/2"

flat 1/2"

2шт.

29

L78415

TUBE,0.75" OD x 86.52, 18.23" L

- to bucket cylinder

2шт.

30

L79141

SHIELD

GUARD - bucket tubes

1шт.

31

164-573

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1 1/2"

SCREW - button head, hex socket, 1/2" - 13 NC x 1-1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

95-8

WASHER,1/2"

flat 1/2"

2шт.

34

L25930

CLAMP

- tube

2шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

39

L78165

HOSE

- to bucket cylinders, 98" (2489 mm) long

2шт.

40

D40471

CLAMP

- hose

2шт.

41

L14794

SPACER

-, Serial Range: hose-support

2шт.

42

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

43

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

45

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

46

L77131

TUBE,0.75" OD x 19.92, 1.75" L

- bucket cylinder, rod end

1шт.

46a

L100128

TUBE,0.79" OD

- bucket cylinder, rod end, models with dual lever controls only, if used

1шт.

47

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, 90 deg., Incl. Ref. 48

1шт.

48

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

49

REF

INSTRUCTION

CYLINDER - bucket, see figure 366

1шт.

50

L58822

HOSE

- to extension cylinder, 107" (2718 mm) long

2шт.

On models without extendable dipper, L58822 hoses are used as bucket cylinder circuit hoses, see Figure 290 for hose clamps and hose guards used with these hoses.

1шт.

51

L76819

HOSE ASSY.,0.50" ID x 24.00", SAE 100R2

HOSE ASSY, , To Extension Cylinder 0.50" ID x 24.00", SAE 100R2

2шт.

52

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

2шт.

53

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

2шт.

54

F12215

WASHER

- spacer

4шт.

55

92-6

LOCK WASHER,3/8"

1шт.

56

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 deg., male, Includes: Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

59

L54652

TUBE

- extension cylinder

1шт.

60

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, Incl. Ref 61 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

61

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

62

D38648

BLOCK

SPACER - tube, rubber

1шт.

63

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adjustable

1шт.

64

REF

INSTRUCTION

CYLINDER - extension, parts list figure 368 or 370

1шт.

65

D40471

CLAMP

- hose

2шт.

66

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

67

195-2034

WASHER,7/16" x 1 1/4" x .134"

SPACER - hose clamp

2шт.

69

131--652

NUT - hex, self lock, 3/8" - 16 NC

2шт.

70

L58142

TUBE

- bucket cylinder, closed end

1шт.

71

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref.

1шт.

72

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.
